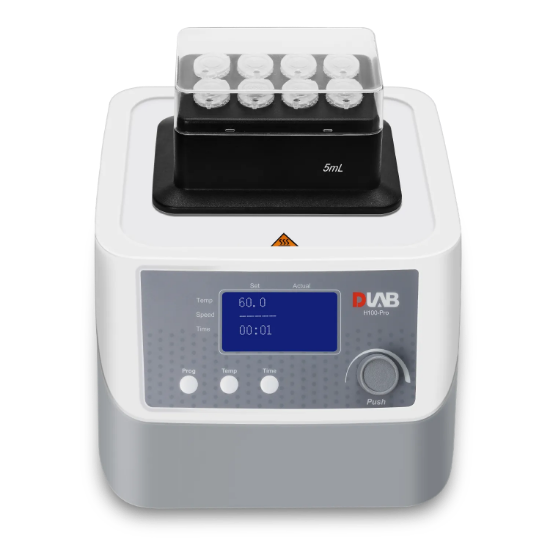

Picture of H100-Pro LCD digital Thermo Mix, with Touch operation (Magnetic) 5062101311

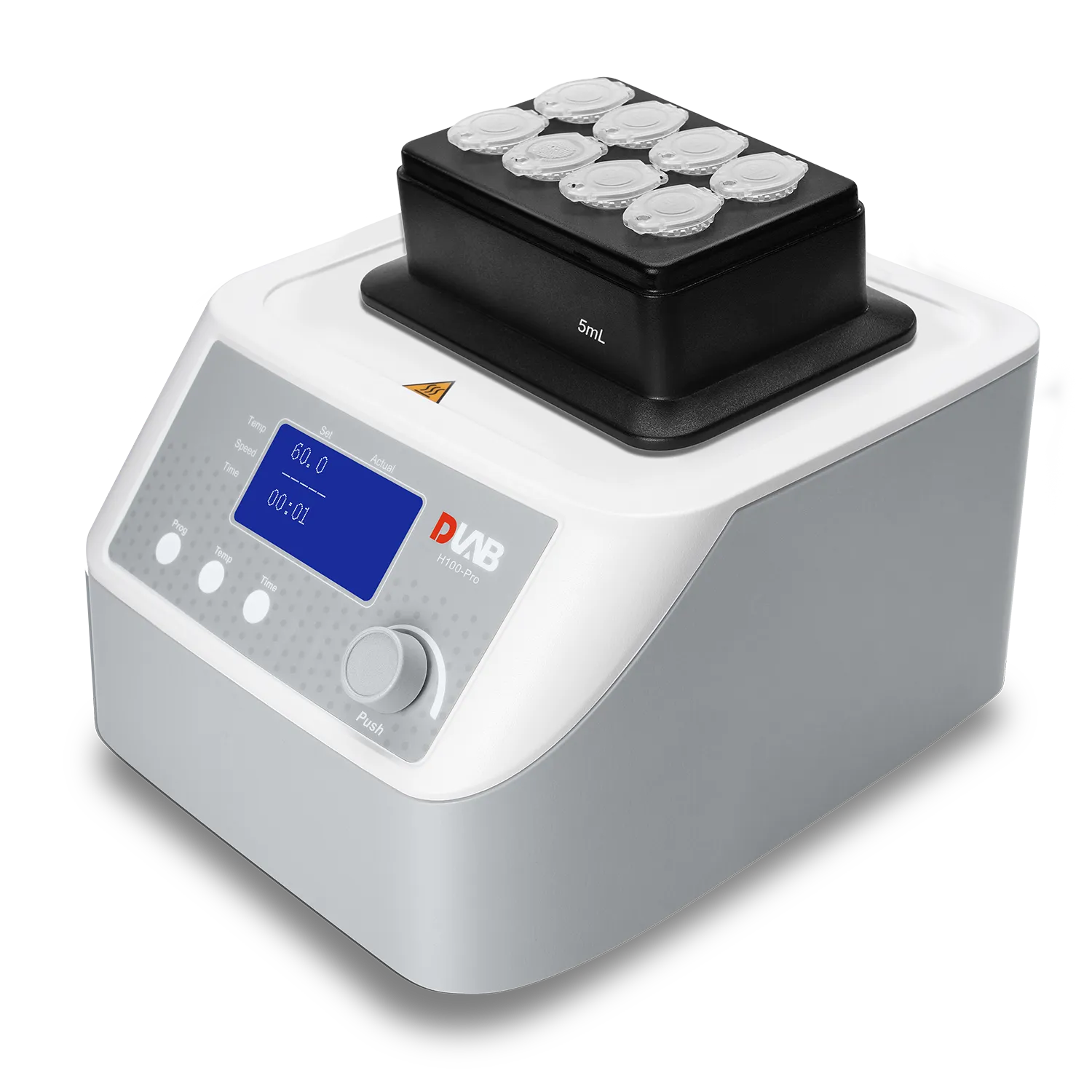

Picture of H100-Pro LCD digital Thermo Mix, with Touch operation (Magnetic) 5062101311

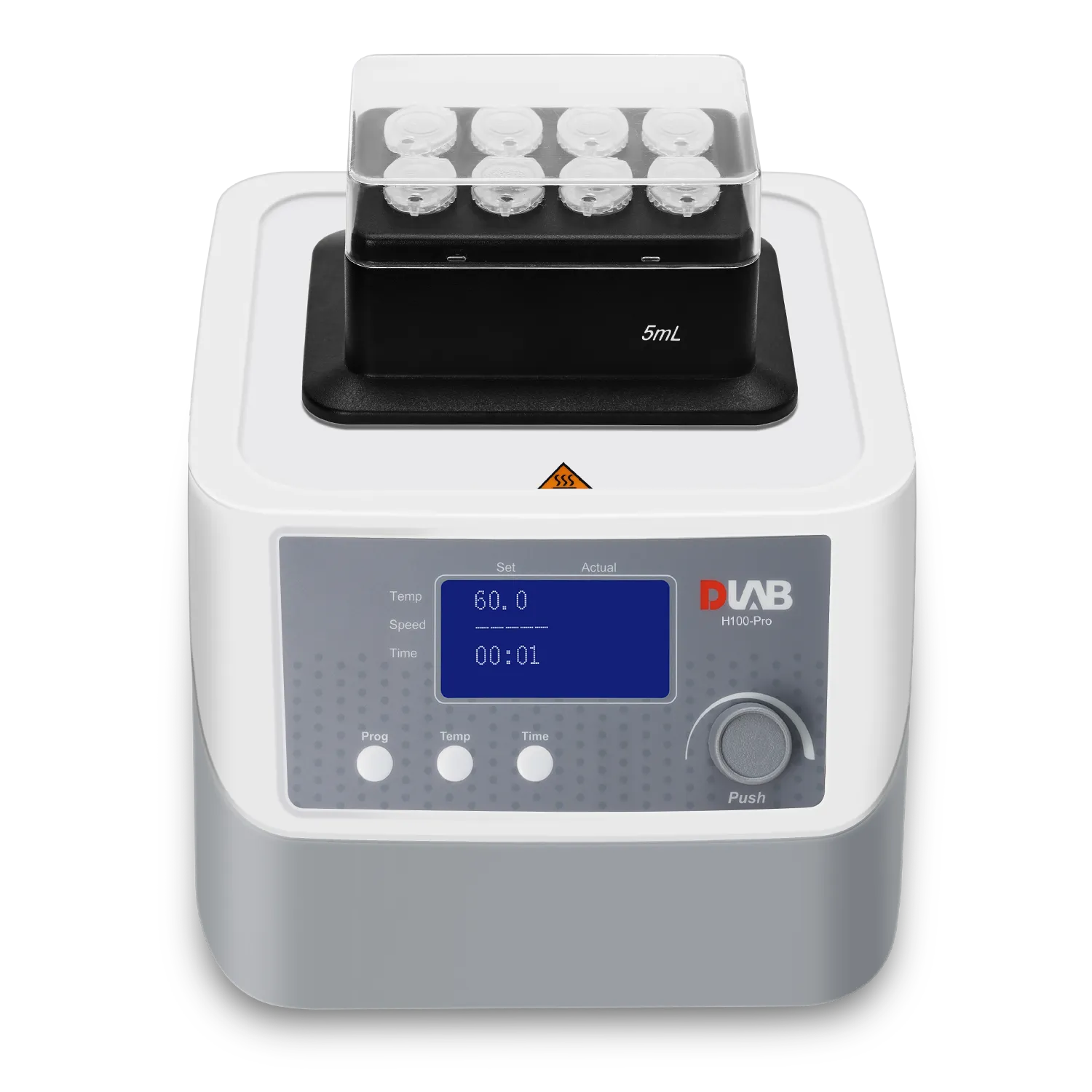

Picture of H100-Pro LCD digital Thermo Mix, with Touch operation (Magnetic) 5062101311

H100-Pro LCD digital Thermo Mix, with Touch operation (Magnetic) 5062101311

H100-Pro LCD digital Thermo control with heating, with 1pcs heating block for free (select a size)

SKU: 5062101311

Manufacturer: Dragon Lab

H100-Pro Thermo Control（Magnetic）

Customizable user setting program with up to 6 sequential steps
Temperature calibration function inbuilt for users
Magnetic heat block mounting eliminating need of any tools
Interchangeable sample blocks designed to provide versatility, easy cleaning and disinfecting
Accurate temperature control of each heating block with lid to minimize the heat loss

Specifications	H100-Pro
Functions	Heating
Temperature range	Heating: room temp+5℃- 100°C
Temperature setting range specifications	15-100℃
Temperature control accuracy	± 0.5°C
Temperature uniformity	Max.± 0.5°C
Max. heating rate	5.5°C/min
Time setting range	0~99h30min
Display	TFT
Program	9
Overheating protection	150°C
Adapter block material	aluminum
Voltage, Frequency	DC12V,100–240V,50/60Hz
Power	200W
Dimension [D×W×H] ( without the heating block )	200×235×120mm
Weight	7.3kg

Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Black
Cat. No.	P/N	Descriptions
18900401		Heating block, used for 0.5mL tubes, 24 holes
18900402		Heating block, used for 1.5mL tubes, 24 holes(cone bottom)	Replaced 18900448
18900403		Heating block, used for 2mL tubes, 24 holes( round bottom)	Replaced 18900450
18900404		Heating block, used for 5mL tubes, 8 holes
18900405		Heating block, used for 5mL tubes, 8 holes, cone bottom	Replaced 18900466
18900406		Heating block, used for 15mL tubes, 8 holes
18900407		Heating block, used for 50mL tubes, 4 holes	Replaced 18900456
18900420		Heating block, used for 0.2ml/96 well PCR plate
18900423		Heating block, used for 96/384 microplate
Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Gray
Cat. No.	P/N	Descriptions
18900446		Heating block, used for 0.5mL tubes, 24 holes
18900452		Heating block, used for 5mL tubes, 8 holes
18900422		Heating block, used for 0.2ml/96 well PCR plate
18900425		Heating block, used for 96/384 microplate
