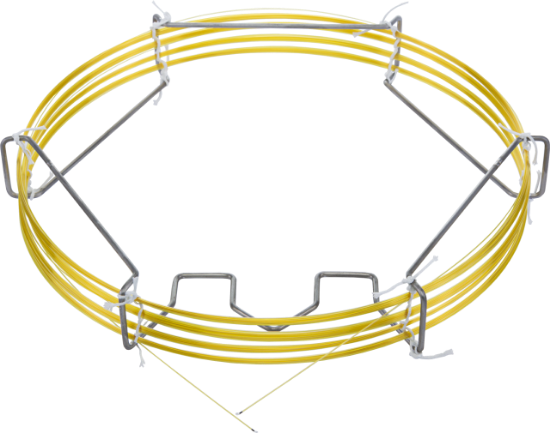

FS-column HYDRODEX ß-3P, 0.25 mm ID,25 m 723358.25

FS capillary column HYDRODEX BETA-3P ID: 0.25 mm, length: 25 m
SKU: 723358.25
Manufacturer: Machery Nagel



Capillary columns for GC enantiomer separation. HYDRODEX cyclodextrin phases are made of cyclic oligosaccharides consisting of seven (β-cyclodextrin) or eight (γ-cyclodextrin) glucose units bonded through α-1,4-linkages. Regioselective derivatization of the hydroxyl groups leads to phases with varying enantioselectivity, which are well suited for chiral analyses. Due to the high melting point of the HYDRODEX phases they are diluted with polysiloxanes. Important advantage of cyclodextrin phases - many compounds can be analyzed without derivatization (however, for certain substances enantioselectivity can be favorably influenced by formation of derivatives). A large number of separations have been achieved, however, it is not possible to make a general prediction, which phase could solve a given separation task. Even for compounds with small structural differences or within homologous series the enantiodifferentiation can be quite different.

Hazardous materialNo
MethodGas chromatography (GC)
TypeGC column
BrandHYDRODEX
PhaseHYDRODEX BETA-3P
CompositionHeptakis-(2,6-di-O-methyl-3-O-pentyl)-β-cyclodextrin
USP listingNot available or proprietary
PolarityNot available or proprietary
Column inner diameter0.25 mm
Film thicknessNot available or proprietary
Column length25 m
Recommended application(s)1,2-epoxyalkanes, Allenes, Carboxylic acids, Chiral, enantiomers, Dienes, Gas chromatography, GC, Hydroxycarboxylic acid esters, Pesticides, Pharmaceuticals, Terpene alcohols, Terpenes
Tmax isotherm230 °C
Tmax temp. program250 °C
Housing typeWall coated open tubular (WCOT) capillary column; internal wall of capillary is coated with a very fine film of liquid stationary phase
HardwareFused Silica coated with polyimide coiled/wound on metal cage
Cage size7" (inch)
Integrated precolumnNo
Storage temperatureRT
Scope of delivery1x GC column coiled/wound on metal cage, user manual, certificate of analysis



Attribute nameAttribute value
TypeGC column
PhaseHYDRODEX
Diameter0.25mm
Length25m
