Freezing Box Accessories, Ice Free Freezing Block, -18℃~4℃, 1/pk, 1/cs 200903

Freezing Box Accessories, Ice Free Freezing Block, -18℃~4℃, 1/pk, 1/cs

SKU: 200903

Manufacturer: Nest

Pack Size: 1

Cat.No.	Name	Size（mm）	Weight（g）	Application

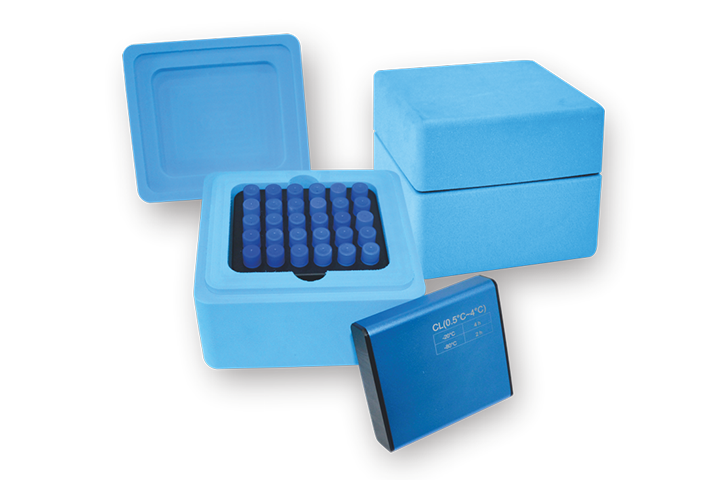

200103	Non-ice Box	152x170x123	1300	200901, One Ice Free Cool Box 200902, One Cooling Core 200904, One 2 mL Module
200901	Non-ice Box	152x170x123	140	Free of ice core and modules, various refrigeration sources and modules are available

Temperature Range	Cooling source	Cooling Source Dispose	Module processing	Holding time (open)	Holding time (close)	Schematic diagram of heat preservation time
0.5℃~4℃	200902 Cold core	Put in minus 20 ℃ more than 4 hours, at indoor temperature placed 10 minutes before use.	Precooling to 0.5℃~4℃	4h	6h
0.5℃~4℃		Put in minus 20 ℃ more than 4 hours,direct use.	Indoor temperature
0.5℃~4℃		Put in minus 80 ℃ more than 4 hours,direct use.	Indoor temperature
-18℃~-4℃	200903 Frozen core	Put in minus 20 ℃ more than 6 hours,	Precooling in -20℃ half an hour	3h	4h
-18℃~-4℃	200903 Frozen core	Put in minus 80 ℃ more than 3 hours,	Precooling in -20℃ half an hour	3h	4h
-78℃~-30℃	Pieces of dry ice	About 200g is directly put into the bottom of the box	Put the indoor temperature module directly	4h	5h

Cat.No.	Name	Temperature Range	Ultra cold storage freezer temperature	Freezing time	Size（mm）

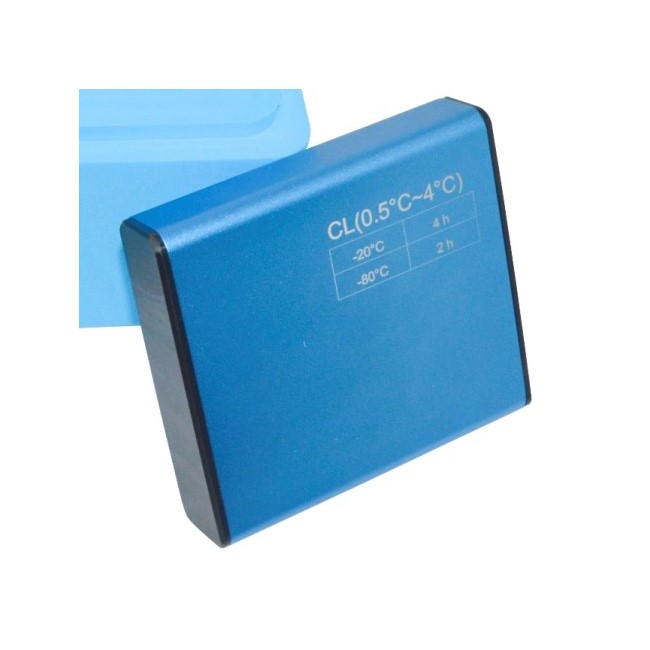

200902	Cold core	0.5℃~4℃	-20℃	4h+	105 x 100 x 26
200902	Cold core	0.5℃~4℃	-80℃	2h+	105 x 100 x 26
200903	Frozen core	-18℃~-4℃	-20℃	6h+	105 x 100 x 26
200903	Frozen core	-18℃~-4℃	-80℃	3h+	105 x 100 x 26

Cat.No.	Name	Size（mm）	Application
200904	2ml module	11910138	2 mL Tube (30-Well, φ12.6mm)
200905	1.5ml module	11910138	1.5 mL Tube (48-Well, φ11mm)
200906	5ml module	11910138	5 mL Tube (30-Well)
200907	PCR module	11910138	PCR Tube or 96-Well Plate (φ7mm)

Attribute name	Attribute value
Pack Size	1
