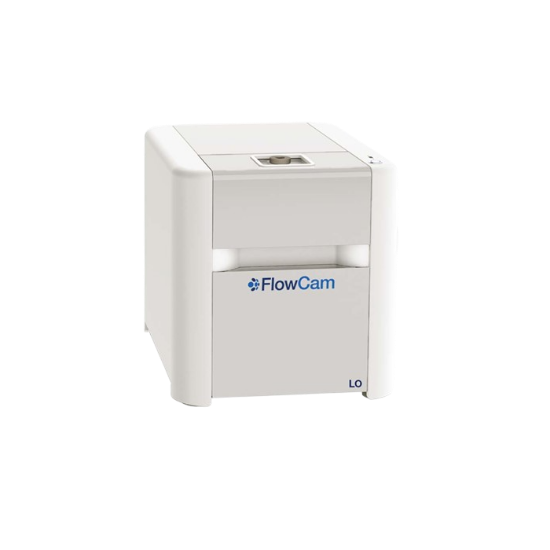

FlowCam LO, Flow Imaging Microscopy with light obscuration

FlowCam LO
Innovative particle characterization with FlowCam LO combines flow imaging microscopy (FIM) and light obscuration (LO) into a single analytical solution.

Beyond the compendial light obscuration method to fulfill USP <787> and <788> requirements, flow imaging microscopy provides an orthogonal method for quality control of subvisible particulate matter.

Benefits

• Perform both flow imaging and light obscuration measurements sequentially in the same instrument
• Obtain compendial particle sizing and counting according to USP <787> and <788>
• Acquire statistically significant results in less than a minute, with as little as 100 μL of sample
• Monitor and control particulates in your formulations

Specifications

• Particle size range: 2 μm to 70 μm; Flow imaging module: 10x (~100x magnification)
• Minimum sample volume: 100 μL
• Sample flow rate: 0.2 mL/minute
• Camera type: High resolution (1920 x 1200 pixels) CMOS, monochrome
• Solvent compatibility: wide range of aqueous and organic fluids, including high-viscosity solvents and buffers
• Ease of use instrumentation & fully integrated VisualSpreadsheet software with optional VisualAI software module
