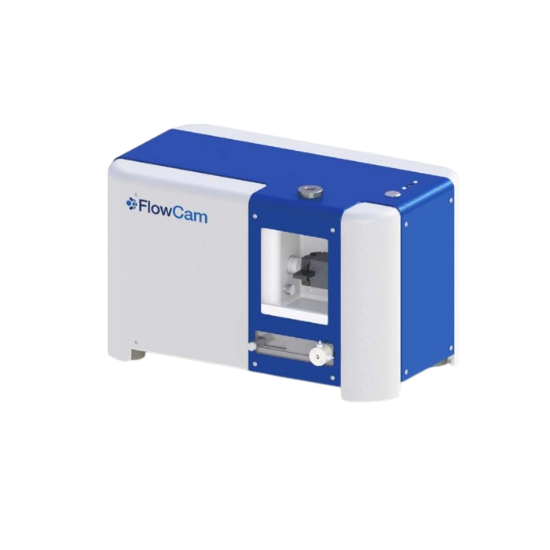

FlowCam 5000, Flow Imaging Microscopy

FlowCam 5000 is a flow imaging microscopy instrument targeted to your specific needs for a wide range of applications. Its compact footprint allows for flexible use in a variety of settings. Accommodate small to large sample volumes for routine and specialized particle shape analysis, monitoring, and research.

Experience superior image quality and image-based measurements that yield statistically relevant data.

Benefits

• Automate your data collection with a fast, accurate, and easy-to-use alternative to manual microscopy
• Analyze tens of thousands of particles per minute
• Go beyond size and count to analyze shape and type of your particles
• Correlate morphology information with material performance
• Characterize microparticles with as little as 250 µL of sample
• Save time and resources with an instrument optimized for your application

Specifications

• Particle size range: 3 μm to 300 μm
• Magnification: Single objective (Select 4X or 10X or 20X), manual focus
• Minimum sample volume: 250 μL
• Sample flow rate: up to 1 mL/min, configuration specific
• Camera type: High resolution (1920x1200 pixels) CMOS. Color.
• Easy-to-use instrument with fully integrated VisualSpreadsheet software
