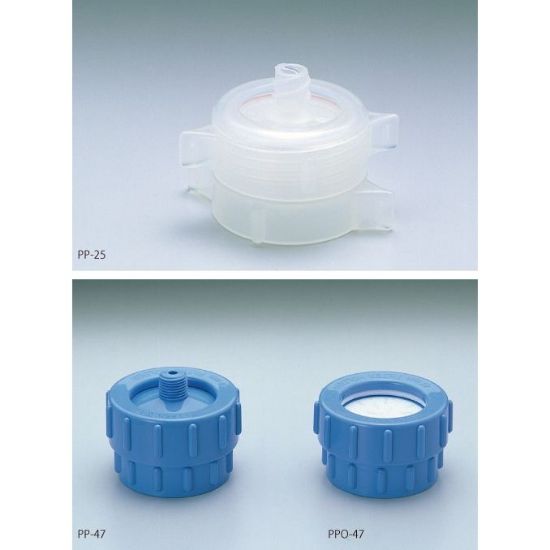

Filtration Equipment PP 47 Filter Holder 43303020

PP-25

PP-47

PPO-47

Materials:

Body and support screen

Polypropylene

O-rings (standard)

Silicone

Silicone/PTFE

Connections:

Inlet

Female Luer-Lock

Combination 1/4" NPTM, Female Luer slip

Open Face

Outlet

Male Luer slip

Combination 1/4" NPTM, Female Luer slip

Combination 1/4" NPTM, Female Luer slip

Pressure:

Maximum operating

0.29 MPa (42 psi)

0.49 MPa (71 psi)

-

Temperature:

Maximum operating

80°C (176°F)

Autoclave

121°C (250°F), 15 psi, 20 min slow exhaust only

Filter Specifications:

Filter size

25 mm

47 mm

Prefilter size

21 mm

42 mm

-

Filtration area

3.5 cm2

13.5 cm2

Recommended volume

<50 mL

Up to 1 liter

-

Dimensions:

Diameter

30 mm (1.2")

65 mm (2.6")

Height

30 mm (1.2")

50 mm (2.0")

40 mm (1.6")

Weight:

0.41 oz (12g)

1.2 oz (47g)

1.4 oz (40g)
