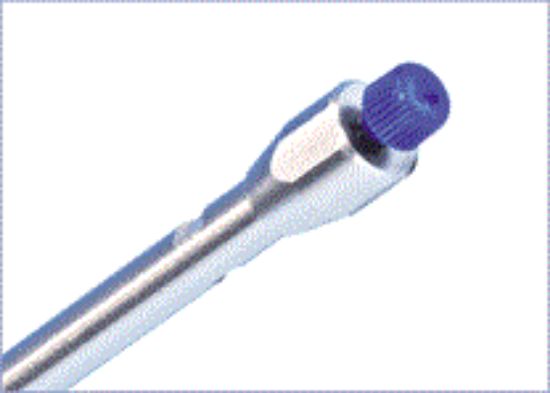

HPLC Column EC 4/3 NUCLEODUR 300-5 C4 ec, 3p 761989.30

Macherey-Nagel MN Nucleodur EC 4/3 NUCLEODUR 300-5 C4 ec, 3p 4X3mm
SKU: 761989.30
Manufacturer: Machery Nagel

For protection of your main HPLC column from contamination, it is recommended to use guard columns. These short columns are placed into a guard column holder. The guard column holder in combination with a guard column inside is installed between the injector and the HPLC column. This installation prevents chemical impurities to reach the main column. Because a contamination could form an irreversible bond with the column packing material (stationary phase) and this can result in shorter column life. If you want to prolong the lifetime of your main column, then these short columns can help you.

MethodHPLC, analytical
BrandNUCLEODUR
Base materialNUCLEODUR - high purity silica
PhaseNUCLEODUR C4 ec 300-5
USP listingL26
Surface chemistryMedium density monomeric butyl (C4) wide-pore modification
ModeReversed phase (RP)
TypeEC HPLC guard column (analytical)
HardwareStainless steel
Column length4 mm
Column inner diameter3 mm
Particle typeFully porous particles (FPP)
Particle shapeSpherical
Particle size5 µm
Eluent in HPLC columnAcetonitrile – water
Recommended application(s)Guard column, ideal protection for your main column, HPLC
EndcappedYes
Carbon content2.5 %
pH stability1.0–9.0
Pore size300 Å
Specific surface according to BET100 m²/g
Temperature stability (max)60 °C
Pressure stability (max)450 bar / 6525 psi
Storage temperature15–25 °C / 59–77 °F
Scope of delivery3x analytical HPLC guard columns
Gross weight (incl. packaging)23 g / 0.05 lbs
Packaging dimensions115 x 60 x 28 mm / 4.53 x 2.36 x 1.10 Inch
Hazardous materialNo
Attribute nameAttribute value
MethodHPLC, analytical
BrandNUCLEODUR
Phase300-5 C4 ec
Column Size4x3mm
Particle size5 µm
