EC 4/2 NUCLEODUR C18 Gravity-SB, 1.8 µm 761990.20

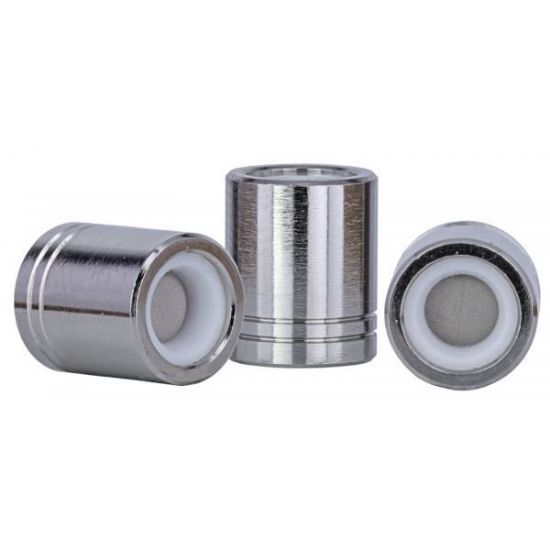

HPLC guard column EC 4/2 NUCLEODUR C18 Gravity-SB, 1.8 µm length: 4 mm, ID: 2 mm pack of 3 - require Column Protection System guard column holder (REF 718966) - for anayltical columns with 2 mm ID
SKU: 761990.20
Manufacturer: Machery Nagel





For protection of your main HPLC column from contamination, it is recommended to use guard columns. These short columns are placed into a guard column holder. The guard column holder in combination with a guard column inside is installed between the injector and the HPLC column. This installation prevents chemical impurities to reach the main column. Because a contamination could form an irreversible bond with the column packing material (stationary phase) and this can result in shorter column life. If you want to prolong the lifetime of your main column, then these short columns can help you.

Hazardous materialNo
MethodHPLC, protection
BrandNUCLEODUR
Base materialNUCLEODUR - high purity silica
PhaseNUCLEODUR C18 Gravity-SB
USP listingL1
Surface chemistryDistinct polar selectivity, Monomeric octadecyl (C18, ODS) modification with bulky side chains
ModeReversed phase (RP)
TypeEC UHPLC guard column (analytical)
HardwareStainless steel
Column length4 mm
Column inner diameter2 mm
Particle typeFully porous particles (FPP)
Particle shapeSpherical
Particle size1.8 µm
Eluent in HPLC columnAcetonitrile – water
Recommended application(s)Guard column, ideal protection for your main column, HPLC
EndcappedYes
Carbon content13.0 %
pH stability1.0–9.0
Pore size110 Å
Specific surface according to BET340 m²/g
Pore volume0.9 mL/g
Temperature stability (max)60 °C
Tmax (phosphate buffer)40 °C
Pressure stability (max)900 bar
Storage temperatureRT
Scope of delivery3x analytical HPLC guard columns



Attribute nameAttribute value
MethodHPLC, protection
BrandNUCLEODUR
PhaseC18 Gravity-SB
Column Size4x2mm
Particle size1.8 µm
