Laboratory Equipment EC 160 CO2 Incubator EC 160

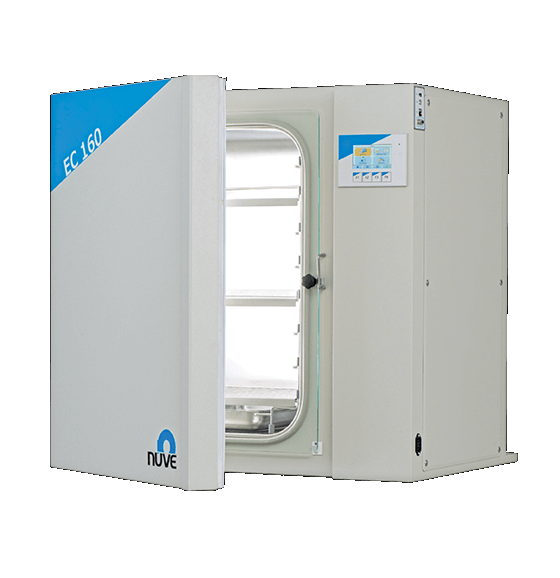

CO2 Incubator 160 Litres
SKU: EC 160
Manufacturer: Nuve



With its clean chamber conception of rounded corners, no crevices (even in the racking system) for contaminants to hide and with gentle air circulation, the EC 160 is designed to resist contamination and protect your valuable cultures. Fast temperature recovery, without any overshoot continues this substantial protection.

Comprehensive N-Smart™ control system keeps the user fully informed with display of set and actual parameter values. Should any alarm situation occur, a variety of alerts can be invoked. Optional AlerText™ will send a text message to you anywhere in the world and could include the NÜVE service support for fast response.

Wet disinfection by NüveDis™ ensures a clean chamber. Removing the shelves and racks (only 20 seconds!) permits use of the nUVeray™ ultra-violet option that can achieve sterilization in a very short time.

Chamber Volume: 160 liters
Temperature range: Ambient Temperature +7°C to 50°C
Temperature variation / fluctuation: ±0,3°C at 37°C / ±0,1°C
Programmable temperature alarm range: ±0,5°C to 5°C
Air jacketed heating system
RaPIDcell™ fast temperature recovery without overshoot
CO2 Range: 0 to 20% CO2
CO2 Variation / Fluctuation: ±0,3% / ±0,1%
Programmable CO2 alarm range:  ±0,5% to 5,0%
Infra-Red CO2 level control permitting frequent access
Ambient temperature sensor
Programmable microprocessor N-Smart™ control system
LifeCell™ control software to optimize parameters
Equipped with Wi-Fi connection
Password protected control system
4,3'' LCD colourful display for maximum information
5 languages option (Turkish, English, French, Spanish, Russian)
Full traceability by keeping the operating parameters digitally and
graphically in the memory
Colour changing error notification bar
Equipped with NuveCom™ communication unit
USB port to store the records on memory stick
World-wide access via ethernet port
Rapid support by sending e-mails with the details of the failure
RS 232 port for PC or AlerText™
Seamless stainless steel chamber with rounded corners
Clean chamber without any sensor inside
NüveDis™ 90°C wet disinfection system
Auto Zero for permanent accurate control
0.22 µm sterile filtration of CO2, sampled gases and Auto-Zero reference air
Typical 95% ± 5% RH to protect cultures against dehydration
Remote alarm outlet
Built-in 2nd stage gas regulator
Three shelves
Humidity tray
Int. Dim. (WxDxH): 500x460x700  mm
Ext. Dim. (WxDxH): 917x725x905 mm
230 V - 50 Hz



 FACTORY FITTED OPTION
EC 160HCable port (25  mm)

 OPTIONS
A 08 191AlerText™ GSM alarm module
K 13 009NuveWarn™ remote alarm system with 10 m. cable
A 08 143nUVeRay™ UV light sterilization kit

 ACCESSORIES
R 01 154Stainless steel shelf
A 08 146Stacking adaptor
A 08 147Support frame
A 08 148Roller base
F 06 0030,22 µm Biological filter (Spare)
R 11 007Single stage regulator for CO2 gas cylinder
A 08 149Gas changeover unit for two CO2 gas cylinders



EC 160 Brochure Download:


Attribute nameAttribute value
Volume In Litres160L
Incubator TypeCO2 Incubators
