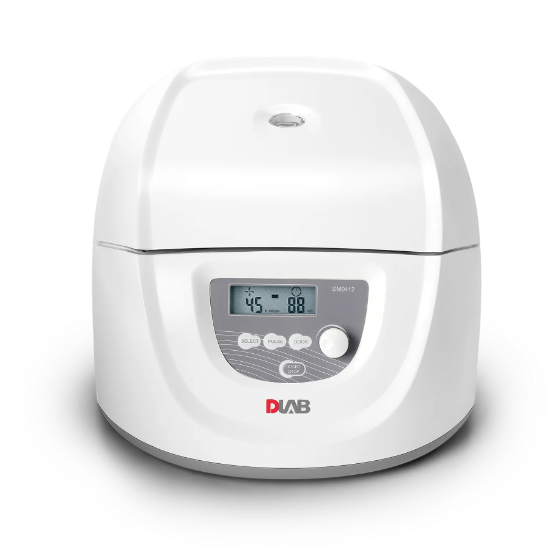

DM0412 Low Speed Centrifuge (A6-50P) 9034002125

Clinical Centrifuge, including A6-50P rotor plug(package contain in the box)

SKU: 9034002125

Manufacturer: Dragon Lab

DM0412 Low Speed Centrifuge

• Easy operation with intuitive menu and easy-to-read display

• Speed can be set in RPM/RCF

• Maintenance-free brushless DC motor

• Quick spin function with press and hold pulse key

• Lid with electric lock and automatic release function

• Automatic lid-lock release after running

• Braking time 2 steps adjustable only for A6-50P rotor

• High strength plastic rotor gives excellent balance to guarantee stable working

• Dual protection housing particularly benefit for safe running

• Gentle braking at low speeds with efficient separation

• CE marked, cTÜVus, and passed explosion-proof test

Specifications	DM0412
Speed Range	300-4000rpm,increment: 100rpm
Max. RCF	1800×g
Speed accuracy	±20rpm
Rotor type	A6-50P
Rotor Capacity	15mL/50mL×6
Run Time	30sec-99min/Continuous
Motor	Brushless DC moto
Display	LCD
Safety Devices	Door interlock,Overspeed detector; Automatic internal diagnosis
Acceleration /Braking time [Sec]	20s↑20s /90s↓
Power	Single-phase,100V-240V, 50Hz/60Hz, 3A70W
Dimension [D×W×H]	354×304×215mm
Weight	6kg
Advanced Features	Speed/RCF switch; Short-time run function; sound-alert function

Cat. No.	P/N	Descriptions
9034002122	DM0412	Low-speed Centrifuge, including A12-10P rotor and both adapter A10P15&A10P15 plug(package contain in the box)

Cat. No.	P/N	Descriptions
19400068	A12-10P	Plastic rotor, 4500rpm, 15ml*8, used with DM0412，DM0412S
19400027	A10P15	Rotor adapter, used with A12-10P, 12pcs/pk
19400028	A10P15 plug	Rotor adapter plug, used with A10P15, 12pcs/pk
19100197	A6-50P	Plastic rotor, 4000rpm, 15ml6&50ml6, used with DM0412(A6-50P)

Attribute name	Attribute value
Speed range	300-4500rpm
Rotor Capacity	15mL x6, 50mL ×6
