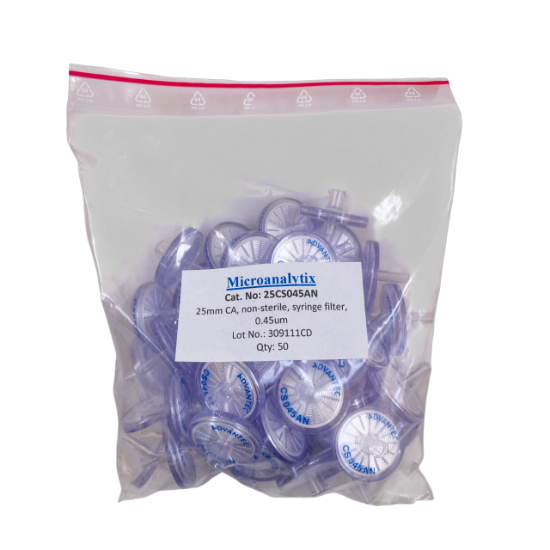

Syringe Filter DISMIC 25mm 0.45 CA NONSTERILE 50/PK 25CS045AN

Syringe Filter DISMIC 25mm 0.45 CA NONSTERILE 50/PK
Availability: 15 in stock
SKU: 25CS045AN
Manufacturer: Advantec
Pack Size: 50

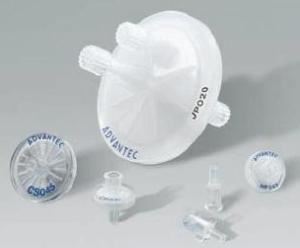

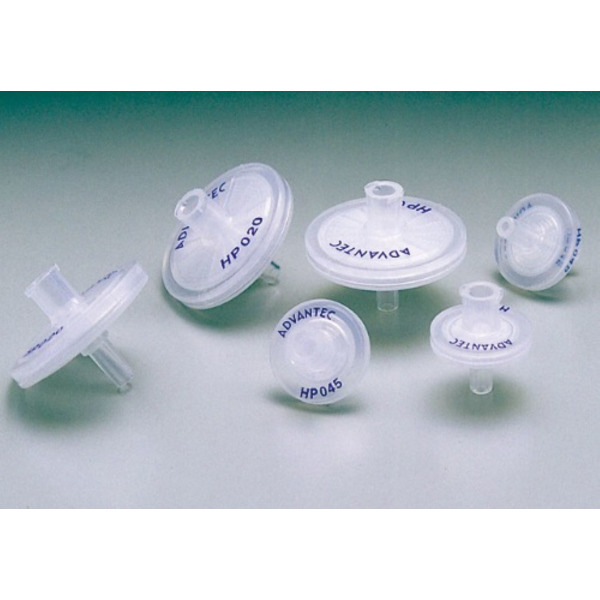

Disposable Syringe Filter Units DISMIC/LABODISC

  • Minimum sample hold-up: Unit housings are specifically designed to maximize sample recovery
  • High purity: Non-pigmented housing and integral filter sealing assure that filtrates will not be adulterated due to pigment, dye, or adhesives leaching into the filtrate
  • Convenient: Each unit is clearly marked with an identifying code to denote pore size, membrane material and housing polymer
  • Sterile: Units can be purchased pre-sterilized and individually packaged, or non-sterile in bulk pack
  • All polypropylene can be autoclaved Acrylic can not be autoclaved
25mm diameter

MCE

0.20

Acrylic

50

25AS020AN

25AS020AS

0.45

Acrylic

50

25AS045AN

25AS045AS

Cellulose Acetate

0.20

Acrylic

50

25CS020AN

25CS020AS

0.45

Acrylic

50

25CS045AN

25CS045AS

0.80

Acrylic

50

25CS080AN

25CS080AS

PTFE, Hydrophilic

0.20

Polypropylene

100

25HP020AN

-

0.45

Polypropylene

100

25HP045AN

-

PTFE, Hydrophobic

0.20

Polypropylene

50

25JP020AN

-

0.50

Polypropylene

50

25JP050AN

-

NYLON

0.20

Polypropylene

100

25NP020AN

-

0.45

Polypropylene

100

25NP045AN

-

PES

0.20

Acrylic

50

-

25SS020RS

0.45

Acrylic

50

-

25SS045RS



Mixed Cellulose Esters (MCE)

  • Properties: A hydrophilic membrane
  • Higher protein binding than cellulose acetate for most proteins
  • High porosity provides a high flow rate

Cellulose Acetate (Acetate)

  • Standard: A commonly used hydrophilic membrane
  • Low protein binding, suitable for aqueous protein solutions
  • Nitrate-free, suitable for groundwater filtration
  • Housing material: polypropylene (3, 13, 50 mm) or styreneacrylonitrile (25 mm)

PTFE, hydrophilic

  • Versatile: Good chemical resistance
  • Compatible with many solvent mixtures used in HPLC, e.g. Acetonitrile/Water
  • Model for Ion Chromatography with the lowest levels of extractables is available.

PTFE, hydrophobic

  • Application: use as vent

NYLON

  • Properties: Naturally hydrophilic membrane
  • Low extractables without wetting agent

PES

  • Low protein binding & extractables
  • Pre-sterilized by Gamma irradiation





DISMIC

LABODISC

Diameter

3 mm

13 mm

25 mm

50 mm

Housing material

-

PP

PP

PP

Acrylic

PP

Filtration Area

cm2

0.06

0.9

4.0

4.0

19.6

Hold-up Volume

mL

< 0.01

< 0.03

< 0.1

< 0.1

< 3.0

Suggested capacity per filter unit

mL

< 2 mL

< 10 mL

< 100 mL

< 100 mL

>100 mL

Pressure limit

MPa

0.51

0.51*

0.51*

0.51

0.34

psi

74

74*

74*

74

49

Maximum Operating Temperature

°C

60

60

60

45

60

°F

140

140

140

113

140

Connections

-

Inlet: female luer-lock outlet: male luer slip

7–13.5 mm

hose barb

with male luer slip

Attribute nameAttribute value
TypeAcrylic housing
MediaCA/Cellulose Acetate
Pore Size0.45um
Diameter25mm
Pack Size50
