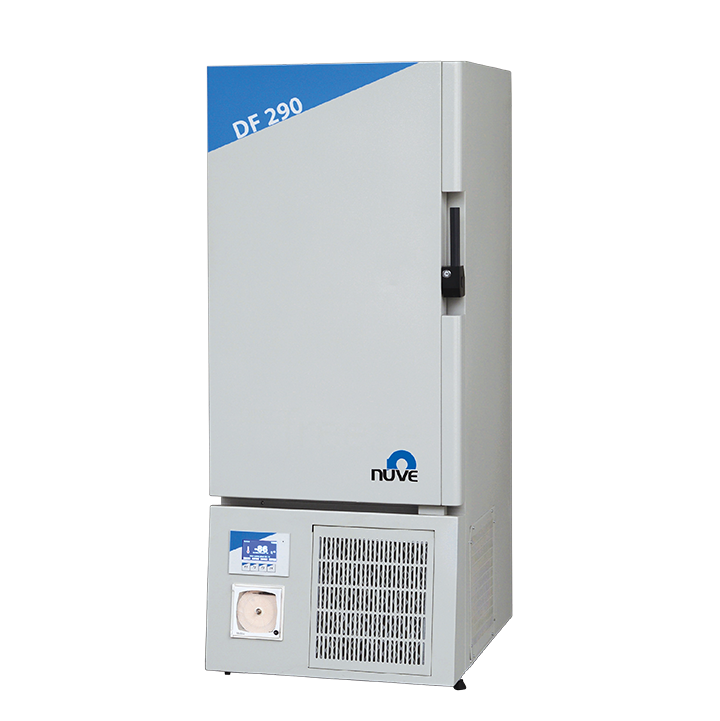

Laboratory Equipment DF 290 Freezers and ULT Freezers DF 290

DirectFREEZE™ cooling coils in shelves inside the chamber; 3 independent compartments with insulated inner doors; -86 °C
SKU: DF 290
Manufacturer: Nuve
Pack Size: 1



Operating temperature range: -55°C to -86°C
Maximum performance at 20°C Ambient Temperature
Volume: 261 liters
Direct and fast freezing with cooling coils entirely situated inside the chamber
Three independent compartments with insulated doors
Programmable microprocessor N-Smart™ control system
Password protected control system
4,3'' LCD colourful display for maximum information
5 language options (Turkish, English, French, Spanish, Russian)
Full traceability by keeping the operating parameters digitally and graphically in the memory
Internal memory for 10 years data
Colour changing display in case of error
Equipped with NuveCom™ communication unit
Equipped with Wi-Fi connection
USB port to store the temperature records on memory stick
World-wide access via ethernet port with NuveCloser™
Rapid support by sending e-mails with the details of the failure
RS 232 port for PC or AlerText™
Key operated mains power switch to protect your samples
Ergonomic door handle with key lock
Perfect air tightness with soft gasket and heated surface
High density injected polyurethane insulation
Alarm for high temperature power failure, temperature sensor failure and open door
Programmable temperature alarm range: Set point +5°C to +25°C
Re-chargeable battery for display and alarm system
Remote alarm outlet
Standard outlet for central alarm system
Int. dim. (WxDxH): 420x630x995  mm
Ext. dim. (WxDxH): 680x975x1715  mm
230 V - 50 Hz



 FACTORY FITTED OPTION
DF XXX YWeekly temperature chart recorder 0°C / -100°C
 OPTIONS
A 08 191AlerText™ GSM alarm module
K 13 009NuveWarn™ remote alarm system with 10 m.cable
A 08 195NuveCloser™ Software for PC (operates through internet)
A 08 231NuveCloser™ Multi Software(connection up to 15 devices)
 ACCESSORIES
A 08 135CO2 back up unit
A 08 240Rack with two drawers (DF 290)
A 08 152Rack with two drawers (DF 490)
A 08 241Rack with three drawers (DF 290 just for plasma)
A 08 150Rack with three drawers (DF 290/490)
A 08 196Rack with two drawers (DF 590)
A 08 197Rack with three drawers (DF 590)
A 08 137Rack for 133x133x52  mm PP cryoboxes (Rack capacity: 20 boxes) (DF 290/490)
A 08 206Rack for 137x137x50  mm cryoboxes (Rack capacity: 20 boxes) (DF 290/490)
A 08 198Rack for 133x133x75  mm PP cryoboxes (Rack capacity: 20 boxes) (DF 590)
A 08 207Rack for 137x137x50  mm cryoboxes (Rack capacity: 25 boxes) (DF 590)
A 08 200Rack for 133x133x52  mm PP cryoboxes (Rack capacity: 25 boxes) (DF 590)
A 08 138PP Cryobox 52x133x133  mm capacity 9x9 tubes
A 08 165PP Cryobox 75x133x133  mm capacity 9x9 tubes
A 08 151Rack for 133x133x75  mm cryoboxes (Rack capacity: 16 boxes) (DF 290/490)
A 08 171Cryobox 137x137  mm Height 50  mm
A 08 17210x10 Divider for up to Ø 12  mm tubes. Divider height: 30  mm
A 08 1739x9 Divider for up to 13.6  mm Ø tubes. Divider height: 30  mm
A 08 160Diagram paper for chart recorder 0°C / -100°C (Pack of 100)
A 08 070Spare pen for chart recorder



DF 290 Brochure Download:


Attribute nameAttribute value
Pack Size1
Volume261L
