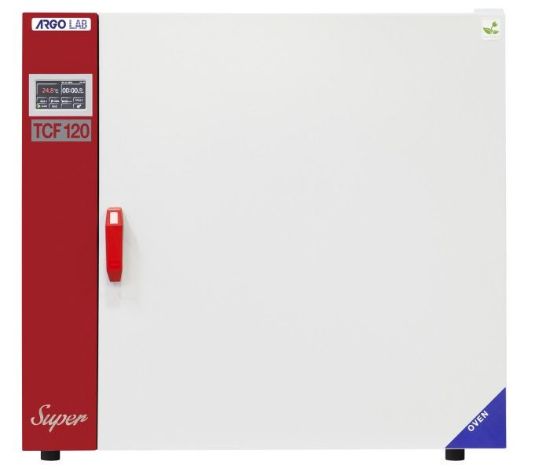

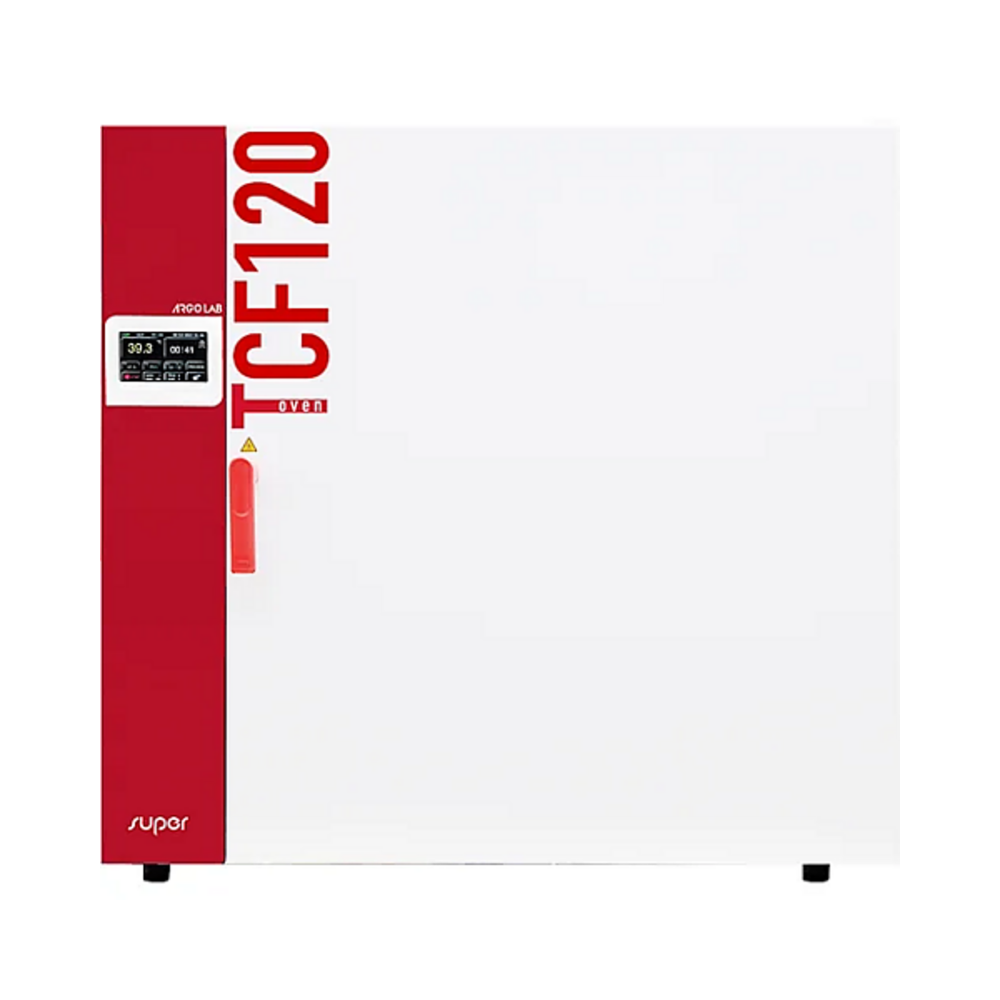

TCF 120 Forced air Oven, SUPER Version, (was 41100612) 41200612

• Working range: +10°C Ta ... +300°C
• 4-inch colour touchscreen display
• 8 storable programmes with 8 steps each
• Single-step basic programme
• Multi-step programme with up to 64 steps
• Data logging and downloading via USB key
• Alarm and operation logging
• Temperature ramps and graphic display

Other features

• ArgoLab forced-ventilation oven.
• Simultaneous display of all operating parameters
• Visual and audible alarms that can be silenced by the operator.
• Digital timer 1 min - 99 h 59 min and continuous operation.
• Delayed start’ function of the heating cycle.
• Safe temperature' function: working temperature limitation for sample protection.
• Fan adjustable to 3 levels: High = 100% - Medium = 75% - Low = 50%.
• Minimal heating times and low heating power for low energy consumption in every application.
• Working data logging of up to 200.000 values and download to USB stick.
• Alarm and operation logging.
• Temperature ramp function for specialised applications.
• Graphical display of temperature trends.
• Multi-user management with 3 authorisation levels.
• Safety class 3.1 (DIN 12880): maximum temperature controller with fluid expansion.
• Through-hole Ø 5 mm as standard (upper side) for insertion of an external sensor for internal temperature control and/or certification.
• Stainless steel chamber with rounded corners, fully removable anti-tip supports and shelves for easy cleaning.
• Door switch for easy sample loading and unloading.
• Power supply 220 ± 10% V - 50 / 60 Hz.

Supplied as standard

Steel grid shelves (n°2 shelves for models up to 50 liters, n°3 shelves for larger models), calibration report at 150°C performed with Accredia-referenced sample instrument, USB stick for data recording and downloading.
