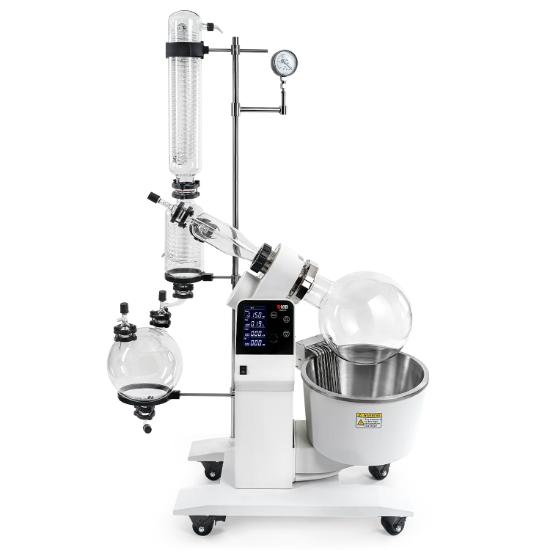

RE200-Pro Main Unit , Rotary Evaporator 6030312124

20L Rotary Evaporator Main Unit

SKU: 6030312124

Manufacturer: Dragon Lab

20L Rotary Evaporator Main Unit

RE200- Pro 20L Industrial Digital Rotary Evaporator

Large LCD digital display with heating temperature, rotation speed, clockwise & anticlockwise and time information
One-click automatic motor lifting (stroke 180mm), smooth and silent
Water/oil heating bath with wide temperature range from RT to 180 °C
Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process
Two-section vertical triple coil condensing tube with large area and strong evaporation capacity ensuring high-efficiency sample recovery
The connector device allows for easy and quick installation of the evaporating flask.
PTFE double sealing ring with excellent sealing performance
Switch valve for continuous collection without compromising the system vacuum and solvent distillation

PRODUCT PARAMETERS
Cat.No.	6030112124
Evaporating flask volume	20L
Temperature range	Room temp. -180℃ (water and oil bath)
Temperature control accuracy	Water: ±1℃ ；Oil: ±3℃
Speed range	10-150rpm
Direction of Rotation	Clockwise and counterclockwise
Evaporation capacity	Max.4.0L/h (water)
Ultimate vacuum	Less 2.6hpa
Temperature control	Micro processer PID control
Display	LCD (temperature/speed/clockwise and Anti-clockwise/time)
Timer	Yes
Time Setting Range	0-999min
Lifting mode	Motorized
Lifting stroke	180mm
Heating bath size	Ø450×240mm
Motor Type	Brushless DC motor
Heating Power	4400W
Power	4600W
Voltage/Frequency	220V，50/60Hz
Dimension[D×W×H]	1160×600×1860mm
Weight	106kg
Permissible ambient temperature	5-40℃
Permissible ambient humidity	≤80% RH
Protection Class	IP20
Safety features	Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
Applications	Suitable for large-scale applications in pilot production, biotechnology, pharmaceutical manufacturing, chemical engineering, cosmetics, and the food industry.
