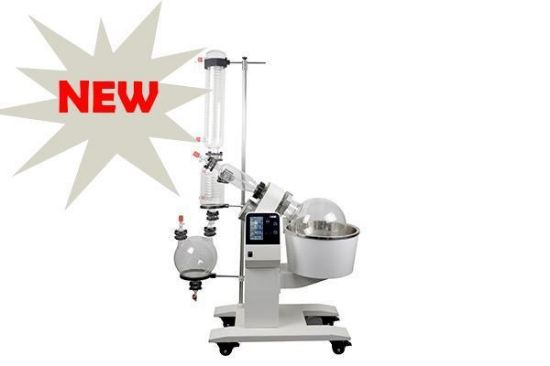

Glassware including condenser + 20L evaporating flask + 10L receiving flask, for RE200-Pro Rotary Evaporator 18203071+12100595

Glassware including condenser + 20L evaporating flask + 10L receiving flask
SKU: 18203071+12100595
Manufacturer: Dragon Lab

Key Features

•   Large LCD digital display with heating temperature, rotation speed, clockwise and Anti-clockwise, time information;

•   One-click automatic motor lifting (stroke 180mm), smooth and silent;

•   Water/oil heating bath with wide temperature range from room temp to 180°C;

•   Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process;

•   Double-layer high-efficiency condensing tube with large condensation area and strong evaporation capacity, ensuring efficient sample recovery;

•   Patented PTFE double sealing ring with excellent sealing performance;

•   A switching valve for continuous collection without compromising the system vacuum and solvent distillation.



SpecificationsRE200-Pro
PerformanceTemperature rangeRoom temp. ~180℃
(both water and oil)
Control Accuracy Water: ±1℃Oil: ±3℃
Rotation Speed 10~150rpm
Evaporation capacity Max.4.0L/h (water vapor volume)
Ultimate vacuum Less 2.6hpa
functionTemperature control methodMicro processer PID control
DisplayLCD (temperature/speed/clockwise and Anti-clockwise/time)
Stroke DisplacementAutomatic 180mm
Safety featuresMotor over-current protection, Residual Current Device,
lifting overload protection, Boil-dry protection,
over-temperature protection
constituteSample flaskRound flask 20L
Receiving flaskRound flask 10L with drain valve
CondenserTwo-section vertical triple serpentine condenser,
cooling surface 1.2m2
SpecificationHeating bath sizeφ450×240mm
Takeover caliberCooling/suction nozzle outer diameter 16mm,
vacuum pump nozzle outer diameter 16mm
Dimension[D×W×H]1160mm×600mm×1860mm
Power supply220V/4600W/50/60Hz
