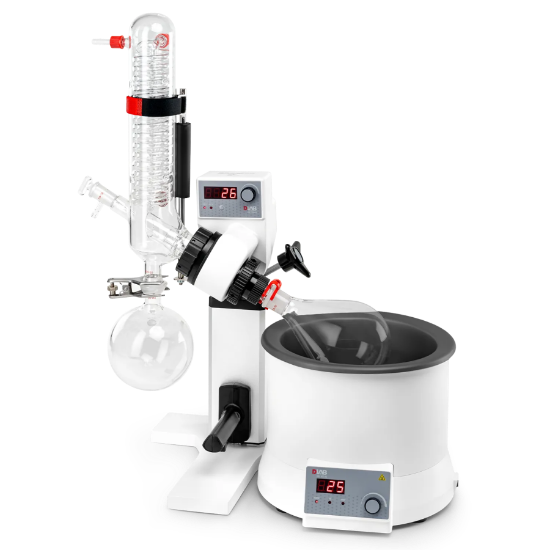

Rotary Evaporator with set of glassware vertical include 18202410 condenser (1200cm²,1000ml) and LED heating bath 18101888 (package separately)
----------------------------------------------------------------
RE100-S LED Digital Rotary Evaporator
• 5L heating bath with a wide temperature range (room temp.to180 °C).
Independent temperature control makes it can be used separately. Water/oil heating mode can be changed just through a switch
• Manual lift combined with auxiliary lift for precise positioning of the glassware
• PID control ensures high temperature accuracy at ±1°C (water)
• Overheating protection temperature at 220°C
• Boil-dry protection, automatically power off if heating without water/oil in the heating bath
• Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process
• Condenser (cooling surface 1200/1700cm2 for selection), speeding up the flow rate of liquid with excellent cooling effect
• Ejection mechanism ensures easy exchange of evaporating flask
• Adjustable immersion angle
• Double spring sealing ring which is made of PTFE provides an excellent sealing performance
• Compatible wit
PRODUCT PARAMETERS |
Cat.No. | |
Evaporating flask volume | 50-3000mL |
Temperature range | |
Temperature control accuracy | water: ± 1℃ ;oil: ±3℃ |
Speed range | 20-200rpm |
Direction of Rotation | Clockwise and counterclockwise |
Evaporation capacity | 1.56L/h |
Ultimate vacuum | - |
Temperature control | Micro processer PID control Display |
Display | LED |
Timer | Yes |
Time Setting Range | 1-999min |
Lifting mode | Manual |
Lifting stroke | 110mm + auxiliary 100mm |
Heating bath size | |
Motor Type | Brushless DC motor |
Heating Power | 1200W |
Power | 1245W |
Voltage/Frequency | 100-120/200-240V,50/60Hz |
Dimension[D×W×H] | Main Unit:440×320×450mm |
Weight | Main Unit:7kg Heating Bath:3kg |
Permissible ambient temperature | 5-40℃ |
Permissible ambient humidity | ≤80% RH |
Protection Class | |
USB Interface | Yes |
Safety features | Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection |
Applications | Chemical research, pharmaceutical manufacturing, food processing, cosmetics manufacturing, and chemical laboratories. |
