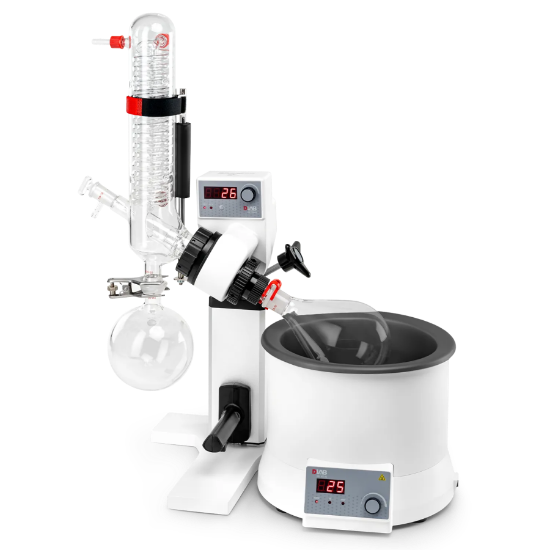

RE100-S 1700cm²package, Rotary Evaporator, glassware vertical + 18900165 condenser+LED heating bath 18101888 6030120211+ 18900165

Rotary Evaporator with set of glassware vertical include 18900165 condenser (1700cm²,1000ml) and LED heating bath 18101888 (package seperately)
SKU: 6030120211+18900165
Manufacturer: Dragon Lab

RE100-S 1700cm²package, Rotary Evaporator, glassware vertical + 18900165 condenser+LED heating bath 18101888
----------------------------------------------------------------

RE100-S LED Digital Rotary Evaporator

•   5L heating bath with a wide temperature range (room temp.to180 °C).
Independent temperature control makes it can be used separately. Water/oil heating mode can be changed just through a switch
•   Manual lift combined with auxiliary lift for precise positioning of the glassware
•  PID control ensures high temperature accuracy at ±1°C (water)
•   Overheating protection temperature at 220°C
•   Boil-dry protection, automatically power off if heating without water/oil in the heating bath
•   Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process
•  Condenser (cooling surface 1200/1700cm2 for selection), speeding up the flow rate of liquid with excellent cooling effect
•   Ejection mechanism ensures easy exchange of evaporating flask
•   Adjustable immersion angle
•  Double spring sealing ring which is made of PTFE provides an excellent sealing performance
•   Compatible wit



PRODUCT PARAMETERS
Cat.No.
6030120211
Evaporating flask volume50-3000mL
Temperature range
Room temp.-180℃
Temperature control accuracy
water: ± 1℃ ;oil: ±3℃
Speed range20-200rpm
Direction of RotationClockwise and counterclockwise
Evaporation capacity1.56L/h
Ultimate vacuum-
Temperature control
Micro processer PID control Display
DisplayLED
TimerYes
Time Setting Range1-999min
Lifting modeManual
Lifting stroke110mm + auxiliary 100mm
Heating bath size
300×300×240mm
Motor TypeBrushless DC motor
Heating Power1200W
Power1245W
Voltage/Frequency100-120/200-240V,50/60Hz
Dimension[D×W×H]Main Unit:440×320×450mm
WeightMain Unit:7kg Heating Bath:3kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
≤80% RH
Protection Class
IP20
USB InterfaceYes
Safety featuresMotor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
ApplicationsChemical research, pharmaceutical manufacturing, food processing, cosmetics manufacturing, and chemical laboratories.
Attribute nameAttribute value
ModelRE100-S
Evaporating flask volume50-3000mL
Speed range20-200rpm
Power1245W
