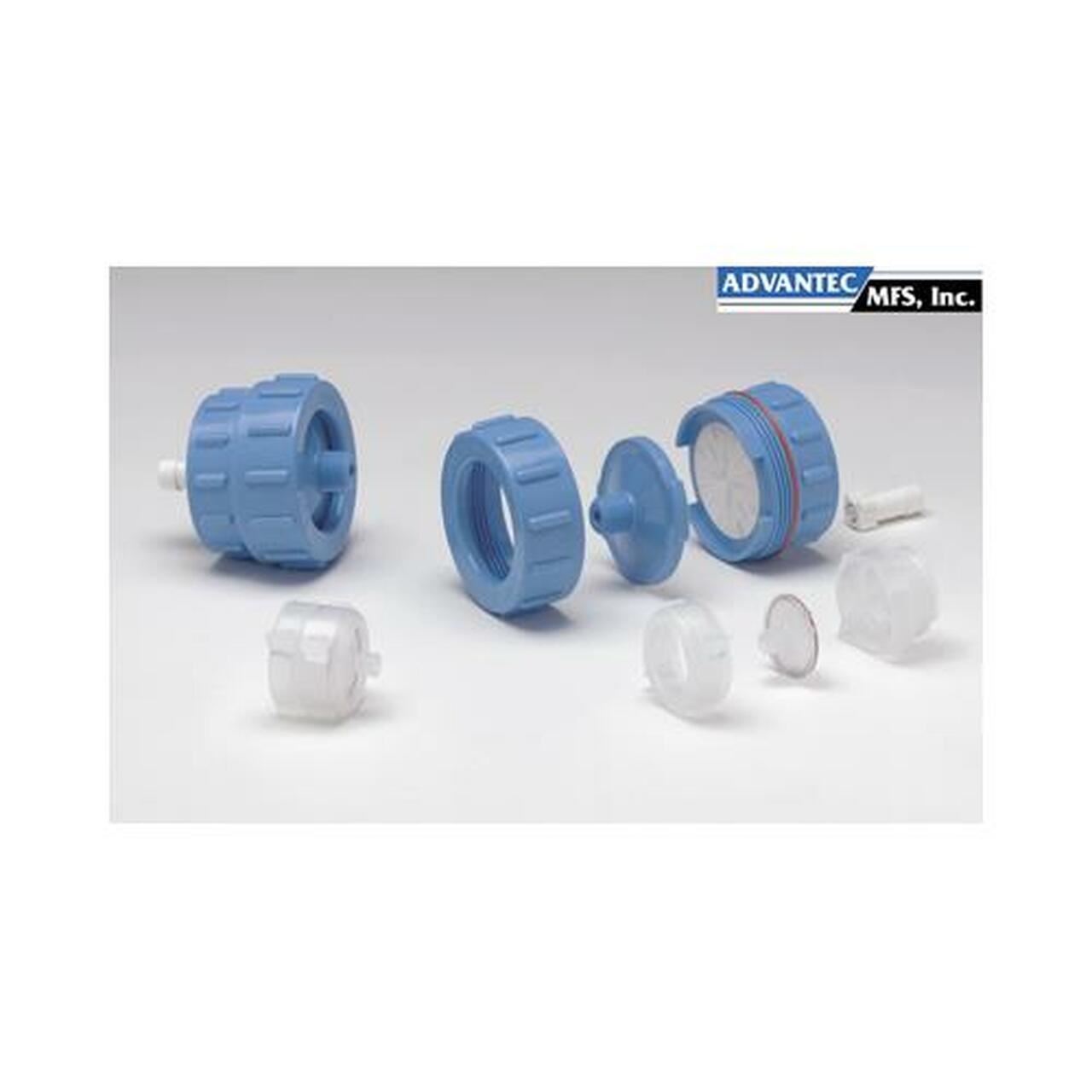

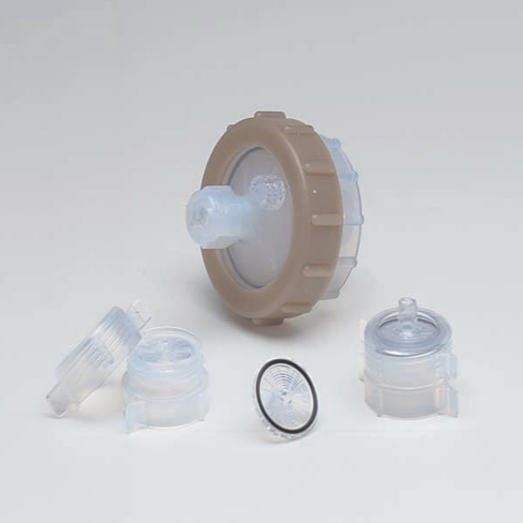

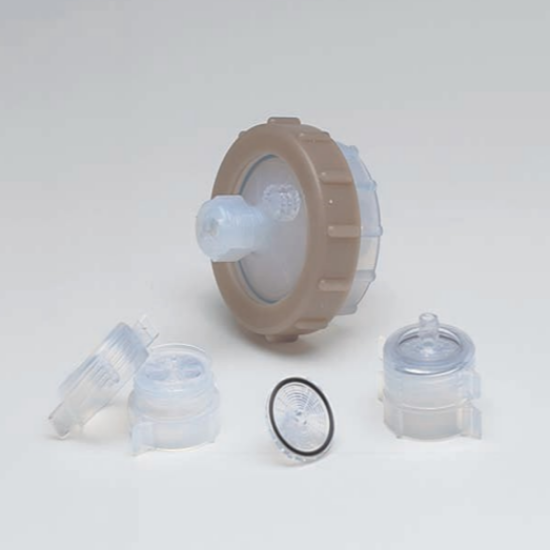

PFA25 PFA IN-LINE HOLDER PFA-25

PFA-25

PFA-47

Materials:

Body and support screen

PFA

Locking ring on PFA 47: PEEK glass fiber filled PFA

O-ring (standard)

Perfluoroelastomer

Connections:

Inlet

Female Luer-Lock

Combination 1/4" NPTM,

1/4" tubing adapter

Outlet

Male Luer slip

Pressure:

Maximum operating

0.29 MPa (42 psi)

Temperature:

Maximum operating

121°C (250°F)

Autoclave

121°C (250°F), 15 min

Weight:

0.8 oz (22g)

5.2 oz (120g)

Dimensions:

Diameter

32 mm (1.3")

65 mm (2.6")

Height

32 mm (1.3")

70 mm (2.8")

Membrane Compatibility:

Filter size

25 mm

47 mm

Prefilter size

21 mm

42 mm

Filtration area

3.5 cm2

13.5 cm2

Flow Rate:

Pore size (PTFE membrane)

Typical methanol flow rate at 1 kg/cm2, 20°C

0.2 µm (T020)

60 mL/min

400 mL/min

0.5 µm (T050)

150 mL/min

700 mL/min

1.0 µm (T100)

350 mL/min

1200 mL/min
