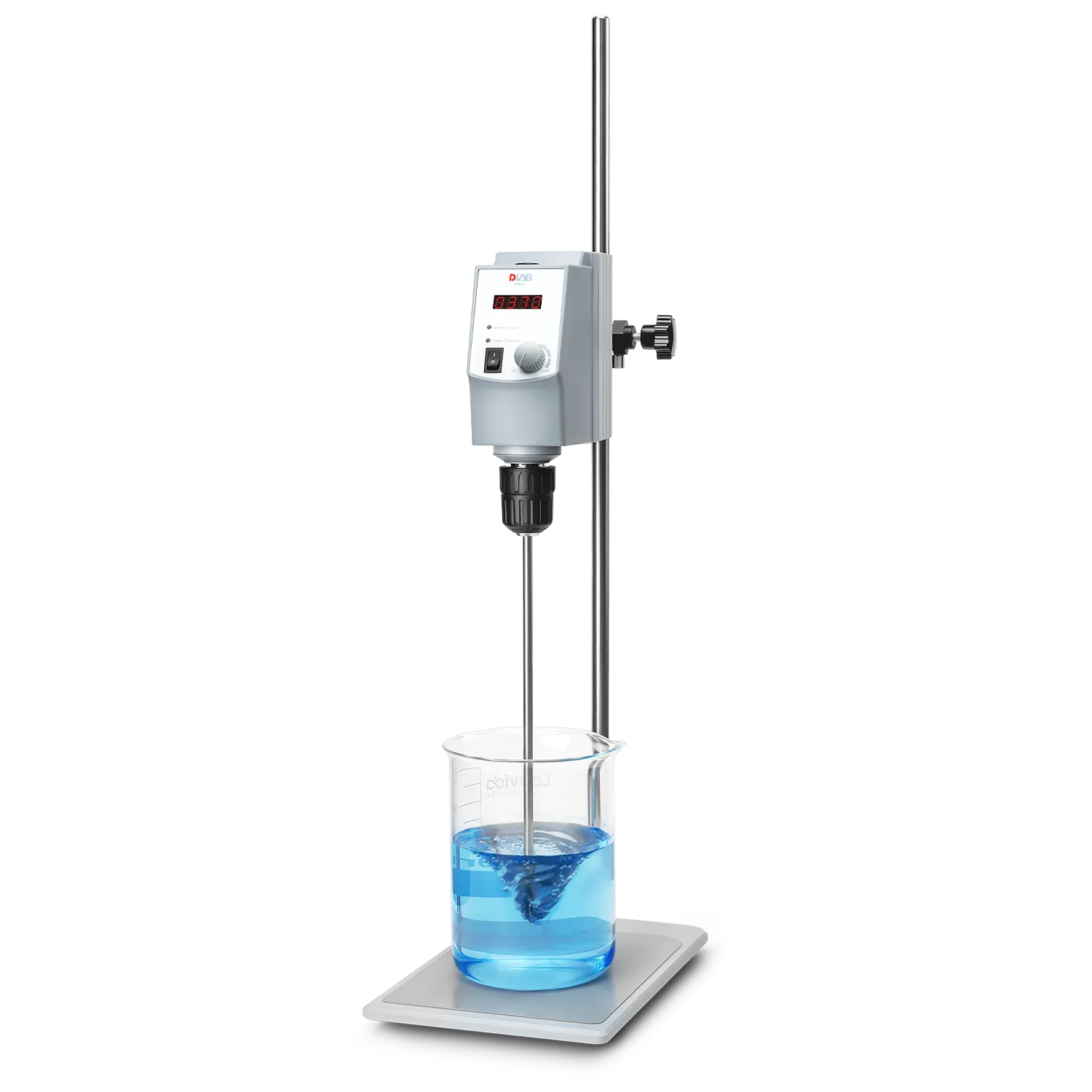

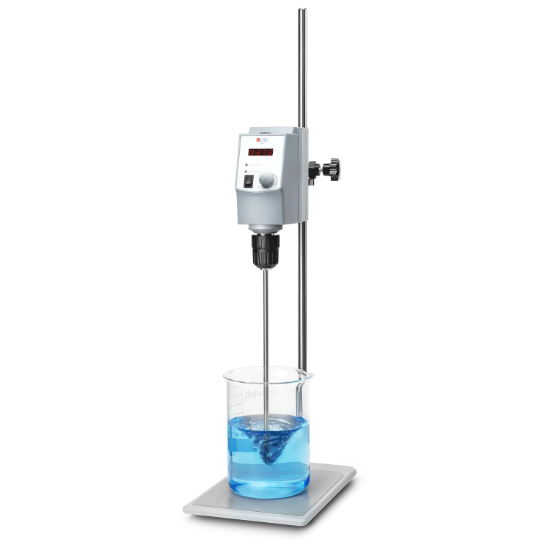

OS40-S package, Overhead Stirrer 8033200200+18900258+18900071

OS40-S main body 8033200200 +Universal plate stand18900258 +Crossed stirrer18900071

SKU: 8033200200+18900258+18900071

Manufacturer: Dragon Lab

Pack Size: 1

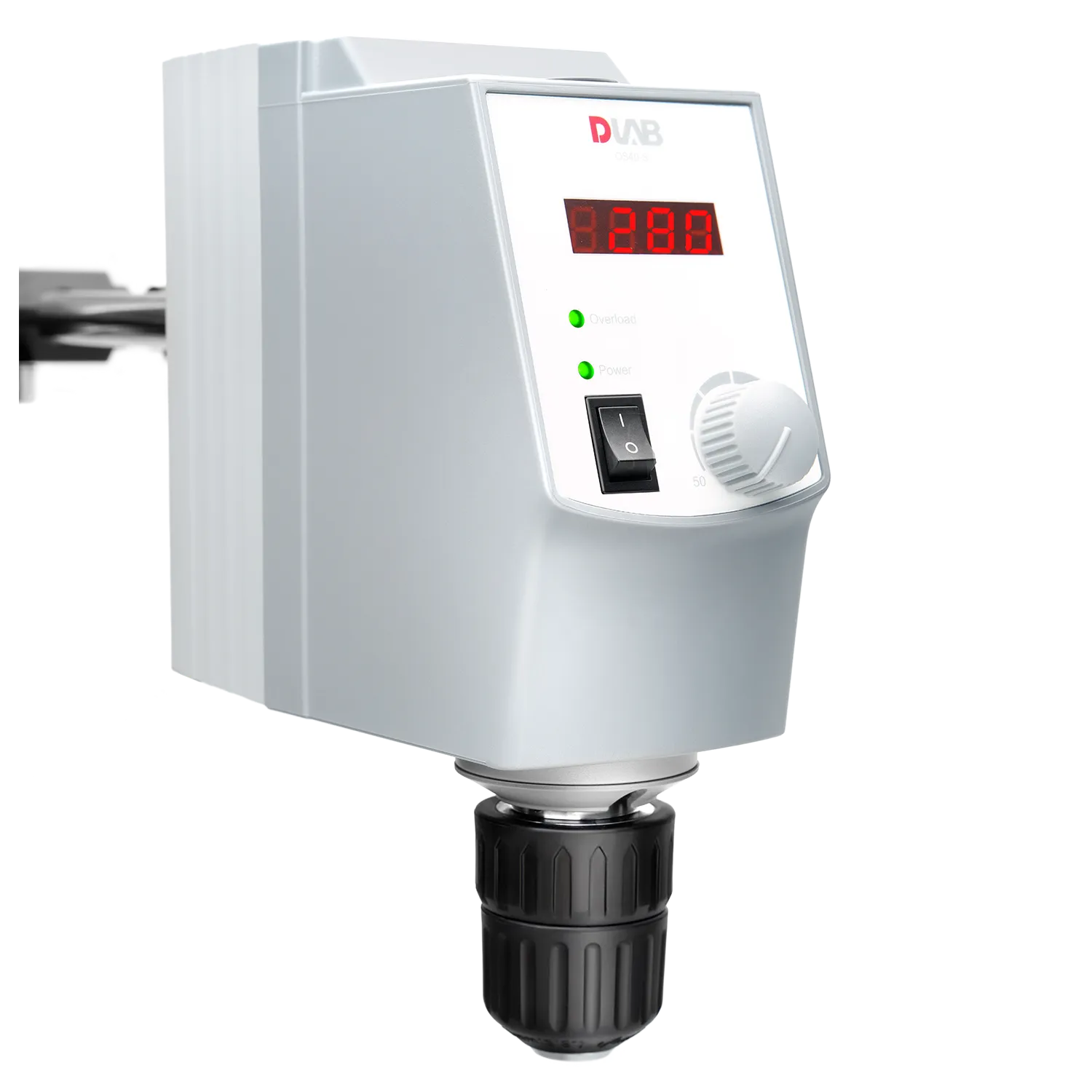

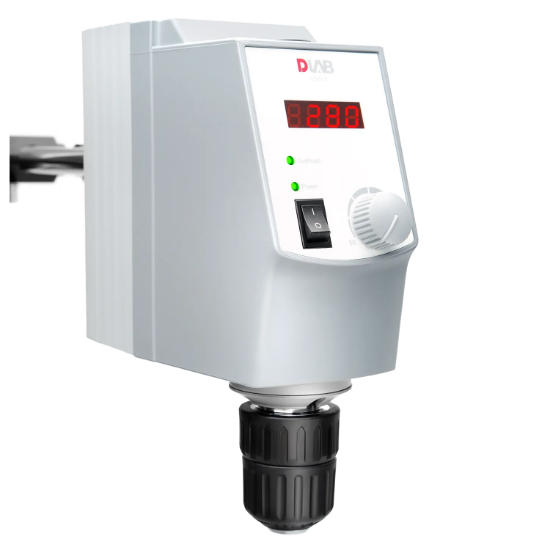

OS40-S LED Overhead Stirrer

High reliability and outstanding performance
Wide range of speed from 50 to 2200rpm
Brushless DC motor for long life, maintenance free and explosion proof
LED screen for monitoring actual speed
Safety circuits allow for safe stop function in anti-stall or overload conditions
Large chuck diameter for many shaft types

PRODUCT PARAMETERS
Max. stirring quantity (H2O)	40L
Motor type	Brushless DC motor
Motor input power	120W
Motor output power	100W
Voltage	100-240V, 50/60 Hz
Power	130W
Speed range	50-2200rpm
Speed display accuracy	±3rpm
Speed display	LED
Overload protection display	LED lights
Max. torque	60Ncm
Viscosity max.	50000mPas
Chuck range diameter	0.5-10mm
Dimension [W×H×D]	83×220×186mm
Weight	2.8kg
Protection class	IP42
Permissible ambient temperature and humidity	5-40℃, 80%RH

Attribute name	Attribute value
Pack Size	1
Type	LED Display
Model	OS40-S
Max. stirring quantity	40L
Speed range	50-2200rpm
