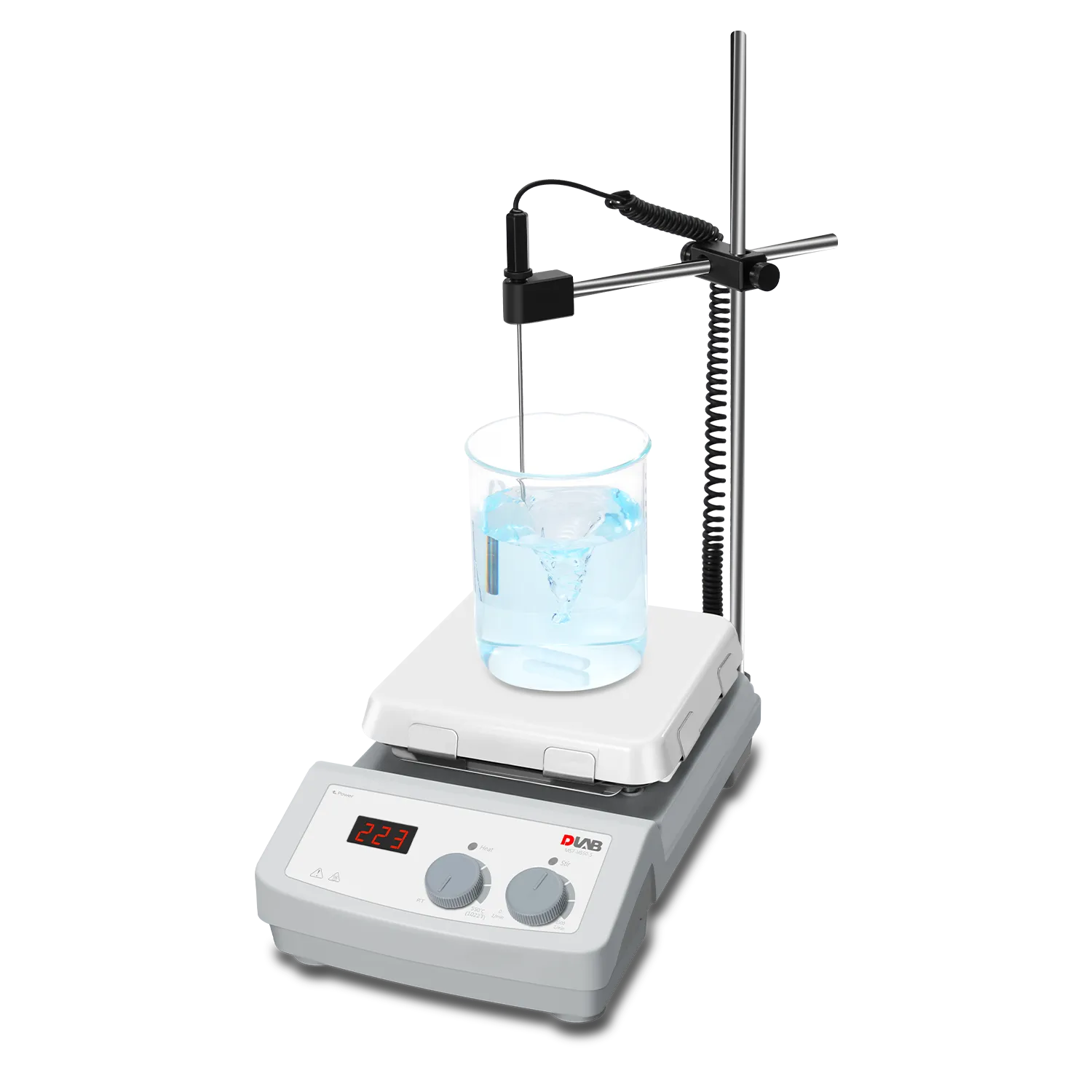

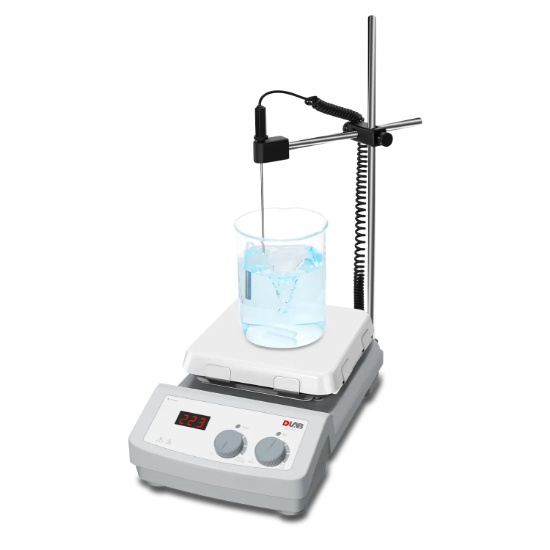

MS7-H550-S package 2: Hotplate Magnetic Stirrer (550°C) & PT1000A & Support clamp, 8130122211+18900017

Include：MS7-H550-S package 1（8130122211）+ Support clamp 18900017
SKU: 8130122211+18900017
Manufacturer: Dragon Lab
Pack Size: 1

Include：MS7-H550-S   package 1（8130122211）(LED Digital 7’’ Square Hotplate Magnetic Stirrer，glass ceramic hotplate，heating temperature up to 550°C（8030122211）+ PT1000A (18900016)) +support clamp 18900017
------------------------------------------------
MS7-H550-S LED Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate
  • LED displays actual temperature
  • Built-in PID controller ensures safe heating of the medium with overheating protection
  • Maximum heating plate temperature up to 550℃
  • Glass ceramic work plate is resistant to corrosion and is easy to clean
  • External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
  • Digital speed control with maximum range of 1500rpm
  • Outstanding brushless DC motor offers more stirring power
  • Two knobs enable easy adjustment of speed and temperature
  • “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
  • Remote function provides PC control and data transmission

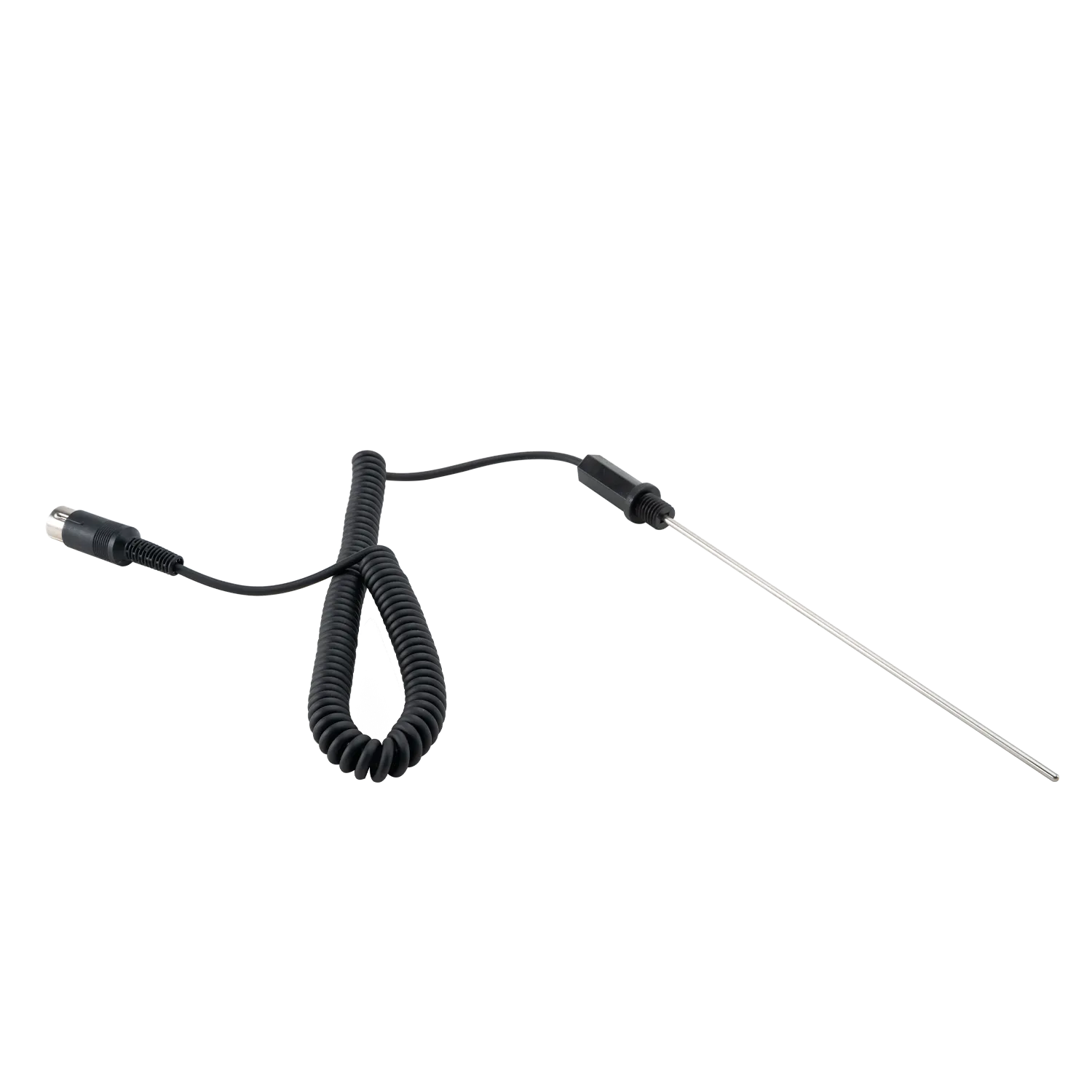

PT1000-A, length of 230mm

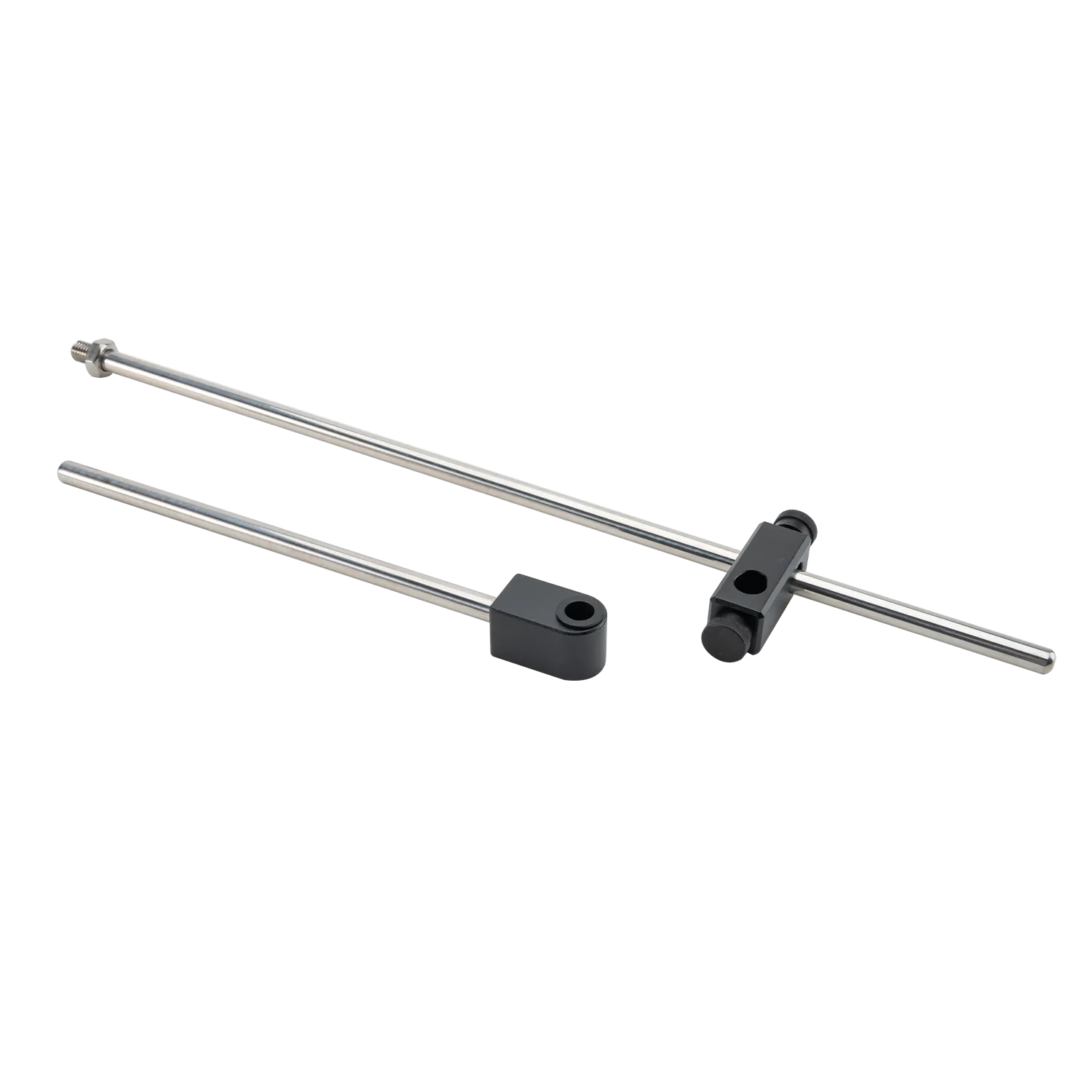

Support clamp of PT1000 (18900017)

Support clamp of PT1000 ,

Vertical bar length：45cm,

stents length：25cm,

Stem diameter:10mm



SpecificationsMS7-H550-S
Work plate Dimension [W x D] 184x184mm (7 inch)
Work plate materialGlass ceramic
Motor typeShaded pole motor
Motor rating input15W
Motor rating output1.5W
Power1030W
Heating output1000W
Voltage100-120/200-240V  50/60Hz
Stirring positions1
Max. stirring quantity, [H2O]10L
Max. magnetic bar[length]80mm
Speed range0-1500rpm
Speed displayScale
Temperature displayLED
Heating temperature rangeRoom temp.-550°C, increment 5°C
Temperature  control accuracy±10°C
Overheating protection580°C
Temperature  display accuracy±1°C
External  temperature sensorPT1000 (accuracy ±0.2)
"Hot" warning50°C
Protection classIP21
Dimension [WxDxH]215x360x112mm
Weight4.5kg
Permissible ambient temperature and humidity5-40°C, 80%RH



Accessories
Cat. No.P/NDescriptions
18900002MS 135.2Red quarter pie, 11 holes，4 ml reaction vessel，Ø15.2mm，20mm depth, used with MS135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro, MS7-H550-S
18900003MS 135.3Purple quarter pie, 4 holes，20 ml reaction vessel，Ø28mm，24mm depth, used with MS135.1 and MS 135.8 ,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S
18900004MS 135.4Blue quarter pie, 4 holes, 30 ml reaction vessel，Ø28mm，30mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S
18900005MS 135.5Black quarter pie, 4 holes, 40 ml reaction vessel，Ø28mm，43mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S
18900048MS 135.6Green quarter pie，6 holes, 8ml reaction vessel，Ø17.8mm，26mm depth, used with MS135.1 and MS135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S
18900049MS 135.7Golden quarter pie，4 holes, 16ml reaction vessel，Ø21.6mm，31.7mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S
18900006MSBAR10Stirrer bar（10mm x 6mm），1pc/pk
18900007MSBAR15Stirrer bar（15mm x 8mm），1pc/pk
18900008MSBAR20Stirrer bar（20mm x 8mm），1pc/pk
18900009MSBAR25Stirrer bar（25mm x 8mm），1pc/pk
12500005MSBAR30Stirrer bar（30mm x 6mm），1pc/pk
18900011MSBAR40Stirrer bar（40mm x 8mm），1pc/pk
12500004MSBAR50Stirrer bar（50mm x 8mm），1pc/pk
18900013MSBAR65Stirrer bar（65mm x 8mm），1pc/pk
18900014MSBAR80Stirrer bar（80mm x 13mm)，1pc/pk
18900016PT1000-ATemperature sensor for digital hotplate models,length of 230mm, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro
18900136PT1000-BTemperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro
18900084PT1000-CTemperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro
18900017Support clamp of PT1000
18900293Set includs support clamp of PT1000 and PT1000 Temperature sensor

Attribute nameAttribute value
Pack Size1
TypeMagnetic Hotplate Stirrer
ModelMS7-H550-S
Temperature Max550℃
Speed range0-1500rpm
