MS-H-ProT package 2: Hotplate Magnetic Stirrer (340°C) & PT1000A & Support Clamp, 8130231110+18901706

MS-H-ProT package 2, Include：MS-H-ProT package 1 (8130231110) + support clamp (18901706）
SKU: 8130231110+18901706
Manufacturer: Dragon Lab
Pack Size: 1

MS-H-ProT package 2, Include：

MS-H-ProT, LCD Digital Hotplate Magnetic Stirrer with Timer, stainless steel with ceramic coated hotplate，heating temperature up to 340°C （8030201110)

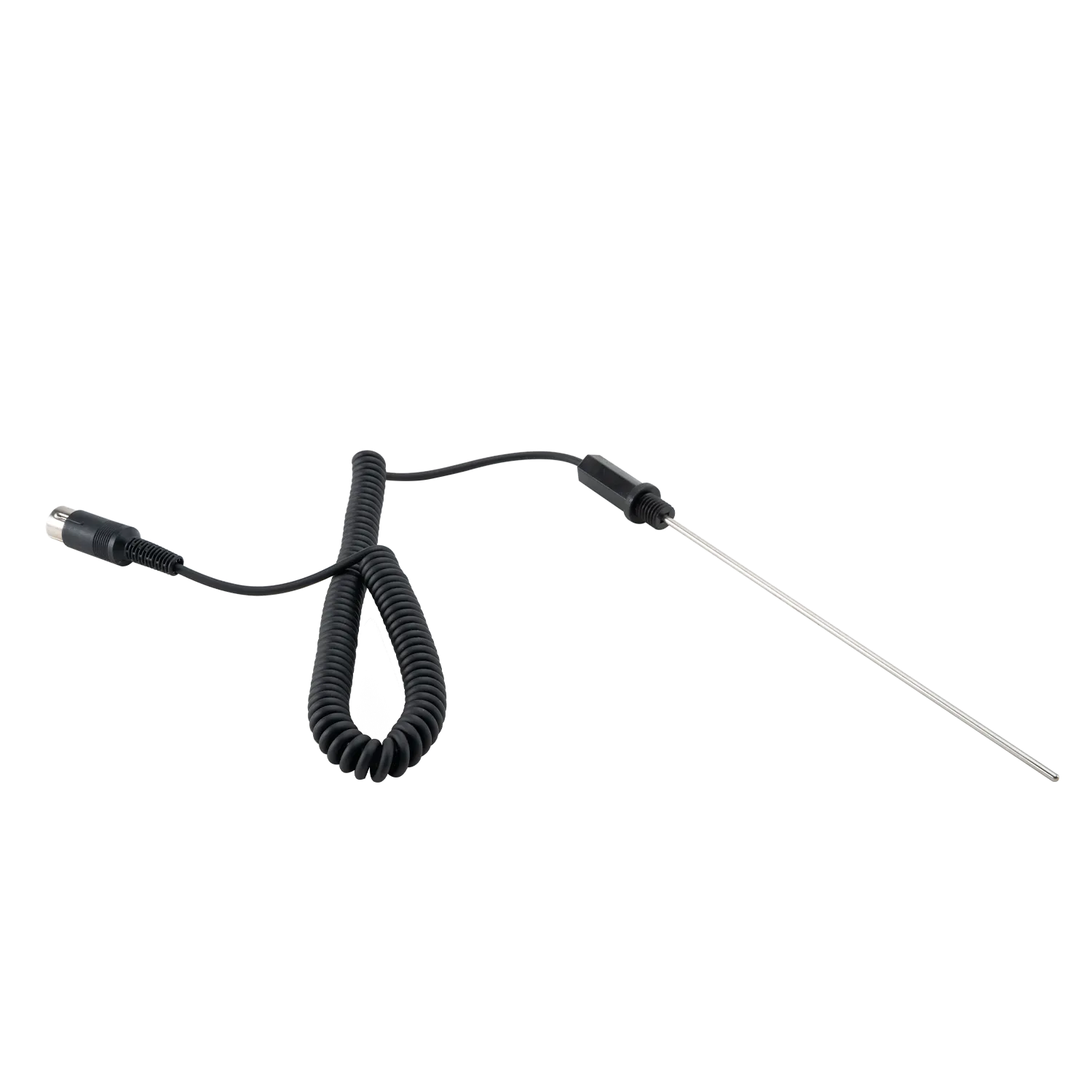

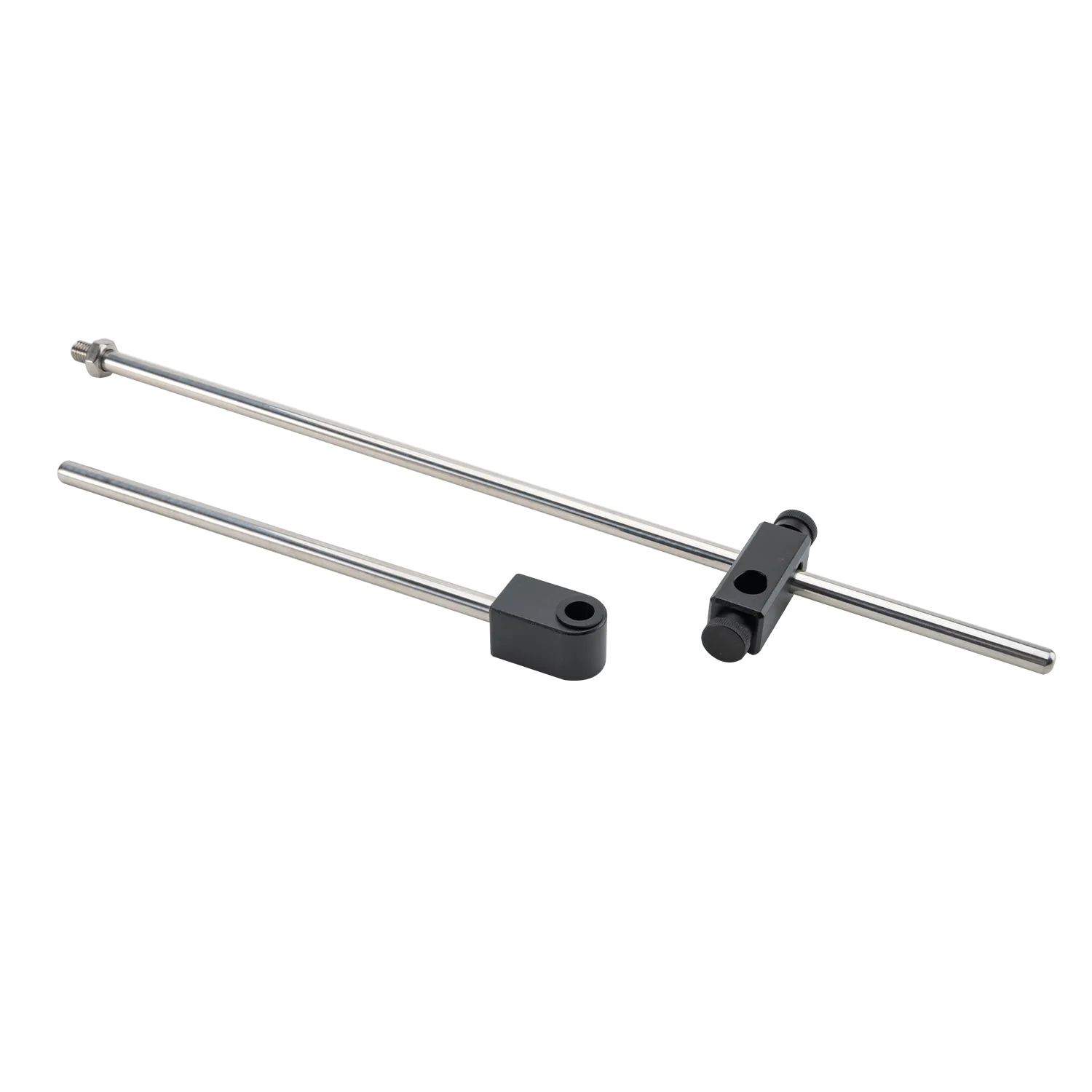

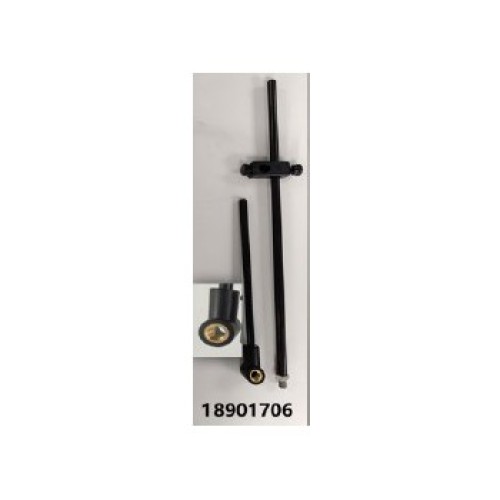

+PT1000A (18900016) + Support clamp (18901706）

--------------------------------

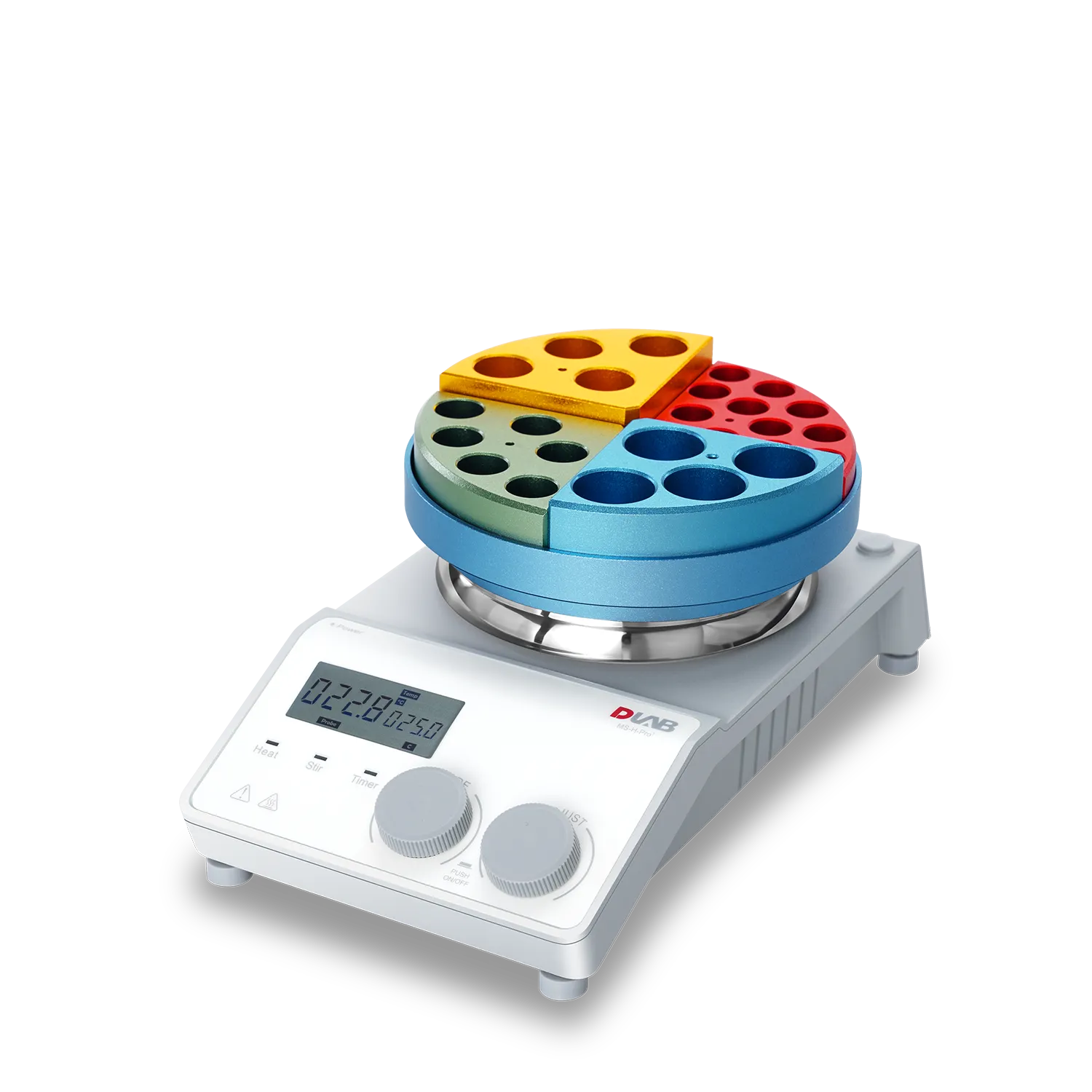

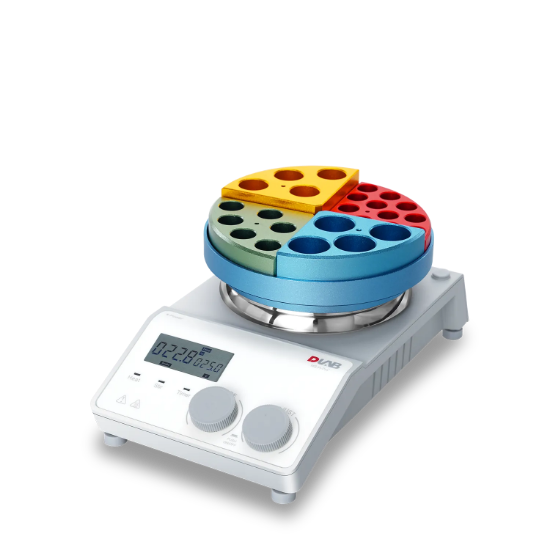

MS-H-PROT LCD Digital Magnetic Hotplate Stirrer with Timer
  • Brushless DC motor is maintenance free and explosion-proof
  • Digital temperature control with max. temperature at 340°C
  • Digital speed control with max. speed up to 1500rpm
  • Max. stirring quantity of H2O at 20L
  • Safety circuits provide overheating protection
  • The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
  • Wide range timer function from 1min to 99h59min
  • High-resolution LCD display shows actual temperatures，speed and time
  • External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
  • Stainless steel work plate with ceramic coating provides good chemical-resistant performance
  • Remote function provides PC control and data transmission
  • A wide variety of accessories are available



PRODUCT PARAMETERS

 Dimension of work plate

 φ135mm ( 5 inch )

 Work plate material

 stainless steel cover with ceramic

 Motor type

 Brushless DC motor

 Motor rating input

 18W

 Motor rating output

 10W

 Power

 550W

 Heating output

 500W

 Voltage

 100-120/200-240V 50/60Hz

 Stirring positions

 1

 Max. stirring quantity[H2O]

 20L

 Max. magnetic bar[length]

 80mm

 Speed range

 100-1500rpm, resolution±1rpm

 Speed display

 LCD

 Temperature display

 LCD

 Heating temperature range

 Room temp.~340°C, increment 1°C

 Control accuracy of work plate

 ±1°C(<100°C); ±1%(>100°C)

 Over temperature protection

 360°C

 Temperature display accuracy

 ±0.1°C

 External temperature sensor

 PT1000 (accuracy ±0.2)

 "Hot" warning

 50°C

 Timer function

 1min~99h59min

 Data connector

 RS232

 Protection class

 IP42

 Dimension [W x D x H]

 160×280×85mm

 Weight

 2.8kg

 Permissible ambient temperature and humidity

 5-40°C, 80%



Attribute nameAttribute value
Pack Size1
TypeMagnetic Hotplate Stirrer
ModelMS-H-ProT
Speed range100-1500rpm
Temperature Max340 °C
