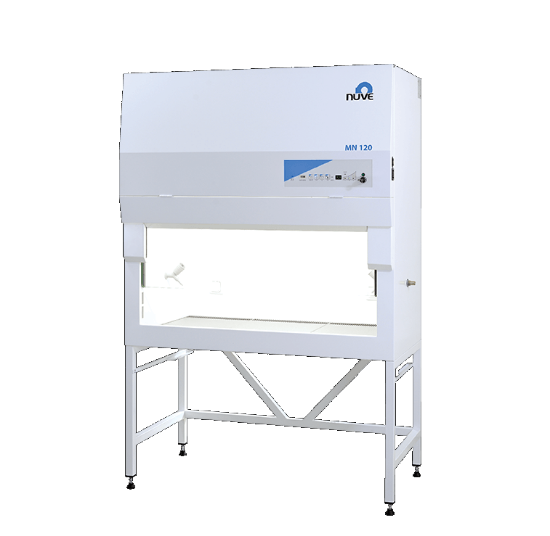

Ensuring first class protection for operator, environment and product, MN Series Class II Microbiological Safety Cabinets are the instrument of choice when handling hazardous microorganisms or those whose hazard level is unknown. Airflow is automatically maintained at 0,45 m/s by compensating for filter clogging. Laminarity is ensured by siting the lighting outside of the chamber.
The window can only be set at a safe position. There is no sliding of the window to wear out or split the seal and a gas spring holds the window firmly closed (or open for easy access cleaning). An optional closing panel with UV light directs the light into the chamber with the source close to the work surface where contamination is most likely to be the highest.
White walls for non-glare illumination, rounded corners for ease of cleaning, arm rest for working over long periods without blocking the air intake and low noise level make MN cabinets a pleasure to work with. The electronics compartment is sited outside of the contaminated zone for servicing and the two HEPA filters can easily be exchanged.
| CLASS II MICROBIOLOGICAL SAFETY CABINET |
| EN 12469 Certified by TUV Nord |
| Protection for operator, environment and the product |
| Microprocessor control system |
| Digital display for airflow speed |
| Power switch with key lock |
| Automatic speed compensation system |
| HEPA filters with 99,995% efficiency for particles ≥ 0,3 µm |
| Alarms for power failure, open window, low and high airflow speed, |
| low air inflow speed, clogged filters |
| Gas spring assisted window for perfect air tightness |
| Comfort of usage with very quiet blower and high light intensity |
| Smooth chamber walls and rounded corners |
| Elapsed hour counter |
| DOP test outlet |
| 2xPower outlets as standard |
| Int. dim. (WxDxH): 1190x600x650 mm |
| Ext. dim. (WxDxH): 1360x795x1400 mm |
| 230 V-50 Hz. |
| | ACCESSORIES |
| S 17 004 | Support stand for MN 090 |
| S 17 003 | Support stand for MN 120 |
| M 08 024 | Gas valve with solenoid valve |
| M 08 020 | Vacuum valve |
| K 04 361 | Front enclosure with U.V. Light for MN 090 |
| K 04 362 | Front enclosure with U.V. Light for MN 120 |
| F 06 041 | Main HEPA filter MN 090 |
| F 06 042 | Main HEPA filter MN 120 |
| F 06 038 | Exhaust HEPA filter MN 090 |
| F 06 035 | Exhaust HEPA filter MN 120 |
