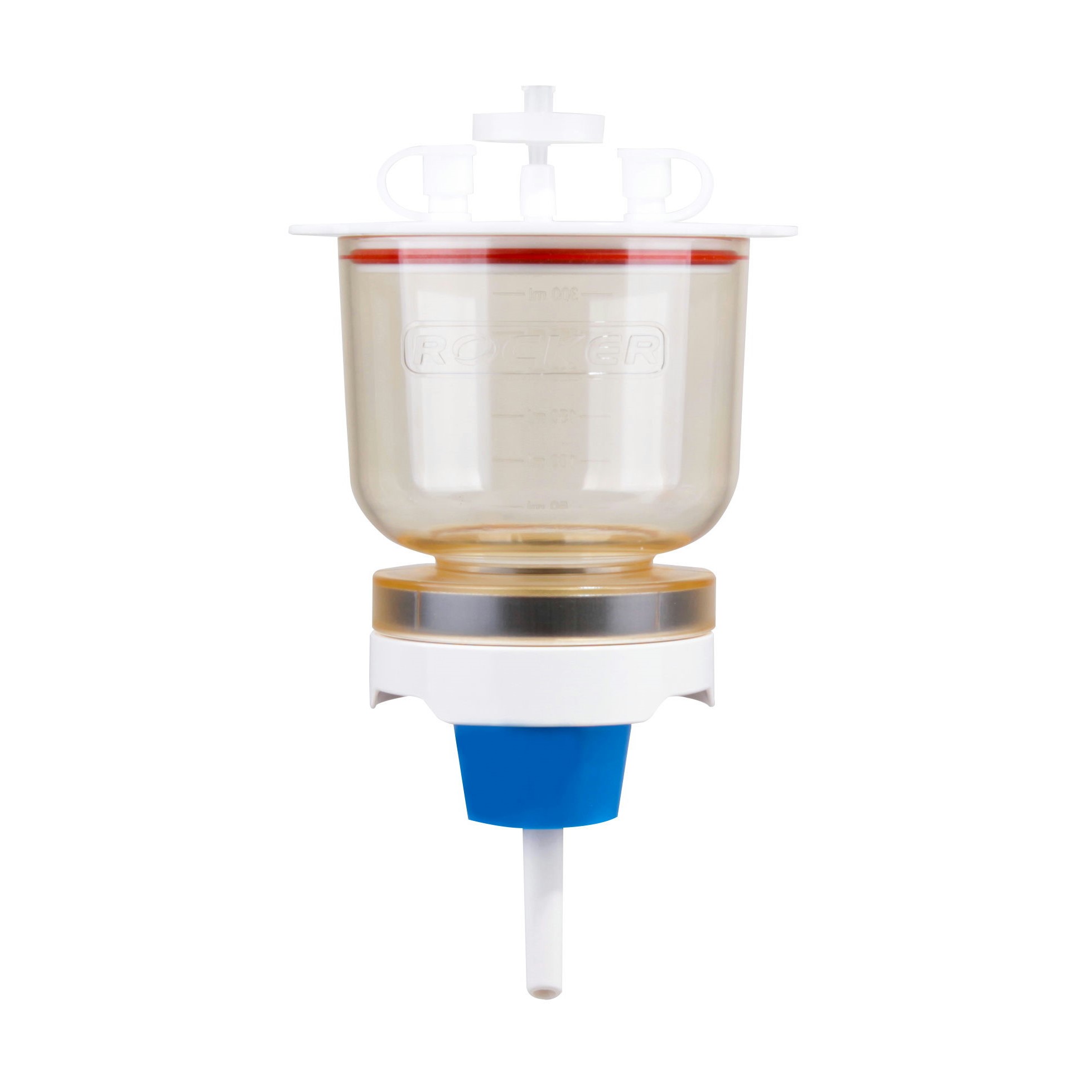

MF3,300ml Magnetic Filter Holder with lid kit 200300-01

Filter Diameter 47mm; With lid kit Funnel; Capacity 300 ml
Availability: 9 in stock
SKU: 200300-01
Manufacturer: Rocker
Pack Size: 1



SpecificationMaterial
▸ Funnel Capacity: 300 ml
▸ Filter Diameter: 47 mm
▸ Effective Filtration Area: 13.1 cm²
▸ Syringe filter: 25 mm, 0.2 μm
▸ Hose barb: ID4 ~ ID8
▸ Graduation increment: 50 ml
▸ Funnel: PES
▸ Support base: PES
▸ Membrane support: PES
▸ Funnel lid: PP
▸ Hose barb: PES
▸ Cap of lid: Silicone
▸ Syringe filter: PTFE



Part NumberDescription
200300-01MF 3, 300ml Magnetic Filter Holder with lid kit
200310-01MF 3a, 300ml Magnetic Filter Holder (short stem) with lid kit
200300-36PP lid kit
167110-16No. 8 Silicone stopper

Rocker MF series magnetic filter holders are designed with double-layer magnets to ensure a tight seal between the funnel and support base. The user-friendly design can allow one-handed operation and prevent possible twisting and tearing of the membrane.
Innovative design of a hose fitting detachable to the support base can allow a direct connection to vacuum source and a flexible use with various kinds of vacuum flask and bottle. Constructed of Polyether sulfone (PES) material, MF series filter holders can be resistant to a wide range of solvents, sturdy and autoclavable.

MF Magnetic Membrane Filter Holder Features

  • One to more
    Compatible with various kinds of bottle, vacuum flask with or without side arm to collect filtrate directly.
  • Easy to use
    Strong magnetic seal allows one-handed operation, prevents possible twisting and tearing of the membrane. Membrane guide on the base helps position membrane easily.
  • Safety
    PES (Polyether sulfone) construction, resistant to a wide range of chemicals and high temperature, sturdy and unbreakable.
  • Reusable
    Withstands numerous autoclave cycles, save money and energy consumption
  • Invention Patent
    MF magnetic filter holder was awarded the United States (US 9.452.373B1), Taiwan (I551337) and China (ZL 2015 2 0050109.6) invention patent.

Youtube Video :

MF Magnetic Filter Holder - One to Many

Attribute nameAttribute value
Pack Size1
ModelMF 3
Funnel Capacity300ml
Filter diameter47mm
