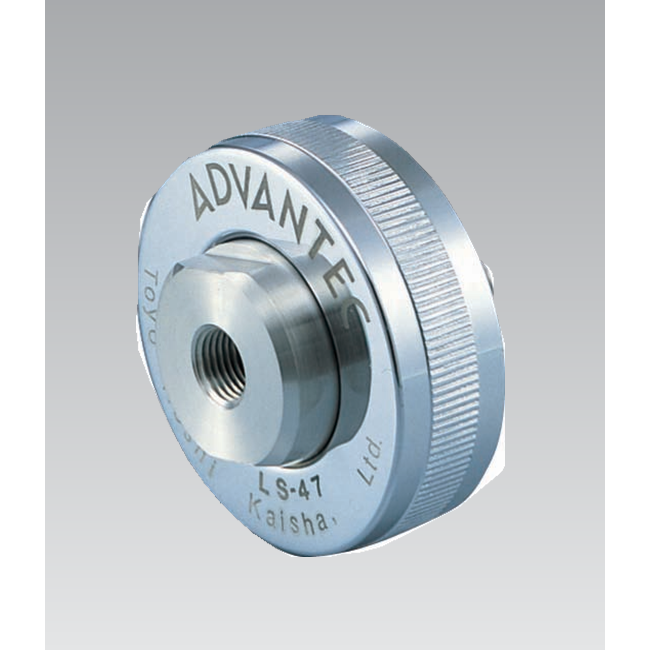

LS-47 GAS LINE HOLDER SUS304 LS-47

LS-47 GAS LINE HOLDER SUS304
SKU: LS-47
Manufacturer: Advantec
Pack Size: 1

Stainless Steel Gas Line Holders

  • Female threaded locking ring enables filter changes without removing the holder from connecting gas lines
  • Dual support screens protect the membrane filter from reverse pressure surges and allow forward and reverse flow from either inlet or outlet

APPLICATIONS

  • Ultraclean and sterilize air and other gases including com- pressed gases
  • In-line between pressurizing source (pump or gas cylinder) and dispensing vessel

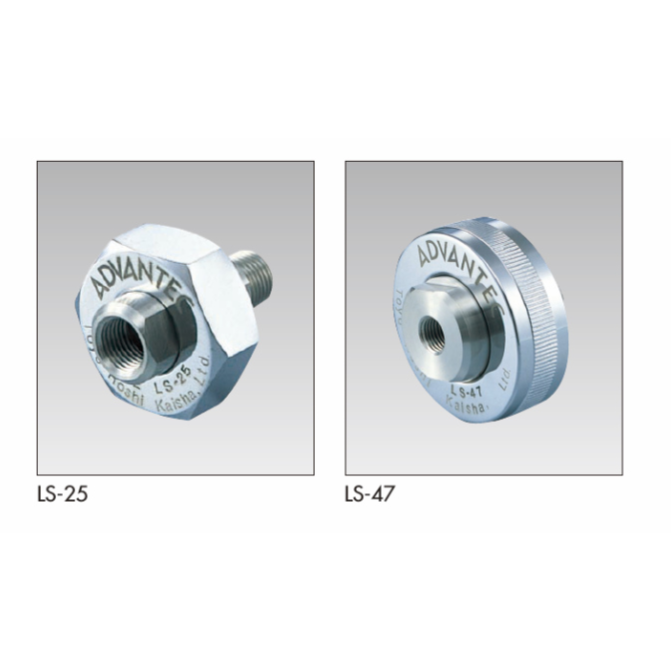

LS-25

LS-47

Materials:

Body and support screen

Body:SUS304 Support screen:SUS316

Locking ring

Chrome-plated brass

Gaskets

PTFE

O-ring (standard)

PTFE

Silicone

Connections:

Inlet

1/4" NPTF

Outlet

1/4" NPTM

Pressure:

Inlet

0.49 MPa (71 psi)

Differential

0.19 MPa (29 psi)

Filter Specifications:

Filter size

25 mm

47 mm

Prefilter size

25 mm

47 mm

Filtration area

3.8 cm2

12.5 cm2

Dimensions:

Diameter

38 mm (1.5")

69 mm (2.7")

Length

50 mm (2.0")

57 mm (2.2")

Weight:

0.3 kg (0.63 lb)

0.8 kg (1.75 lb)

Attribute nameAttribute value
Pack Size1
