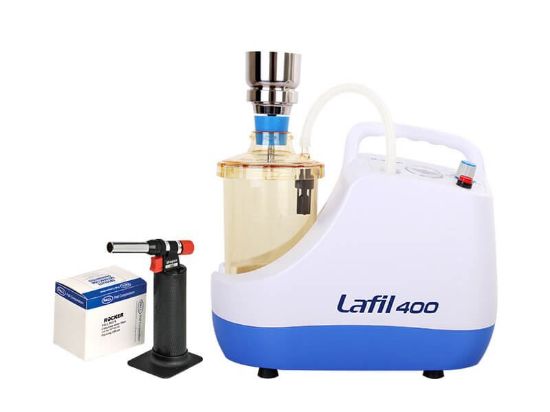

Lafil 400, Oil Free Vacuum Pump, AC220V, 50Hz  with EU plug, 197400-22

Lafil 400 - SF 10, Filtration System
SKU: 197400-22
Manufacturer: Rocker



Oil Free Vacuum Pump Features



  • Compact and safe operation

Lafil 400 vacuum pump is an unique filtration unit by combining vacuum source with optional filtration ware.

Its compact design can save much bench space than the traditional ones.

With a fence-like platform design, it can prevent user’s negligence from tipping over the waste bottle.

  • No air pollution, maintenance free

Lafil 400 pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

  • Thermal protection device

Every motor of Lafil series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.



Oil Free Vacuum Pump Applications

Vacuum filtration

Microbial detection

Suspended solid test



▸ Lafil 400 : 220V/50Hz
▸ Max. power: 80W
▸ Max. current: 0.4A
▸ Max. vacuum: 25 mbar abs.
▸ Max. flow rate: 20 L/min
▸ Motor rotation speed: 1450 RPM
▸ Horse power: 1/6 HP
▸ Noise level: 52 dB
▸ Hose barb: 5/16 inch (8 mm)
▸ Net weight: 7.0 Kg
▸ Dimension (LxWxH): 35 x 24.3 x 29 cm
▸ Vacuum Regulator: Yes
▸ Overflow protection: No



Oil Free Vacuum Pump Ordering Information



Product Part NumberProduct

197400-11

197400-22

Lafil 400, Oil Free Vacuum Pump AC110V, 60Hz

Lafil 400, Oil Free Vacuum Pump AC220V, 50Hz

Attribute nameAttribute value
ModelLafil 400
TypeOil Free Vacuum Pump
