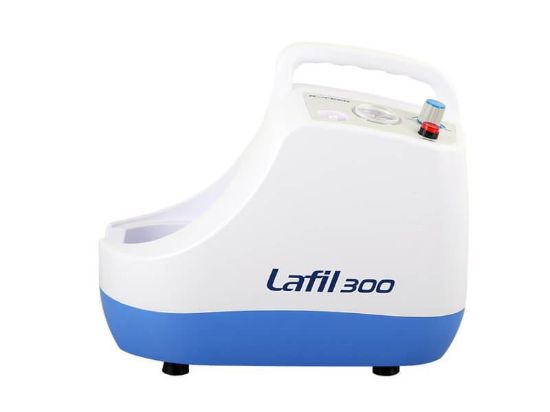

Lafil 300C, PTFE Coated Chemical Resistant Vacuum Pump, AC220V, 50Hz  with EU plug, 197330-22

Lafil 300C PTFE Coated Vacuum Pump
SKU: 197330-22
Manufacturer: Rocker



PTFE Coated Vacuum Pump Features:

◆ Good chemical resistance

The diaphragm chamber of Lafil 300C coated with PTFE can offer good resistance to a wide range of corrosive gases except strong acid and alkali.

◆ Compact and safe operation

Lafil 300C series vacuum pump is a unique filtration unit by combining vacuum source with optional filtration ware. Its compact design can save much bench space than the traditional ones. With a fence-like platform design, it can prevent user’s negligence from tipping over the waste bottle.

◆ No air pollution, maintenance free

Lafil 300C vacuum pump is driven by diaphragm, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

◆ Thermal protection device

The motor of Lafil 300C series pumps has a built-in thermal protection device to shut off the pump automatically when

overheated and then resume working when the temperature cools down.

PTFE Coated Vacuum Pump International Certificate:

◆ CE certification



▸ Lafil 300C: 220V/50Hz
▸ Max. power: 60W
▸ Max.current: 0.3A
▸ Max.vacuum: 99 mbar abs.
▸ Max.flow rate: 20 L/min
▸ Motor rotation speed: 1450 RPM
▸ Horsepower: 1/8 HP
▸ Noise level: 50 dB
▸ Hose barb: ID8 (5/16 inch)
▸ Net weight: 5.9 Kg
▸ Dimension (L*W*H): 35 x 24.3 x 29 cm
▸ Vacuum regulator: Yes



PTFE Coated Vacuum Pump Applications:

◆ Solvent purification

◆ Solid-Phase Extraction (SPE)

◆ Vacuum filtration



PTFE Coated Vacuum Pump Ordering Information

Product Part NumberProduct

197330-11

197330-22

Lafil 300C, PTFE Coated Chemical Resistant Vacuum Pump AC110V, 60Hz

Lafil 300C, PTFE Coated Chemical Resistant Vacuum Pump AC220V, 50Hz





Attribute nameAttribute value
ModelLafil 300C
TypePTFE Coated Vacuum Pump
