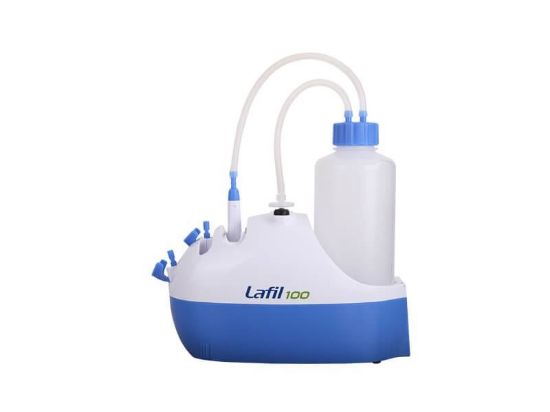

Lafil 100eco Lafil bio suction system |
---|
GENERAL DATA |
Max. vacuum | 480 mbar abs. |
Max. flow rate | 4.0 L/min |
Aspiration rate | 9 mL/sec |
Noise Level | 50 dB |
ELECTRICAL DATA |
Voltage | AC100-240V |
Max. Power | 6W |
Max.current | DC12V, 0.5A |
CAPACITY |
Bottle/Flask capacity | PP vacuum bottle, 1000 mL |
Part Number | Description |
197110-01 | Lafil 100eco, Portable Suction System with AC100~240V adaptor, US Plug |
197110-02 | Lafil 100eco, Portable Suction System with AC100~240V adaptor, EU Plug |
197100-10 | PP vacuum bottle, 1000 mL |
197000-60-500 | Glass bottle with GL45 suction cap, 500 mL |
197100-48 | Anti-UV Cloth Cover |
199100-76 | 1-channel tip adaptor (150 mm) |
Portable Suction System Product Features :
◆ All in One, space-saving
Lafil 100 series suction system integrates vacuum sources, waste bottle and suction kit into a system. Saves 65% bench space.
◆ Ideal for operation in laminar flow
The compact size of Lafil 100 series suction system allows for work in laminar flow. Anti-UV cloth cover is optional.
◆ Safe and convenient
(1) Fence-like platform design prevents negligence from tipping over the waste bottle.
(2) Syringe filter prevents liquid from overflowing when bottle is full.
(3) Storage rack provides a smart solution for suction adaptors accommodation.h cover is optional.
◆ Eco control feature (Lafil 100eco)
Engery-saving Lafil 100eco will stop operating when achieving the maximum vacuum, and resume working when operated again. The pump performance can be fully optimized by reducing electricity consumption and keeping the workplace quiet.
*Lafil 100eco is automatically shut off at 480 mbar and restarted at 813 mbar.
◆ Autoclavable
All supplied fittings are made of POM material available for autoclave.
Portable Suction System International certification:
◆ CE certification
Youtube Video :
Lafil 100 Vacuum Filtration System for Laboratory cell culture
