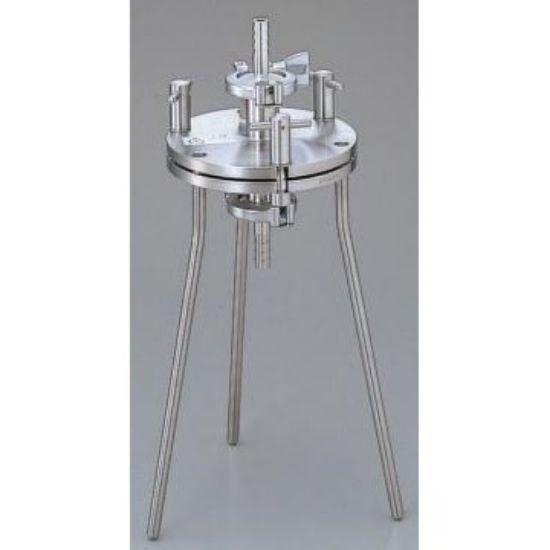

Picture of KS-142-ST LARGE SANITARY HOLDER SUS304 , KS-142-ST

KS-142-ST LARGE SANITARY HOLDER SUS304 , KS-142-ST

KS-142-ST LARGE SANITARY HOLDER SUS304

SKU: KS-142-ST

Manufacturer: Advantec

Pack Size: 1

Large Sanitary Stainless Steel Holders – 90, 142, 293 mm

Sanitary connections are threadless and can be completely disassembled for thorough cleaning
Designed for minimal resistance and maximal flow
Removable wing nuts tighten easily by hand to seal membrane
Both inlet and outlet plates clearly marked with identifying serial number

Applications

Ultraclean or sterilize gases or liquids
Use with a pressure vessel for large volumes and batch type operations

		KS-90-ST	KS-142-ST	KS-293-ST
Materials:
Body		SUS304
Support screen		SUS316/PTFE coated photoetched stainless steel
O-rings (standard)		Silicone
Gasket		PTFE
Connections:
Inlet / Outlet		1" sanitary fitting to 16 mm 5/8") hose barb		1.5" sanitary fitting to 16 mm 5/8") hose barb
Pressure:
Inlet		0.68 MPa
Differential		0.29 MPa
Weight:		4 kg (8.8 lb)	6 kg (13 lb)	19 kg (42 lb)
Membrane Compatibility:
Membrane filter size		90 mm	142 mm	293 mm
Prefilter size		76 mm	124 mm	257 mm
Filtration area		45.3 cm2	113 cm2	530 cm2

Attribute name	Attribute value
Pack Size	1
