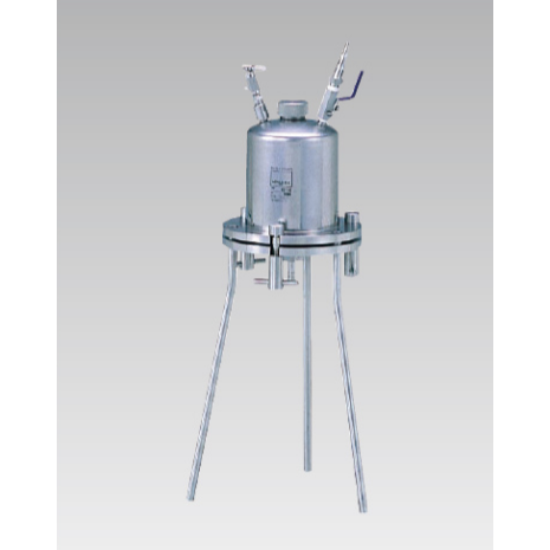

KST-142 PRESSURE HOLDER WITH RESERVOIR SUS304 , KST-142

KST-142 PRESSURE HOLDER WITH RESERVOIR SUS304

SKU: KST-142

Manufacturer: Advantec

Pack Size: 1 Pack Size: 1

Large Stainless Steel Holders with Reservoirs

Designed for filtering small batches of liquid without having to use a separate pressure vessel
Separate ports for pressurizing the reservoir and for adding additional sample
Membrane sealed internally by hand-tightening locking wing nuts

Applications

Optional back pressure screen recommended for intermittent fill operations

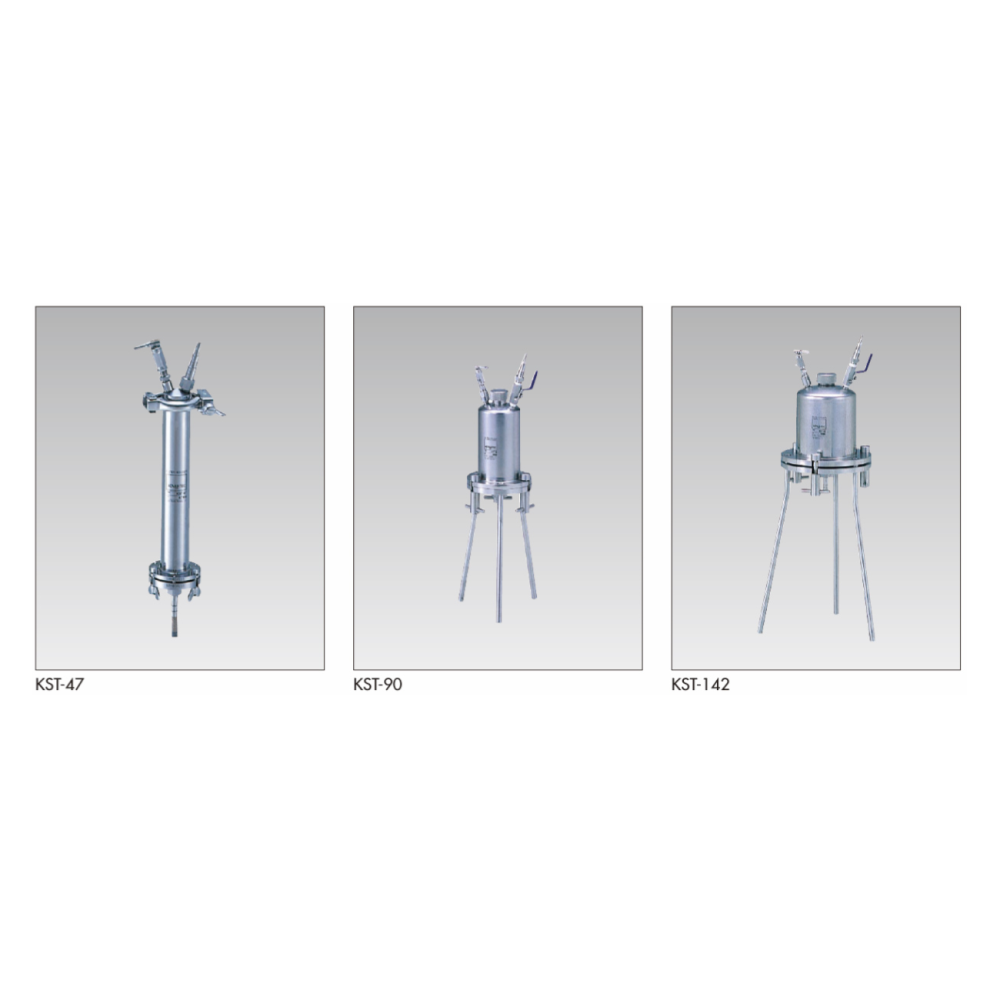

	KST-47	KST-90	KST-142
Materials:
Body	SUS304
Support screen	Photoetched SUS316	PTFE coated photoetched SUS316
O-rings (standard)	Silicone
Gasket (standard)	Silicone/PTFE	PTFE
Connections:
Inlet	1/4" PS	1/4" PT
Inlet adapter	Stepped hose barb (7 mm, 10.5mm, 13mm)	Ball valve with stepped hose barb (7 mm, 10.5 mm, 13 mm)
Outlet	1/4" PS	3/4" PS
Outlet adapter	9.5 mm hose barb	11 mm hose barb
Pressure:
Inlet	0.49 MPa (71 psi)
Differential	0.29 MPa (42 psi)
Vent relief valve	0.44 ± 0.04 MPa (64 ± 6 psi)
Weight:	1 kg (2.2 lb)	5 kg (11 lb)	6 kg (13 lb)
Capacity:	200 mL	750 mL	1,500mL
Membrane Compatibility:
Membrane filter size	47 mm	90 mm	142 mm
Prefilter size	35 mm	76 mm	124 mm
Filtration area	12.5 cm2	45.3 cm2	113 cm2
