KS142UH MULTI-MEDIA HOLDER 304SS , KS-142-UH

KS142UH MULTI-MEDIA HOLDER 304SS
SKU: KS-142-UH
Manufacturer: Advantec
Pack Size: 1



Multi-Media Pressure Sealing Holders

  • Dual sealing mechanism compresses the filter between the inside wall of the outlet plate and the O-ring on the outer edge
  • Broad range of media thickness, including filter pads, can be used

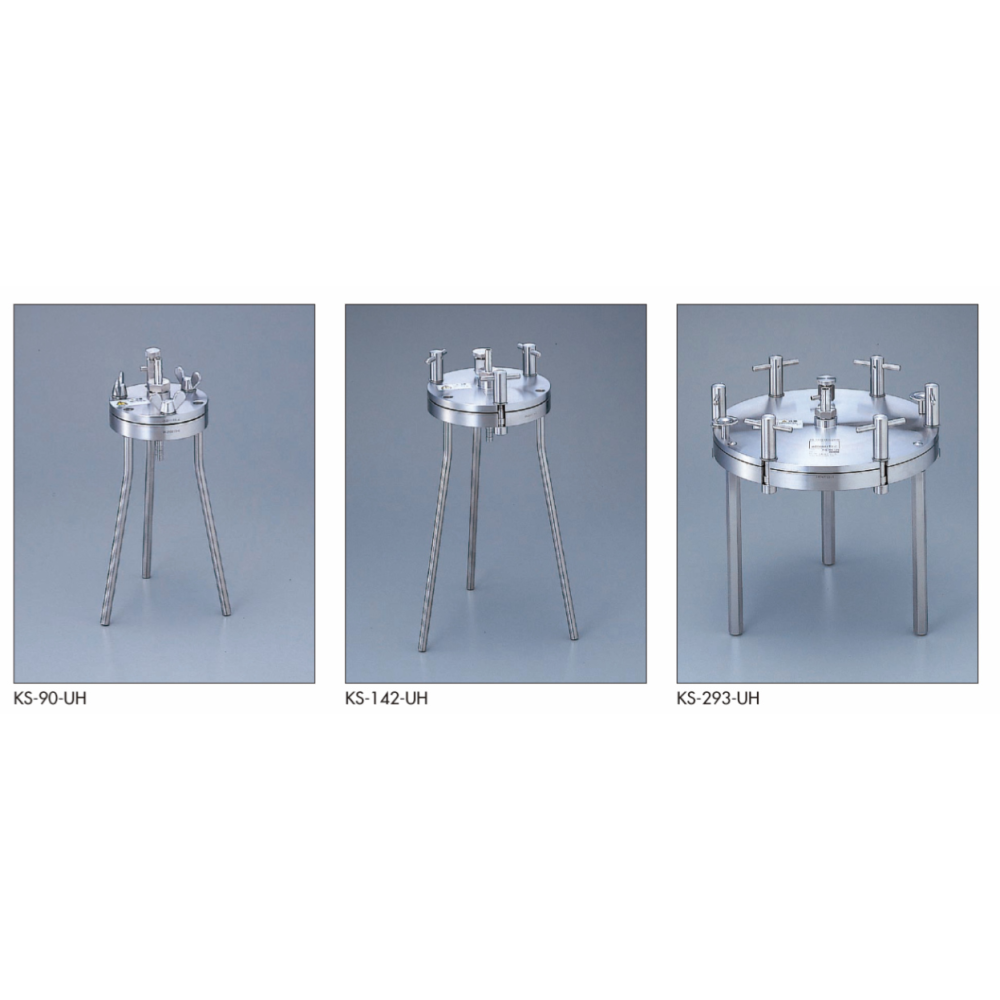

KS-90-UH

KS-142-UH

KS-293-UH

Materials:

Body

SUS304

Support screen

SUS316/PTFE coated photoetched stainless steel

O-ring

Silicone

Connections:

Inlet/Outlet

3/4" PS

Adapter

11 mm hose barb

16 mm hose barb

Pressure:

Inlet

0.68 MPa (99 psi)

Differential

0.29 MPa (42 psi)

Weight:

4.5 kg (9.9 lb)

7 kg (15.4 lb)

21 kg (46 lb)

Membrane Compatibility:

Membrane filter size

90 mm

142 mm

293 mm

Prefilter size

76 mm

124 mm

257 mm

Filtration area

45.3 cm2

113 cm2

530 cm2

Attribute nameAttribute value
Pack Size1
