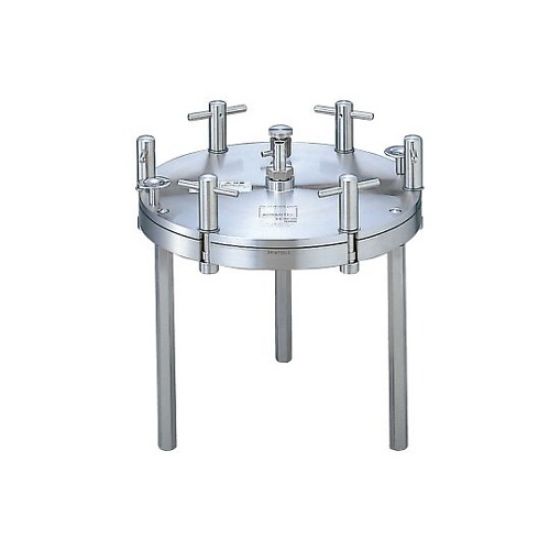

KS-293 LARGE PRESSURE FILTER HOLDER SUS304, KS-293

KS-293 LARGE PRESSURE FILTER HOLDER SUS304

SKU: KS-293

Manufacturer: Advantec

Pack Size: 1

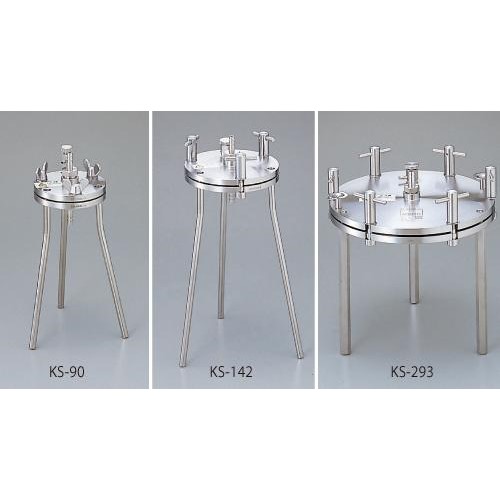

Large Standard Stainless Steel Holders – 90, 142, 293mm

Seal membrane by hand tightening locking wing nuts
Optimal holder design minimizes resistance and maximizes flow rate
Each unit labeled with identifying serial numbers on the outside of both the inlet and outlet plates

Applications

Use in-line for filtering gases or liquids
Use with pressure vessel for batch type operations

	KS-90	KS-142	KS-293
Materials:
Body	SUS304
Support screen	SUS316/PTFE coated photoetched stainless steel
O-rings (standard)	Silicone
Gasket	PTFE
Connections:
Inlet / Outlet	3/4" PS to 11 mm (3/8") hose barb		3/4" PS to 16 mm (5/8") hose barb
Pressure:
Inlet	0.68 MPa (99 psi)
Differential	0.29 MPa (42 psi)
Weight:	4 kg (8.8 lb)	6 kg (13 lb)	19 kg (42 lb)
Membrane Compatibility:
Membrane filter size	90 mm	142 mm	293 mm
Prefilter size	76 mm	124 mm	257 mm
Filtration area	45.3 cm2	113 cm2	530 cm2

Attribute name	Attribute value
Pack Size	1
Filter diameter	293mm
