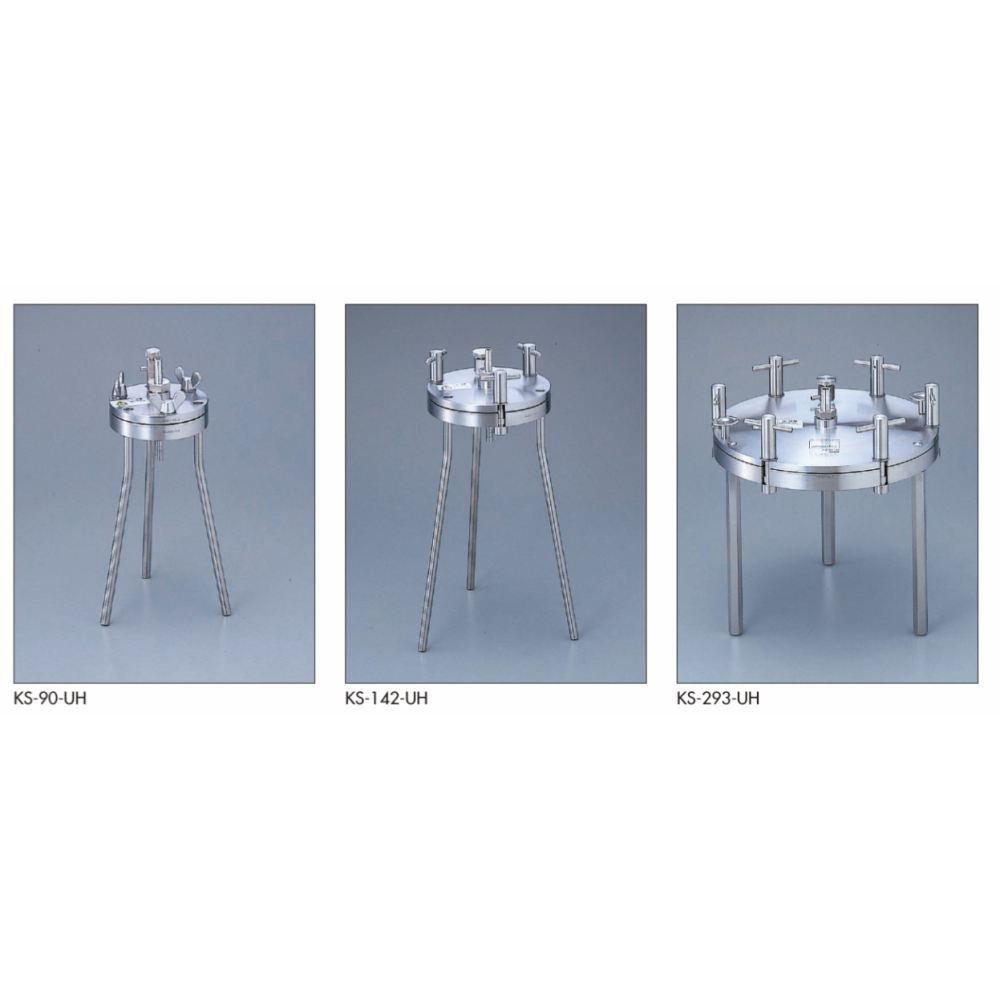

KS90UH MULTI-MEDIA HOLDER 304SS, KS-90-UH

KS-90-UH

KS-142-UH

KS-293-UH

Materials:

Body

SUS304

Support screen

SUS316/PTFE coated photoetched stainless steel

O-ring

Silicone

Connections:

Inlet/Outlet

3/4" PS

Adapter

11 mm hose barb

16 mm hose barb

Pressure:

Inlet

0.68 MPa (99 psi)

Differential

0.29 MPa (42 psi)

Weight:

4.5 kg (9.9 lb)

7 kg (15.4 lb)

21 kg (46 lb)

Membrane Compatibility:

Membrane filter size

90 mm

142 mm

293 mm

Prefilter size

76 mm

124 mm

257 mm

Filtration area

45.3 cm2

113 cm2

530 cm2
