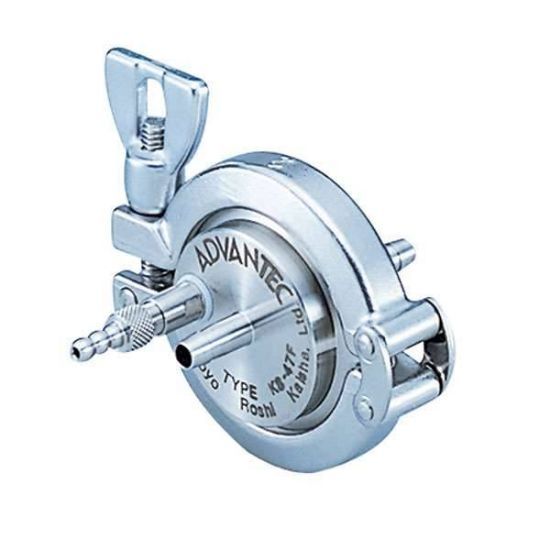

KS-47F SANITARY IN-LINE HOLDER 304SS KS-47F

KS-47F SANITARY IN-LINE HOLDER 304SS
SKU: KS-47F
Manufacturer: Advantec
Pack Size: 1

Sanitary In-Line Stainless Steel Holders

  • Sanitary inlet and outlet connections are non-threaded and can be completely disassembled for thorough cleaning
  • 47 mm holder features vent to allow air venting on upstream side of the membrane at any time during filtration

APPLICATIONS

  • Point of use filtration on sterile filling machines
  • Flow decay studies for scale up to larger filtration systems
  • Liquid or gas



KS-25F

KS-47F

Materials:

Body and support screen

Body:SUS304 Support screen:SUS316

O-rings

FPM and Silicone

Gasket

PTFE

Connections:

Inlet/Outlet

6 mm (0.24") OD barb

8 mm (0.32") OD barb

Pressure:

Inlet

0.49 MPa (71 psi)

Differential

0.29 MPa (42 psi)

Weight:

0.45 kg (1 lb)

0.9 kg (2 lb)

Dimensions:

Diameter (without clamp)

50 mm (2.0")

64 mm (2.5")

Length (with vent valve)

72 mm (2.8")

78 mm (3.1")

Membrane Compatibility:

Filter size

25 mm

47 mm

Prefilter size

21 mm

35 mm (47 mm)*

Filtration area

3.8 cm2

12.5 cm2
