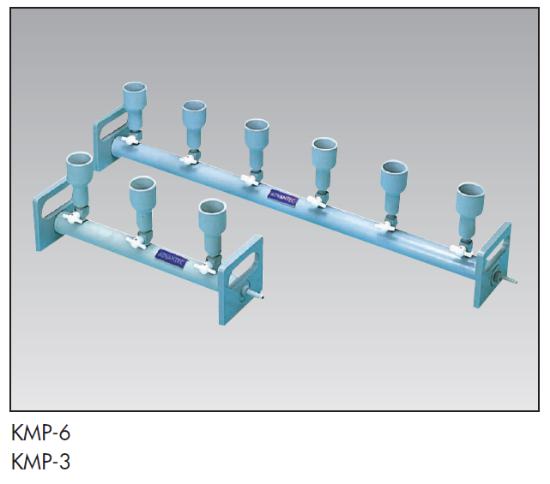

KMP-3 PVC MANIFOLD , KMP-3

Materials:

Body and branches

Polyvinylchloride (PVC)

Valves

PTFE stopcock, PVC body

Connections:

Outlet

1/4" male PT to hose barb fitting connects

main manifold to 11mm ID vacuum tubing

Cup

Accepts #8A and #8B stopper

Temperature:

Maximum

60°C (140°F)

Dimensions:

L x W x H

Distance between stations

(center to center)

Weight

cm

cm

kg

3 station

45.1 x 12 x 17.8

14

1.5

6 station

87.6 x 12 x 17.8

14

2.5
