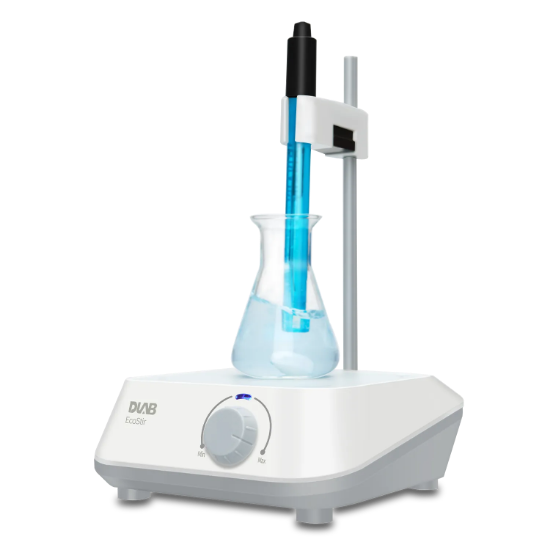

Picture of EcoStir(with square work plate) EcoStir Square Plate Magnetic Stirrer 8030197000

Picture of EcoStir(with square work plate) EcoStir Square Plate Magnetic Stirrer 8030197000

Picture of EcoStir(with square work plate) EcoStir Square Plate Magnetic Stirrer 8030197000

EcoStir(with square work plate) EcoStir Square Plate Magnetic Stirrer 8030197000

EcoStir(with square work plate), 120x115mm

SKU: 8030197000

Manufacturer: Dragon Lab

Pack Size: 1

EcoStir Square Plate Magnetic Stirrer

Compact design with small footprint, 12V voltage available for mobile labs
Square work plate supports 1.5L stirring capacity
Holder with clamp for pH electrode or other sensor
Default PET top provides excellent chemical resistance
Extra colorful stickers satisfy DIY design by yourself
Maintenance free brushless DC moto
An economical choice of a reliable & durable magnetic stirrer with an electrode holder for stable & powerful stirring ability

Specifications	EcoStir
Work plate Size	120×115mm
Work plate material	PET
Motor type	Brushless DC motor
Stirring positions	1
Max. stirring quantity[H2O]	1.5L
Max. magnetic bar[length]	40mm
Speed range	300-2000rpm
Speed setting	Scale
Protection class	IP21
Motor output power	1.2W
Power	7.2W
Voltage	DC12V，100-240V,50/60Hz
Dimension [W x D x H]	150x144x54mm
Weight	0.3kg
Permissible ambient temperature and humidity	5-40°C,80%RH

Cat. No.	P/N	Descriptions	Power supply
8030197000	EcoStir(with square work plate)	120x115mm	Cn plug,100V-220V/50Hz/60Hz
			Euro plug,100V-220V/50Hz/60Hz

Attribute name	Attribute value
Pack Size	1
Type	Magnetic Stirrer
Model	EcoStir
Speed range	300-2000rpm
