DM0636 package1 - DM0636 Centrifuge & A30-15 rotor, 9015001123+19400040

DM0636 main body+ A30-15 rotor 19400040
SKU: 9015001123+19400040
Manufacturer: Dragon Lab



DM0636 main body+ A30-15 rotor 19400040

------------------------------------------------------

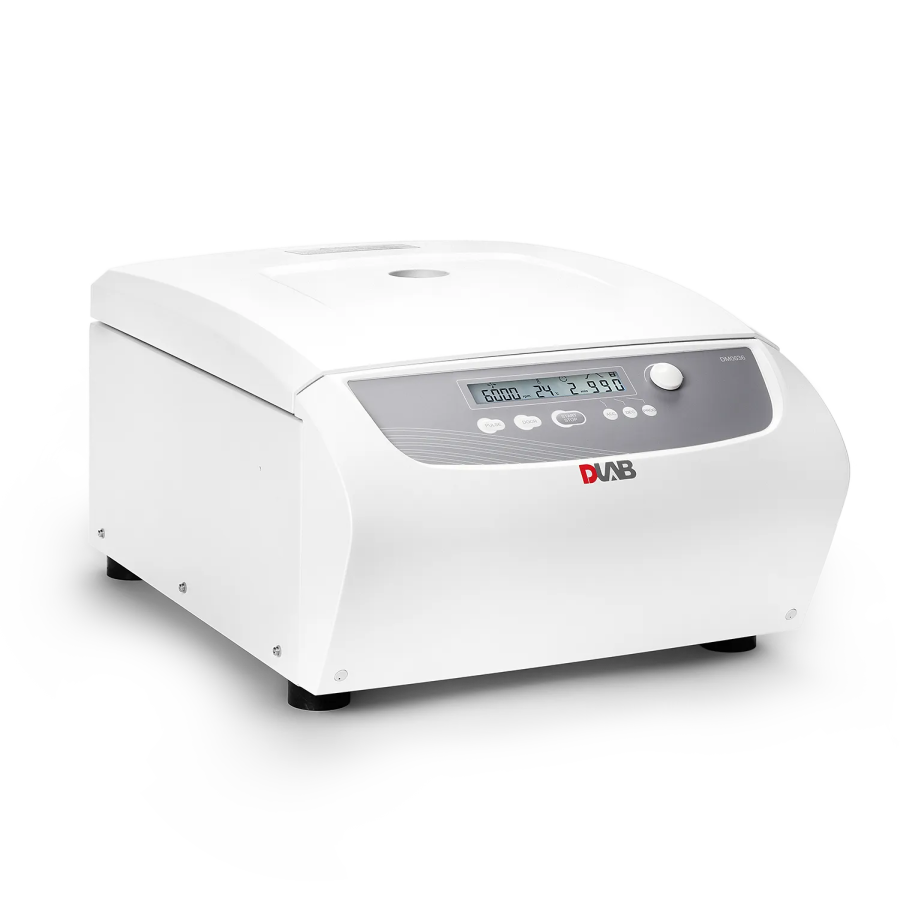

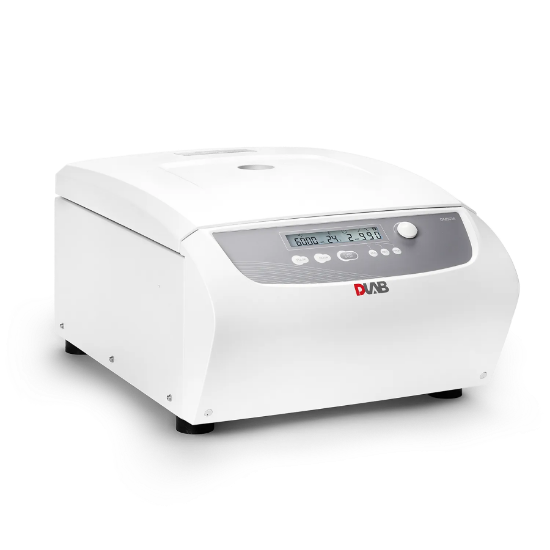

DM0636 Multi-Purpose Low-speed Centrifuge

• Speed from 300-6000 rpm

• Maximum capacity : 100 mLx4

•  9 Acceleration/10 Brake speed settings to ensure optimal separation

• A wide range of rotors optional(fixed angle and swing-out rotors)

• Automatic rotor identification

• Pulse Key for quick spin

•  9 procedures stored in memory makes the operation much simplified

•  Maintenance-free brushless DC motor

•  Suitable for tubes with caps, blood collection or urine tubes

• Comprehensive and versatile range of accessories

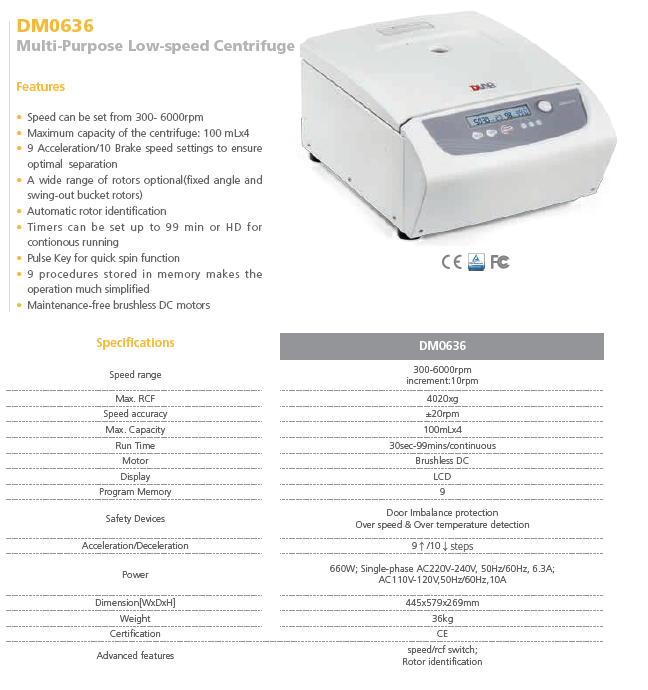

PRODUCT PARAMETERS
Cat.No.9115001123
Speed Range300-6000rpm increment:10rpm
Max. RCF4100xg
Speed Accuracy±20rpm
Rotor type-
Rotor Capacity100mLx4
Run Time30sec-99mins/continuous
DisplayLCD
Safety DevicesDoor Imbalance protection Over speed & Over temperature detection
Acceleration/Braking time[Sec]9↑/10↓steps
Program Memory9
MotorBrushless DC motor
Power660W; Single-phase AC220V-240V, 50Hz/60Hz, 6.3A; AC110V-120V,50Hz/60Hz,10A
Dimension[WxDxH]570×445×295mm
Weight36kg
Noise≤65dB
Advanced featuresspeed/rcf switch; Rotor identification

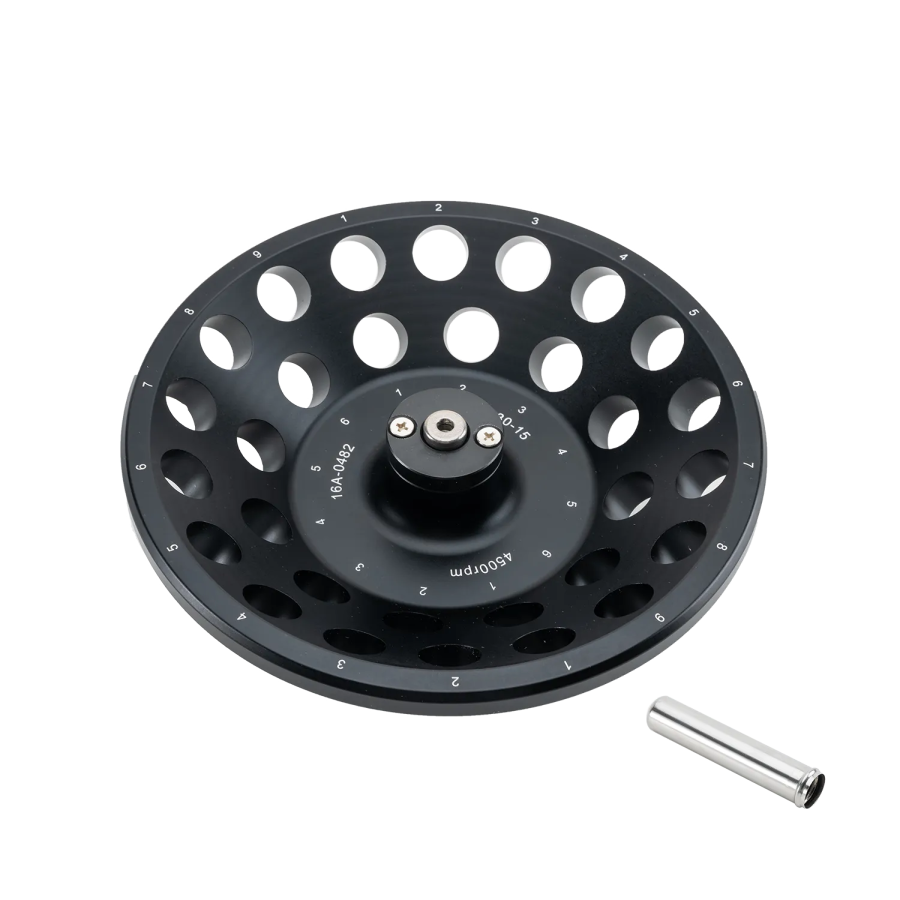

A30-15 (round bottom)(19400040)

for DM0636

Max. speed: 4500rpm

Max. RCF: 3210xg

Rotor capacity: 15mL×30

Rotor material: aluminum body and stainless steel adapter



Attribute nameAttribute value
Speed range300-6000rpm
Rotor Capacity100mL x4
