DISPOSABLE ULTRAFILTER UNIT USY-5 MW50K 24/PK

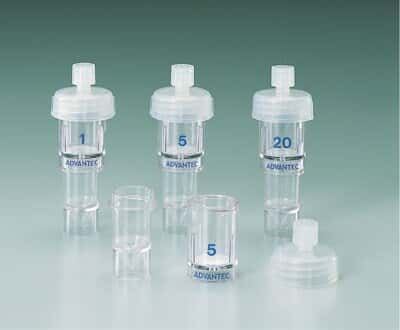

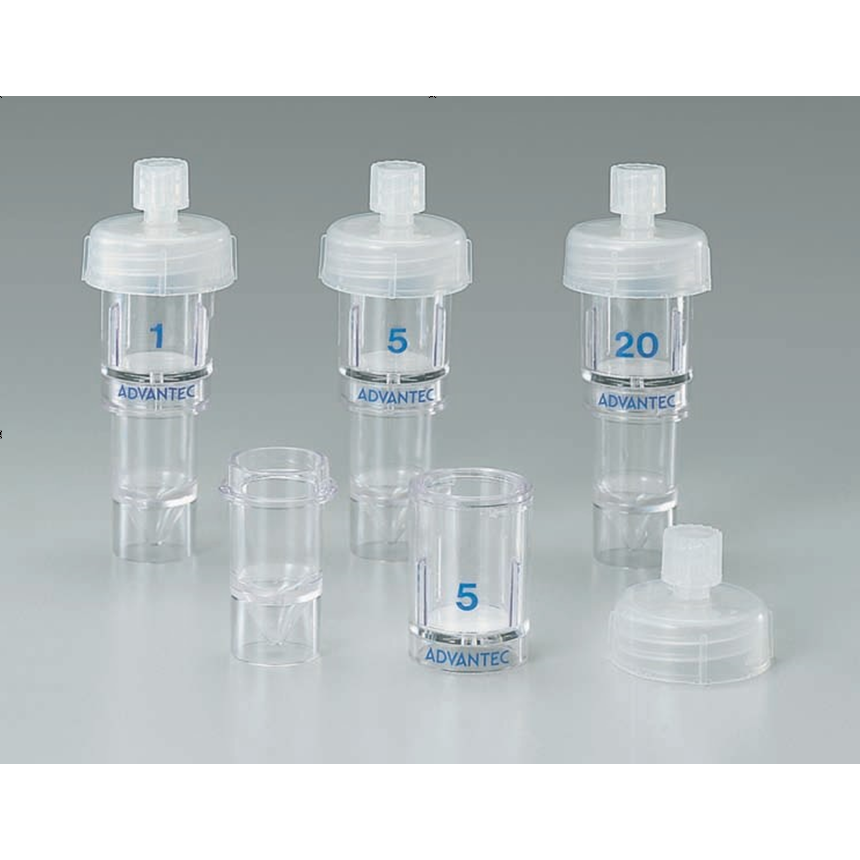

Disposable Ultrafilter Units

• Concentrate samples with built-in polysulfone ultrafilter
• Easy to use units require only syringe pressurization and do not require a centrifuge
• Clear housings enable visual confirmation of the filtration process
• Low adsorption for maximum sample recovery
• Disposable units for simple operation and clean-up

SPECIFICATIONS

• Molecular weight cut off 10,000(USY-1), 50,000(USY-5) and 200,000(USY-20)
• Filter diameter: 16mm
• Effective filtration area: 2.0cm2
• Cell capacity: 2mL
• Minimum recovery volume: 0.5mL
• Maximum temperature: 50°C
• Maximum pressure: 0.29MPa
• Material: Polysulfone (Filter), Acrylic(Cells) and Polypropylene(Caps)
• Sterilization: 25% Ethanol or 5% Formalin

OPERATION INFORMATION

1. Prepare unit for Dispense sample (approx. 1-2 mL) into the retentive cell by pipet.
2. Place cap on the retentive cell. Using a syringe, pressurize the unit with
3. Disassemble unit when filtration is complete: concentrated sample and/or filtrate can be analyzed.
