D1524R with automatic chamber lock, High Speed Micro-Centrifuge 9013111121

High Speed Refrigerated Micro-Centrifuge, with automatic chamber lock, customizable programs, adjustable acceleration/deceleration and other upgrades
SKU: 9013111121
Manufacturer: Dragon Lab
Pack Size: 1

D1524R

  • Electronic Magnetic door locking system - the lid can be closed with one hand soft touch
  • Precooling, the compressor automatically starts     cooling as long as the set temperature is lower than the ambient temperature
  • Sound indicator at the end of running.
  • Temperature range -20℃ to 40℃
  • Short pre-cooling time of only 7minutes from room temperature to 4℃
  • Up to 9 program storage capacity
  • 3-layer sealed rotors ensure safe centifugation
  • High-strength aluminum alloy rotor can be fully autoclavable at 121℃
  • Rotor imbalance detection alarm
  • Adjustable acceleration/deceleration at 9 levels allows gentle braking at low speed for better separation

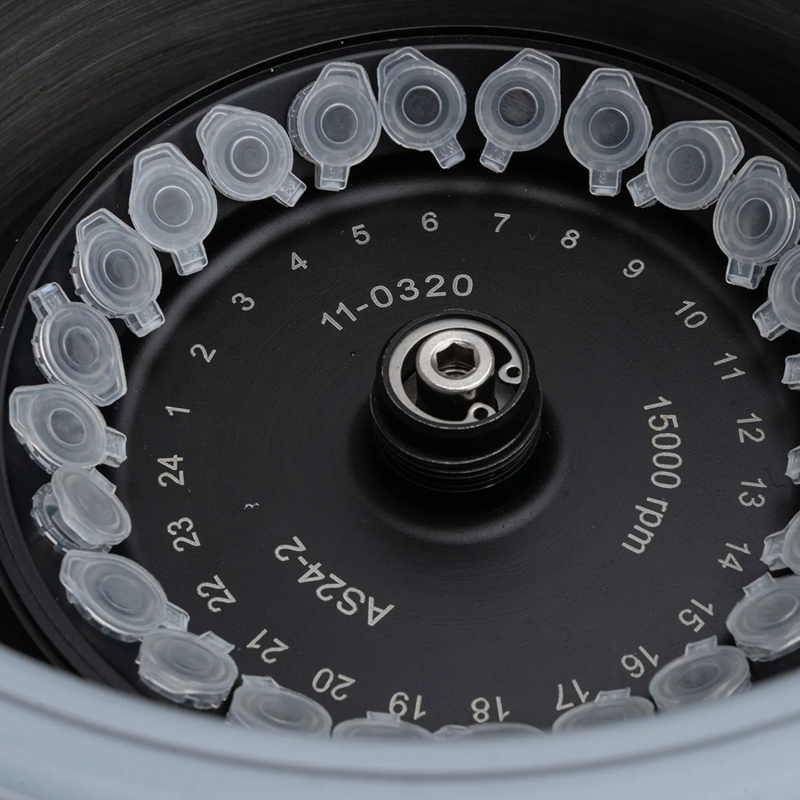

  • Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity
  • An external condensation tank prevents water accumulation within centrifuge chamber

Product certification

Complies with applicable CE, UKCA, FCC, and ICES requirements and has also obtained CB and cTUVus certifications.

Product Applications

Designed for high-speed separation, precipitation and purification of microsamples and pre/post-PCR processing. Applications include DNA/RNA extraction, PCR/qPCR, precipitation of PCR products, plasmid extraction, protein precipitation, antibody separation, enzyme reactions, cell-lysate processing, and cell/microbial pelleting. Biosealed rotor options cover 24×1.5/2 mL, 36×0.2/0.5 mL, 12×5 mL conical-bottom, 18×5 mL round-bottom and 4×PCR strip tubes. Nine acceleration/deceleration levels, Pulse mode and program storage improve efficiency and repeatability.



PRODUCT PARAMETERS
Cat.No.9013111121
Speed range15,000rpm (200-15,000rpm) in 100rpm increments.
Max. RCF21,380×g, step: 10×g
Speed accuracy-
Rotor type-
Rotor capacity1.5/2mL ×24 | 0.2/0.5mL ×36 | PCR-8 strips×4 | 5mL ×12 | 5mL×18
Run time30s-99 min; HOLD (continuous running)
Acceleration/Braking time25s↑25s↓
Temperature setting range-20℃- 40℃
DisplayLCD
Power500W
Voltage/FrequencySingle-phase,100-120V/200-240V, 50Hz/60Hz
Noise level≤56dB
Motor typeBrushless DC motor
Dimensions[WxDxH]332×553×283mm
Weight30kg
Safety performanceDual door lock, over-speed detection, over-temperature detection with Internal diagnosis system.
Other functionsRotation speed/RCF switchover, inching operation, running processindicator, sound alert. Adjustable acceleration/deceleration at 9 levels program storage capacity






Attribute nameAttribute value
Pack Size1
Speed range200-15000rpm
Rotor Capacity1.5mL/2mL ×24, 0.2mL/0.5mL ×36, PCR-8 strips×4, 5mL ×12 , 5mL x18
