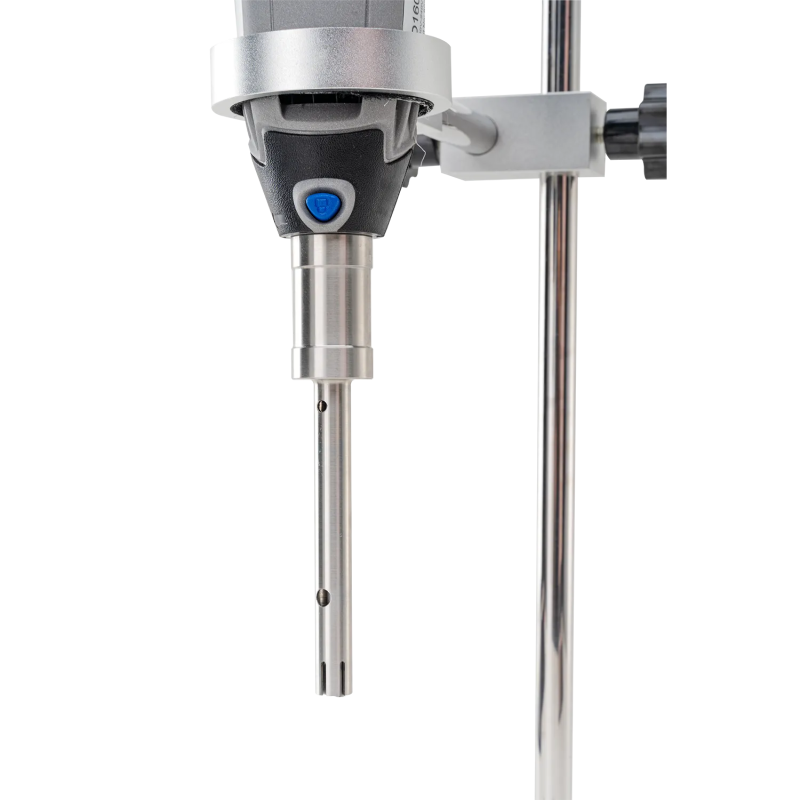

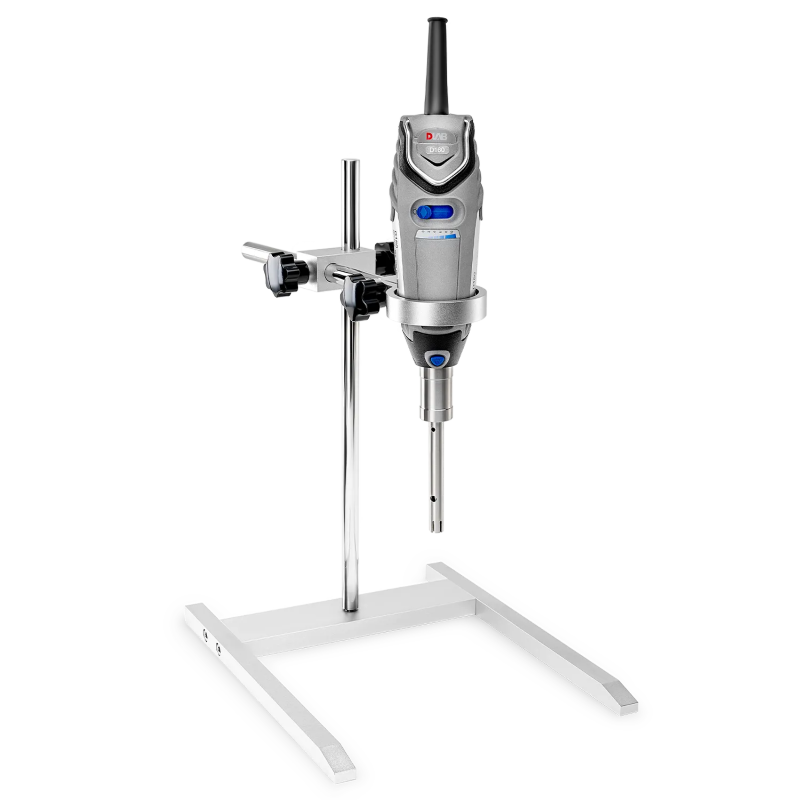

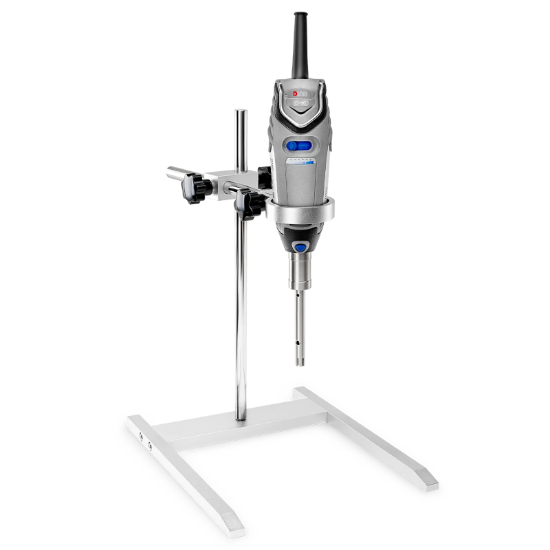

D-160 Package 1 (New version), 8034111000

D160 drive, H 370 Stand, DS-160/5 shaft，volumes from 0.1-50ml

SKU: 8034111000

Manufacturer: Dragon Lab

Pack Size: 1

D-160 Features:

• Ideal for manual operation due to its light weight and ergonomic design

• Processing range: 0.1-50mL or 1-250mL

• 316L stainless steel shafts are fully autoclavable and inert for highly corrosive solutions

• All shafts are interchangeable for easy dismantling and cleaning.

• 10 modes of motor speed from 8,000 to 30,000 rpm

PRODUCT PARAMETERS
Speed range	8000-32000rpm
Speed set	10 stage
Max. viscosity	5000mPas
Noise	72 dB(A)
Motor Type	AC carbon brush motor
Voltage,Frequency	110-120V/60Hz 220-240V/50-60Hz
Weight	0.54kg
Permissible ambient humidity	85% RH
Max linear velocity	6.3m/sec or 14m/sec
Working volume	0.1-50mL (Dispersing shaft DS-160/5)
Material of Dispersing Shaft	SS 316L stainless steel, PTFE
Protection class	IP20
Power	160W
Dimension [WxDxH]	45mmx55mmx190mm
Permissible ambient temperature	0-40℃
