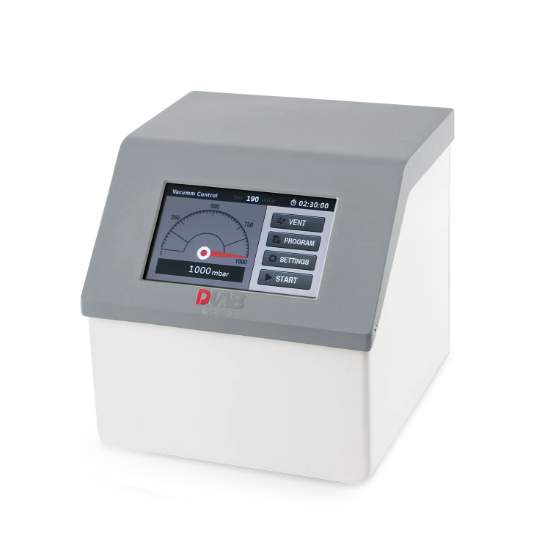

VC100,Vacuum controller Accessories of Rotary Evaporator 6031100300

Vacuum controller

SKU: 6031100300

Manufacturer: Dragon Lab

VC100 Vacuum Controller

Wide range of measurement and control, 1-1,000mbar
Two control modes available Single-point control and programmed control
Stores up to 5 programs, each containing up to 5 steps of programming control
Large TFT touch screen display control provides easy operation
All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials which effectively resists corrosion caused by organic solvents, water, acid and alkali
Built-in vent valve can feed inert gas into system equipment
One-click decompression allows easy installation and dismantling of vacuum system
Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection.
Can also be operated in the normally open status of pump
Reliable and functional design to fulfill essential needs of precise vacuum regulation

PRODUCT PARAMETERS
Cat.No.	6031100300
Vacuum setting range	1-1000mbar
Control mode	Single-point control mode, Programmed control mode
Control program	Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time)
Setting method	Touch screen setting
Display	5'' TFT
Sensor overload pressure	1,500mbar
Compatible conditions with vacuum pump	Power of 50Hz vacuum pump ≤400W；Power of 60Hz vacuum pump ≤500W
Connector diameter	8mm
Materials in contact with vapor	PTFE, PP, silicone and ceramics
Power	600W
Voltage,Frequency	110-240V,50/60Hz
Overall dimensions [WxDxH]	189x207x193mm
Weight	4.0kg
Permissible ambient temperature	10-40℃
Permissible ambient humidity	≤80% RH
