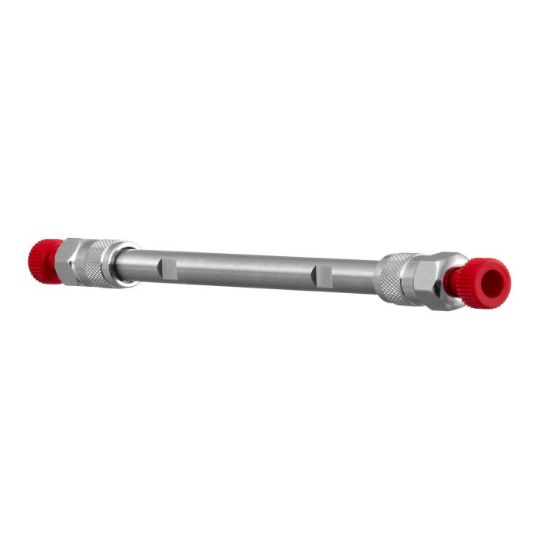

ASTRA® C18-HE HPLC column, 3.0 µm 50 mm × 3.0 mm, AST-5732-IG30

The ASTRA® brand extends new line of the ARION® HPLC columns.
SKU: AST-5732-IG30
Manufacturer: Chromservis



The ASTRA® brand extends new line of the ARION® HPLC columns.

  • Strict quality control of alkaline and heave metals content during silica gel production process (<10 ppm)
  • Narrow particle size and pore volume/size distribution
  • Unique production process ensuring high lot-to-lot reproducibility
  • High end-capping in gaseous phase

Main particle characteristics:

  • High proximity to the circle
  • Surface smoothness
  • Tight particle size distribution
  • No broken particles
  • No presence of clustered particles
  • No “Moon craters or mountains”



Parameters

Brand:Astra C18-HE
Category:Laboratory instruments and accessories / Chromatography / HPLC columns



ASTRA® C18-HE Silicagel

Endcappingin gaseous phase
USPCode L1
Mean particle diameter3.0±0.7 μm
Surface area340 m2/g
Carbon load17%
Proximity to the shape of Circle0.96±0.04
Temperature stability100 °C
pH stability2.0 to 9 (depends on buffer used)



Dimensions

ID3mm
LC column length50mm



Stationary Phases

Particle Size3µm
Pore Size100A
LC PhasesC18
BrandAstra C18-HE
Particle TypeFully Porous



Use

LC TechniqueHPLC/UHPLC
Attribute nameAttribute value
BrandASTRA
PhaseC18-HE
Column Size50x3mm
Particle size3 µm
