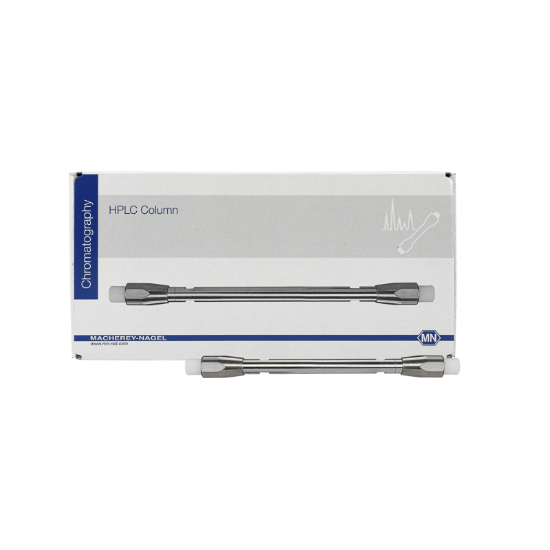

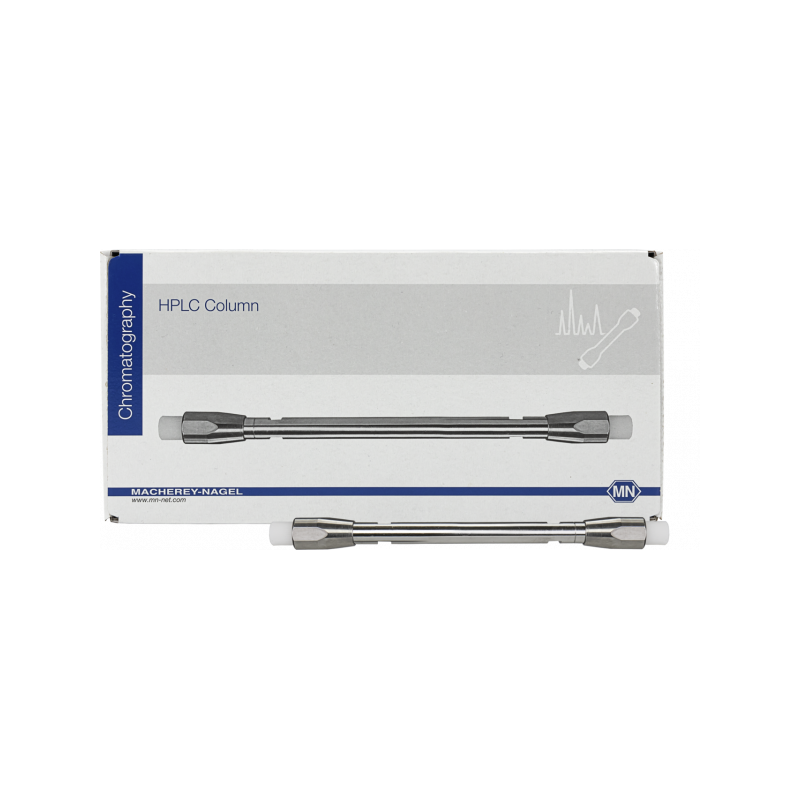

EC 100/2 NUCLEOSHELL Biphenyl, 2.7 µm 763634.20

EC HPLC column EC 100/2 NUCLEOSHELL Biphenyl, 2.7 µm length: 100 mm, ID: 2 mm pack of 1
SKU: 763634.20
Manufacturer: Machery Nagel

Hydrophobic phase with alternative selectivity compared to classical C18 modifications. The separation principle based on two retention mechanisms - π-π interactions and hydrophobic interactions. This provides better retention of aromatic and unsaturated substances. This stationary HPLC phase is based on core-shell technology silica gel particles and shows excellent performance under highly aqueous conditions. Suitable for LC/MS due to low bleeding characteristics.

Are you interested in real-world applications for this product? Click here to view the application notes.

MethodHPLC, analytical
BrandNUCLEOSHELL
Base materialNUCLEOSHELL - core-shell silica
PhaseNUCLEOSHELL Biphenyl
USP listingL11
Surface chemistryBiphenylpropyl modification
ModeReversed phase (RP)
TypeEC HPLC column (analytical)
HardwareStainless steel
Column length100 mm
Column inner diameter2 mm
Particle typeCore-shell, superficially porous particles (SPP)
Particle shapeSpherical
Particle size2.7 µm
Eluent in HPLC columnAcetonitrile – water
Recommended application(s)Antibiotics, Aromatic and unsaturated compounds, DNPH aldehydes, Hormones, Mycotoxins, Pesticides, Pharmaceuticals, Phthalates, Reversed phase, RP applications HPLC
EndcappedYes
Carbon content5.2 %
pH stability1.5–8.5
Pore size90 Å
Specific surface according to BET130 m²/g
Temperature stability (max)60 °C
Pressure stability (max)600 bar / 8700 psi
Storage temperature15–25 °C / 59–77 °F
Scope of delivery1x analytical HPLC column, instruction leaflet, certificate of analysis
Gross weight (incl. packaging)185 g / 0.41 lbs
Packaging dimensions115 x 235 x 50 mm / 4.53 x 9.25 x 1.97 Inch
Hazardous materialNo
Attribute nameAttribute value
MethodHPLC, analytical
BrandNUCLEOSHELL
PhaseBiphenyl
Column Size100x2mm
Particle size2.7 µm
