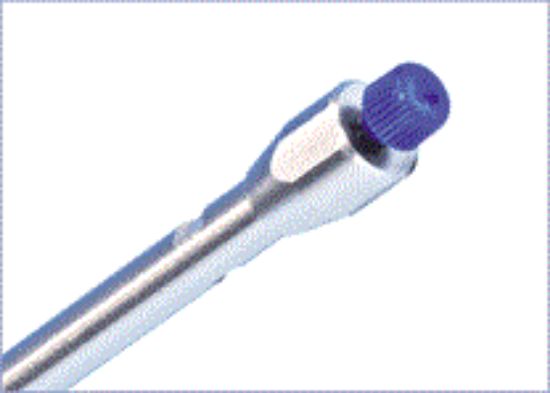

EC 4/3 NUCLEODUR Pi2, 3 µm 761811.30

HPLC guard column EC 4/3 NUCLEODUR Pi2, 3 µm length: 4 mm, ID: 3 mm pack of 3 - require Column Protection System guard column holder (REF 718966) - for analytical columns with 3, 4 , 4.6 mm ID
SKU: 761811.30
Manufacturer: Machery Nagel

For protection of your main HPLC column from contamination, it is recommended to use guard columns. These short columns are placed into a guard column holder. The guard column holder in combination with a guard column inside is installed between the injector and the HPLC column. This installation prevents chemical impurities to reach the main column. Because a contamination could form an irreversible bond with the column packing material (stationary phase) and this can result in shorter column life. If you want to prolong the lifetime of your main column, then these short columns can help you.

MethodHPLC, analytical
BrandNUCLEODUR
Base materialNUCLEODUR - high purity silica
PhaseNUCLEODUR π²
USP listingL11
Surface chemistryBiphenylpropyl modification
ModeReversed phase (RP)
TypeEC HPLC guard column (analytical)
HardwareStainless steel
Column length4 mm
Column inner diameter3 mm
Particle typeFully porous particles (FPP)
Particle shapeSpherical
Particle size3 µm
Eluent in HPLC columnAcetonitrile – water
Recommended application(s)Guard column, ideal protection for your main column, HPLC
EndcappedYes
Carbon content17.0 %
pH stability3.0–10.0
Pore size110 Å
Specific surface according to BET340 m²/g
Temperature stability (max)60 °C
Pressure stability (max)600 bar / 8700 psi
Storage temperature15–25 °C / 59–77 °F
Scope of delivery3x analytical HPLC guard columns
Gross weight (incl. packaging)23 g / 0.05 lbs
Packaging dimensions115 x 60 x 28 mm / 4.53 x 2.36 x 1.10 Inch
Hazardous materialNo
Attribute nameAttribute value
MethodHPLC, analytical
BrandNUCLEODUR
PhasePi2
Column Size4x3mm
Particle size3 µm
