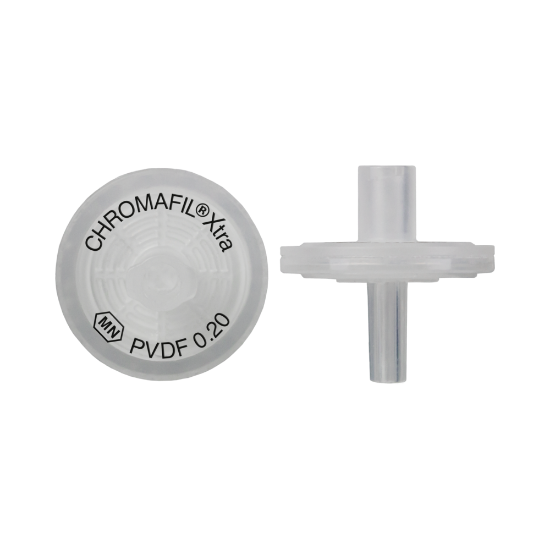

Picture of CHROMAFIL Xtra PVDF-20/13 729243

CHROMAFIL Xtra PVDF-20/13 729243

CHROMAFIL Xtra disposable syringe filters PVDF-20/13 membrane material: polyvinylidene difluoride pore dia.: 0.2 µm, membrane dia.: 13 mm colorless PP case, labeled inlet: Luer lock - outlet: Luer pack of 100
SKU: 729243
Manufacturer: Machery Nagel
Pack Size: 100

CHROMAFIL Xtra disposable syringe filters PVDF-20/13 membrane material: polyvinylidene difluoride pore dia.: 0.2 µm, membrane dia.: 13 mm colorless PP case, labeled inlet: Luer lock - outlet: Luer pack of 100

Inside the syringe filter polyvinylidene difluoride is used as membrane material. The hydrophilic PVDF membrane is suitable for filtration of 100 % aqueous samples, water-soluble oligomers and polymers like proteins. Extremely low binding capacity for proteins. Labeled for method validation and certification. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

MethodFiltration
BrandCHROMAFIL Xtra
TypeSyringe filter, labeled
Housing typeWheel-like shaped housing
HardwarePolypropylene (PP) housing with filter membrane
Membrane typePolyvinylidene difluoride (PVDF)
Membrane propertiesHydrophilic
Filter type13 mm
Effective membrane diameter*15.6 mm
Membrane pore size0.2 µm
Code typeLabeled
Color code (top)Labeled
Color code (bottom)Colorless
InletLuer lock (top)
OutletLuer tip (bottom)
Sample volume1 ≤ 5 mL
Recommended application(s)Hydrophilic membrane for UHPLC, core-shell and HPLC columns packed with particles < 3 µm, GC, SFC, Suitable for 100 % aqueous, polar, hydrophilic samples with low particle-load, Water-soluble oligomers and polymers like proteins
SterileNo
Binding capacity (proteins)Very low (20 µg / 25 mm)
Dead volume30 µL
Effective filtration area*1.9 cm²
Storage temperature15–25 °C / 59–77 °F
Packaging dimensions110 x 110 x 105 mm / 4.33 x 4.33 x 4.13 Inch
Gross weight (incl. packaging)205.6 g / 0.45 lbs
Hazardous materialNo
Remark*Standardized measurement since Mai 2023. The product has not been modified.
Attribute nameAttribute value
Pack Size100
MediaPVDF
Diameter13mm
Pore Size0.2um
TypeNon-Sterile
