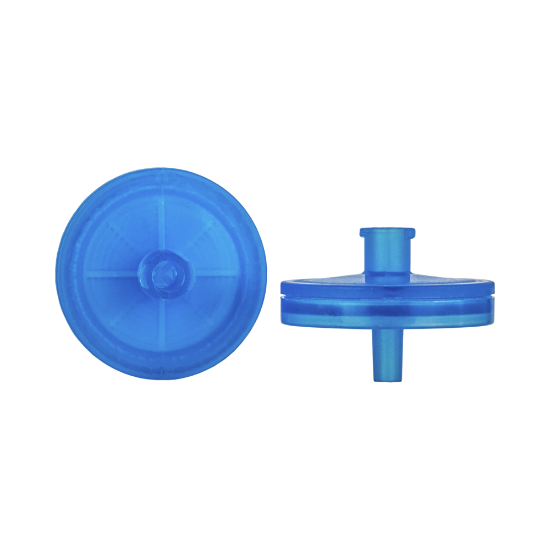

Picture of CHROMAFIL GF/RC-20/25 729050

CHROMAFIL GF/RC-20/25 729050

CHROMAFIL disposable syringe filters GF/RC-20/25 membrane material: glass fibre/regenerated cellulose pore dia: 1.0/0.2 µm, membrane dia: 25 mm color code above: blue / below: blue pack of 100
SKU: 729050
Manufacturer: Machery Nagel
Pack Size: 100

CHROMAFIL disposable syringe filters GF/RC-20/25 membrane material: glass fibre/regenerated cellulose pore dia: 1.0/0.2 µm, membrane dia: 25 mm color code above: blue / below: blue pack of 100

Combi syringe filters are recommended for solutions with a high load of particulate matter or for highly viscous solutions. These products combine a coarse glass fiber prefilter and a small-pore regenerated cellulose membrane as main filter. The hydrophilic RC membrane is for filtration of aqueous and organic – aqueous liquids, i.e. polar and medium polar sample solutions. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

Selling unit100 pieces, 400 pieces
MethodFiltration
BrandCHROMAFIL
TypeSyringe filter (combi)
Housing typeWheel-like shaped housing
HardwarePolypropylene (PP) housing with filter membranes
Membrane typeCombi - Glass fiber (GF) / Regenerated cellulose (RC)
Membrane propertiesHydrophilic - hydrophilic
Filter type25 mm
Effective membrane diameter*22 mm
Membrane pore size1 µm / 0.2 µm
Code typeColor coded
Color code (top)Blue
Color code (bottom)Blue
InletLuer lock (top)
OutletLuer tip (bottom)
Sample volume5-100 mL
Recommended application(s)Suitable for aqueous, polar, hydrophilic as well as mid-polar samples with high particle-load, Suitable for UHPLC, core-shell and HPLC columns packed with particles < 3 µm, GC, SFC
SterileNo
Binding capacity (proteins)Moderate–high
Dead volume80 µL
Effective filtration area*3.8 cm²
Storage temperature15–25 °C / 59–77 °F
Hazardous materialNo
Remark*Standardized measurement since Mai 2023. The product has not been modified.
Attribute nameAttribute value
Pack Size100
Pore Size0.2um
Diameter25mm
MediaGlass Fiber, Regenerated Cellulose
TypeNon-Sterile
