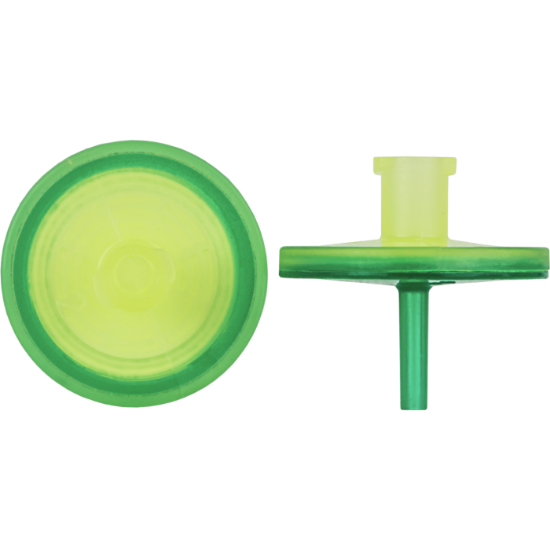

Picture of CHROMAFIL AO-20/15 MS 729048

CHROMAFIL AO-20/15 MS 729048

CHROMAFIL disposable syringe filters AO-20/15 MS membrane material: polyamide (nylon) pore dia.: 0.2 µm, membrane dia.: 15 mm color code above: yellow / below: green pack of 100
SKU: 729048
Manufacturer: Machery Nagel
Pack Size: 100

Inside the syringe filter polyamide is used as membrane material. The rather hydrophilic PA membrane is for filtration of medium polar organic-aqueous liquids. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

MethodFiltration
BrandCHROMAFIL
TypeSyringe filter, color coded
Housing typeWheel-like shaped housing
HardwarePolypropylene (PP) housing with filter membrane
Membrane typePolyamide (PA)
Membrane propertiesHydrophilic
Filter type15 mm
Effective membrane diameter*15.6 mm
Membrane pore size0.2 µm
Code typeColor coded
Color code (top)Yellow
Color code (bottom)Green
InletLuer lock (top)
OutletMinispike (bottom)
Sample volume1 ≤ 5 mL
Recommended application(s)For filtration of medium polar organic-aqueous liquids, Suitable for UHPLC, core-shell and HPLC columns packed with particles < 3 µm, GC, SFC
SterileNo
Binding capacity (proteins)Moderate–high
Effective filtration area*1.9 cm²
Storage temperature15–25 °C
Hazardous materialNo
Remark*Standardized measurement since Mai 2023. The product has not been modified.
Attribute nameAttribute value
Pack Size100
Pore Size0.2um
Diameter15mm
