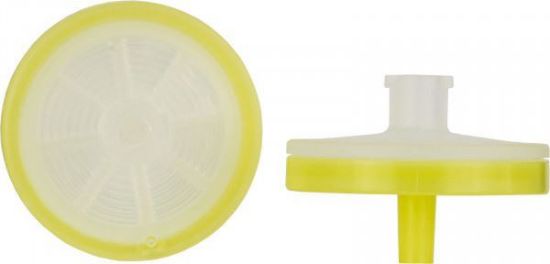

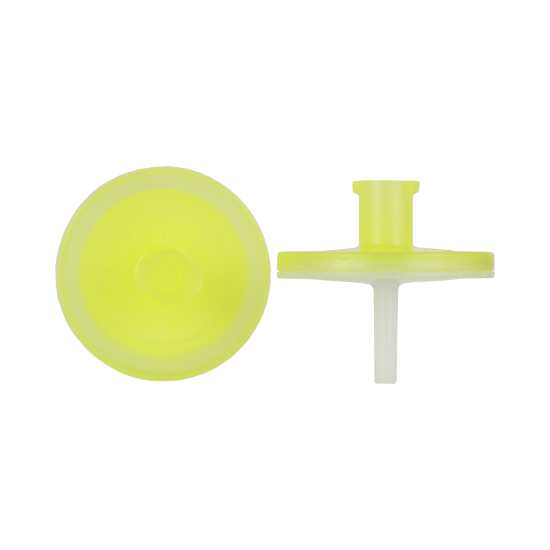

Picture of CHROMAFIL PVDF-20/15 MS 729043

CHROMAFIL PVDF-20/15 MS 729043

CHROMAFIL disposable syringe filters PVDF-20/15 MS membrane material: polyvinylidene difluoride pore dia.: 0.2 µm, membrane dia.: 15 mm color code above: yellow / below: white pack of 100
SKU: 729043
Manufacturer: Machery Nagel
Pack Size: 100



CHROMAFIL disposable syringe filters PVDF-20/15 MS membrane material: polyvinylidene difluoride pore dia.: 0.2 µm, membrane dia.: 15 mm color code above: yellow / below: white pack of 100

Inside the syringe filter polyvinylidene difluoride is used as membrane material. The hydrophilic PVDF membrane is suitable for filtration of 100 % aqueous samples, water-soluble oligomers and polymers like proteins. Extremely low binding capacity for proteins. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

MethodFiltration
BrandCHROMAFIL
TypeSyringe filter, color coded
Housing typeWheel-like shaped housing
HardwarePolypropylene (PP) housing with filter membrane
Membrane typePolyvinylidene difluoride (PVDF)
Membrane propertiesHydrophilic
Filter type15 mm
Effective membrane diameter*15.6 mm
Membrane pore size0.2 µm
Code typeColor coded
Color code (top)Yellow
Color code (bottom)White
InletLuer lock (top)
OutletMinispike (bottom)
Recommended application(s)Hydrophilic membrane for UHPLC, core-shell and HPLC columns packed with particles < 3 µm, GC, SFC, Suitable for 100 % aqueous, polar, hydrophilic samples with low particle-load, Water-soluble oligomers and polymers like proteins
SterileNo
Binding capacity (proteins)Very low (20 µg / 25 mm)
Effective filtration area*1.9 cm²
Storage temperature15–25 °C / 59–77 °F
Packaging dimensions110 x 110 x 105 mm / 4.33 x 4.33 x 4.13 Inch
Gross weight (incl. packaging)203 g / 0.45 lbs
Hazardous materialNo
Remark*Standardized measurement since Mai 2023. The product has not been modified.
Attribute nameAttribute value
Pack Size100
MediaPVDF
Pore Size0.2um
Diameter15mm
TypeNon-Sterile
