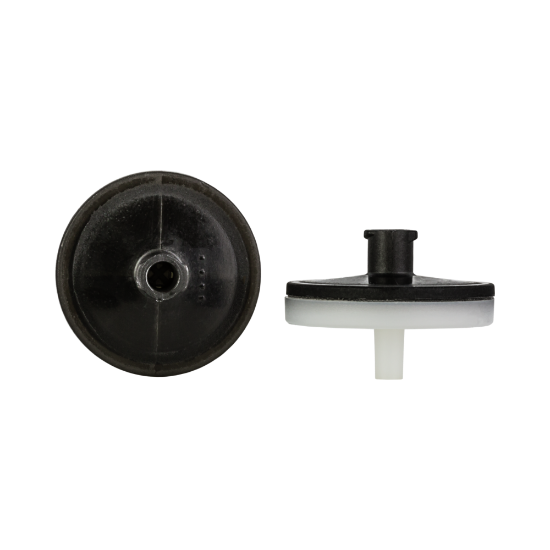

Picture of CHROMAFIL GF/PVDF-45/25 729039

CHROMAFIL GF/PVDF-45/25 729039

CHROMAFIL disposable syringe filters GF/PVDF-45/25 membrane material: glass fibre/polyvinylidene difluoride pore dia.: 1.0/0.45 µm, membrane dia.: 25 mm color code above: black / below: white pack of 100
SKU: 729039
Manufacturer: Machery Nagel
Pack Size: 100

CHROMAFIL disposable syringe filters GF/PVDF-45/25 membrane material: glass fibre/polyvinylidene difluoride pore dia.: 1.0/0.45 µm, membrane dia.: 25 mm color code above: black / below: white pack of 100

Combi syringe filters are recommended for solutions with a high load of particulate matter or for highly viscous solutions. These products combine a coarse glass fiber prefilter and a small-pore polyvinylidene difluoride membrane as main filter. The hydrophilic PVDF membrane is for 100 % aqueous samples, water-soluble oligomers and polymers like proteins. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

Selling unit100 pieces, 400 pieces
MethodFiltration
BrandCHROMAFIL
TypeSyringe filter (combi)
Housing typeWheel-like shaped housing
HardwarePolypropylene (PP) housing with filter membranes
Membrane typeCombi - Glass fiber (GF) / Polyvinylidene difluoride (PVDF)
Membrane propertiesHydrophilic - hydrophilic
Filter type25 mm
Effective membrane diameter*22 mm
Membrane pore size1 µm / 0.45 µm
Code typeColor coded
Color code (top)Black
Color code (bottom)White
InletLuer lock (top)
OutletLuer tip (bottom)
Sample volume5-100 mL
Recommended application(s)HPLC columns packed with particles > 3 µm, GC, SFC, Suitable for 100 % aqueous, polar, hydrophilic samples with low particle-load
SterileNo
Binding capacity (proteins)Moderate–high
Dead volume80 µL
Effective filtration area*3.8 cm²
Storage temperature15–25 °C / 59–77 °F
Hazardous materialNo
Remark*Standardized measurement since Mai 2023. The product has not been modified.
Attribute nameAttribute value
Pack Size100
Pore Size0.45um
Diameter25mm
MediaGlass Fiber
TypeSterile
