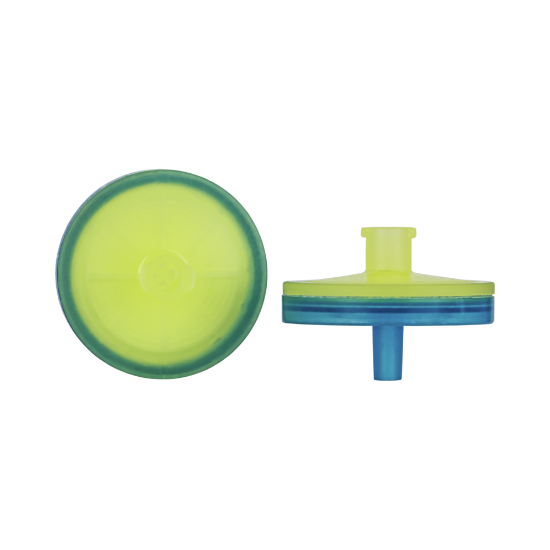

Picture of CHROMAFIL RC-20/25, BIGbox 729030.400

CHROMAFIL RC-20/25, BIGbox 729030.400

CHROMAFIL disposable syringe filters RC-20/25 BIGbox membrane material: regenerated cellulose pore dia.: 0.2 µm, membrane dia.: 25 mm color code above: yellow / below: blue BIGbox of 400
SKU: 729030.400
Manufacturer: Machery Nagel
Pack Size: 400

CHROMAFIL disposable syringe filters RC-20/25 BIGbox membrane material: regenerated cellulose pore dia.: 0.2 µm, membrane dia.: 25 mm color code above: yellow / below: blue BIGbox of 400

Inside the syringe filter a regenerated cellulose is used as membrane material. The hydrophilic RC membrane is suitable for aqueous and organic – aqueous liquids, i.e. polar and medium polar sample solutions and shows a low binding capacity for proteins. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

Selling unit100 pieces, 400 pieces
MethodFiltration
BrandCHROMAFIL
TypeSyringe filter, color coded
Housing typeWheel-like shaped housing
HardwarePolypropylene (PP) housing with filter membrane
Membrane typeRegenerated cellulose (RC)
Membrane propertiesHydrophilic
Filter type25 mm
Effective membrane diameter*22 mm
Membrane pore size0.2 µm
Code typeColor coded
Color code (top)Yellow
Color code (bottom)Blue
InletLuer lock (top)
OutletLuer tip (bottom)
Sample volume5-100 mL
Recommended application(s)Suitable for aqueous, polar, hydrophilic as well as mid-polar samples with low particle-load, Suitable for UHPLC, core-shell and HPLC columns packed with particles < 3 µm, GC, SFC
SterileNo
Binding capacity (proteins)Low (84 µg / 25 mm)
Dead volume80 µL
Effective filtration area*3.8 cm²
Storage temperature15–25 °C / 59–77 °F
Hazardous materialNo
Remark*Standardized measurement since Mai 2023. The product has not been modified.
Attribute nameAttribute value
Pack Size400
MediaRegenerated Cellulose
Pore Size0.2um
Diameter25mm
TypeNon-Sterile
