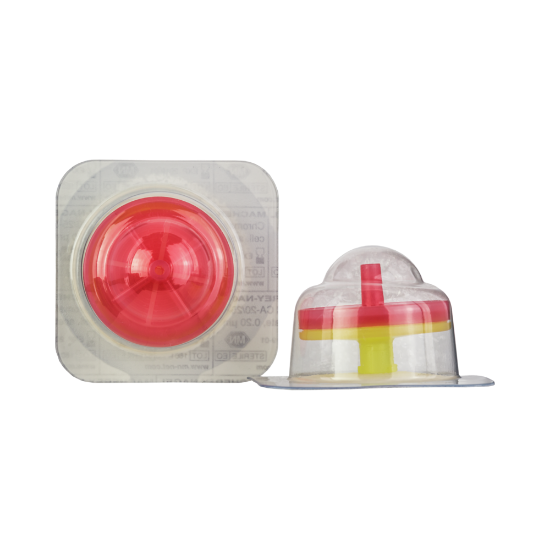

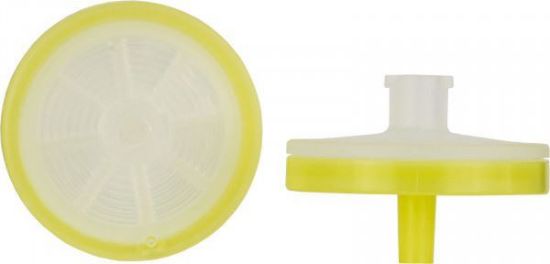

Picture of CHROMAFIL CA-20/25 (S) 729024

CHROMAFIL CA-20/25 (S) 729024

CHROMAFIL disposable syringe filters CA-20/25 (S), steril membrane material: cellulose acetate pore dia.: 0,2 µm, membrane dia.: 25 mm color code above: yellow / below: red filter single sealed pack of 50
SKU: 729024
Manufacturer: Machery Nagel
Pack Size: 50



CHROMAFIL disposable syringe filters CA-20/25 (S), steril membrane material: cellulose acetate pore dia.: 0,2 µm, membrane dia.: 25 mm color code above: yellow / below: red filter single sealed pack of 50

Inside the syringe filter cellulose acetate is used as membrane material. The hydrophilic CA membrane is suitable for filtration of water-soluble oligomers and polymers, especially suited for biological macromolecules with very high shape stability in aqueous solutions. Extremely low binding capacity for proteins. In a sterile package (S) for filtration under sterile conditions (each filter is color coded and individually sealed). All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

MethodFiltration
BrandCHROMAFIL
TypeSyringe filter, sterile
Housing typeWheel-like shaped housing
HardwarePolypropylene (PP) housing with filter membrane
Membrane typeCellulose acetate (CA)
Membrane propertiesHydrophilic
Filter type25 mm
Effective membrane diameter*22 mm
Membrane pore size0.2 µm
Code typeColor coded
Color code (top)Yellow
Color code (bottom)Red
InletLuer lock (top)
OutletLuer tip (bottom)
Sample volume5-100 mL
Recommended application(s)Filtration of water-soluble oligomers and polymers, especially suited for biological macromolecules, Sterile, Suitable for UHPLC, core-shell and HPLC columns packed with particles < 3 µm, GC, SFC
SterileYes
Binding capacity (proteins)Very low (21 µg / 25 mm)
Dead volume80 µL
Effective filtration area*3.8 cm²
Storage temperature15–25 °C / 59–77 °F
Packaging dimensions127 x 162 x 142 mm / 5.00 x 6.38 x 5.59 Inch
Gross weight (incl. packaging)315.2 g / 0.69 lbs
Hazardous materialNo
Remark*Standardized measurement since Mai 2023. The product has not been modified.
Attribute nameAttribute value
Pack Size50
Pore Size0.2um
Diameter25mm
MediaCA/Cellulose Acetate
TypeSterile
